FRP Boardwalk Deck, C-Channel Type (4 in and 6 in Wide)
Pultruded FRP boardwalk deck planks in C-channel form: 6 in wide (41 mm high, 6 mm thick) and 4 in wide (41 mm high, 5 mm thick), in brown. For trails and park walkways. Will not rot or rust.
FRP Boardwalk Deck, C-Channel Type (4 in and 6 in Wide)
The FRP boardwalk deck is a pultruded fiberglass deck plank shaped like a C-channel, made in two widths: 6 inch (41 mm high, 6 mm thick) and 4 inch (41 mm high, 5 mm thick). It is made in isophthalic or general-purpose polyester resin, coloured RAL 8019 grey brown or dark brown, by Hexagon MF Composite Sdn Bhd in Malaysia and supplied by Mui Fatt. It replaces timber deck boards on trails and walkways, where wood rots and is costly to replace.
Ringkasan: Dek laluan pejalan kaki (boardwalk) FRP jenis saluran C, lebar 6 inci (41 mm tinggi, 6 mm tebal) dan 4 inci (41 mm tinggi, 5 mm tebal), warna perang. Tidak reput dan tidak berkarat.
Specifications
| SKU | BWD-C |
|---|---|
| Profile | Boardwalk deck plank in C-channel form |
| 6 in deck | about 152 mm wide x 41 mm high x 6 mm thick |
| 4 in deck | about 102 mm wide x 41 mm high x 5 mm thick |
| Length, 6 in deck | 1,200 mm or 6,000 mm |
| Length, 4 in deck | 6,000 mm; other lengths TBA |
| Weight per metre | TBA |
| Process | Pultrusion, glass fibre reinforced |
| Resin | Isophthalic or general-purpose (GP) polyester |
| Colour | RAL 8019 grey brown or dark brown |
| Made by | Hexagon MF Composite Sdn Bhd, Malaysia |
| Supplied by | Mui Fatt |
Material and Features
- Will not rot: fiberglass does not rot or swell like timber in wet forest and wetland settings
- Rust free: no steel to corrode near rivers and the sea
- Light: planks can be carried along trails by hand, where machines cannot reach
- Low upkeep: colour runs through the resin, so no painting or timber treatment is needed
- Stiff C-channel shape: the down-turned legs stiffen the plank between supports
Where It Is Used

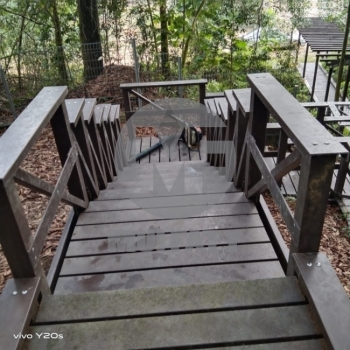

- Forest and nature trail boardwalks
- Park and garden walkways
- Wetland, river and mangrove walks
- Coastal and lakeside paths
- Replacement of rotted timber deck boards
Why an FRP Boardwalk
Timber boardwalks in forests, parks and wetlands rot, need regular treatment and must eventually be replaced. FRP planks keep their shape and strength in the wet, so the walkway lasts with little upkeep. The 6 inch plank gives a wider walking face with fewer joints; the 4 inch plank is lighter and suits narrower paths. Planks are laid across support beams, which can also be made from FRP profiles.
Frequently Asked Questions
Which width should I choose, 4 in or 6 in?
The 6 inch plank (6 mm thick) covers more area per piece and is stiffer. The 4 inch plank (5 mm thick) is lighter. We can advise from your span between supports.
What lengths are available?
The 6 inch plank comes in 1,200 mm or 6,000 mm lengths and the 4 inch plank in 6,000 mm. Other lengths are TBA; ask us.
Does an FRP boardwalk rot like timber?
No. Fiberglass does not rot or rust, and the colour runs through the resin, so it needs no painting or timber treatment.
Can you supply the beams and posts too?
Yes. We supply other FRP profiles, such as C-channels and square tubes, that can replace wood or steel in the frame. Send us your drawing.
Berapa harga dek boardwalk FRP?
Hubungi kami untuk harga terkini. Harga bergantung kepada saiz, panjang dan kuantiti.
