FRP C-Channel CC 64 x 24 mm (2-1/2 x 15/16 in, 3 and 5 mm Walls)
Pultruded FRP C-channel, 64 mm deep x 24 mm flange (2-1/2 x 15/16 in), coded with 3 mm and 5 mm wall thicknesses. A light, slim channel for frames, runners and trims. Rust free, RAL 7035 grey.
FRP C-Channel CC 64 x 24 mm (2-1/2 x 15/16 in, 3 and 5 mm Walls)

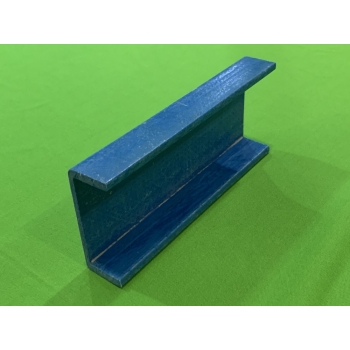

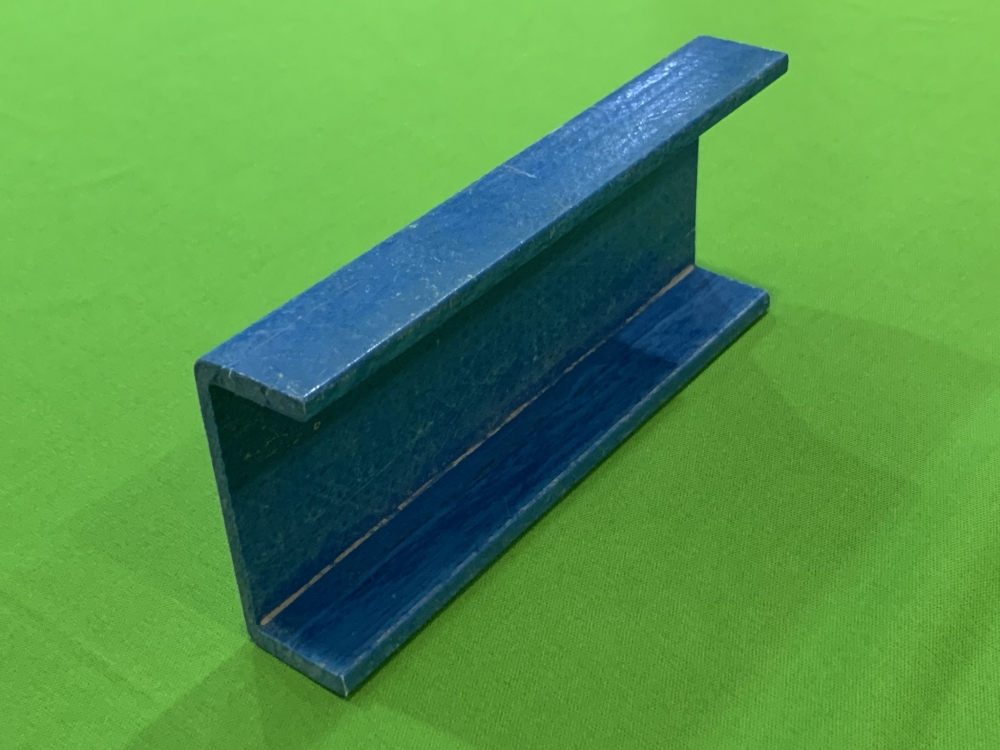

The CC 64 x 24 x 3 and 5 is a pultruded fiberglass (FRP) C-channel (also called U-channel): depth x flange width 64 x 24 mm (2-1/2 x 15/16 in); thickness 3 and 5 mm. It is a slim channel with a narrow 24 mm flange, coded with two wall thicknesses (3 mm and 5 mm). It is made in Malaysia by Hexagon MF Composite Sdn Bhd, Mui Fatt's pultrusion sister company, in isophthalic polyester resin with a surface veil, in RAL 7035 light grey, and supplied by Mui Fatt.
Ringkasan: Saluran C FRP 64 x 24 mm (2-1/2 x 15/16 inci), ketebalan 3 mm dan 5 mm, untuk rangka ringan, pelari dan kemasan. Tidak berkarat.
Specifications
| Model code | CC-64 x 24 x 3 and 5 |
|---|---|
| SKU | CC64-5 |
| Profile | C-channel (also called U-channel) |
| Depth x flange width | 64 x 24 mm (2-1/2 x 15/16 in) |
| Thickness | 3 and 5 mm |
| Standard length | TBA (cut to length on request) |
| Weight per metre | TBA |
| Process | Pultrusion: E-glass rovings and mat with a surface veil |
| Resin | Isophthalic polyester (standard); vinyl ester on request |
| Fire-retardant option | Fire-retardant resin to ASTM E84 on request |
| Colour | RAL 7035 light grey; other colours on request |
| Made by | Hexagon MF Composite Sdn Bhd, Malaysia |
| Supplied by | Mui Fatt |
Material and Features
- Rust free: does not corrode in water, salt air or most chemicals
- Non-conductive: does not conduct electricity, safer near cables and electrical plant
- Light: much lighter than steel, so it is easy to carry and fit by hand
- Surface veil: keeps glass fibres below the surface and improves UV and corrosion resistance
- Easy to work: cut and drilled with standard power tools; seal cut edges with resin
Where It Is Used
- Runners and guides
- Light frames and edge trims
- Panel and cover stiffeners
- Small supports in wet areas
Choosing This Size
This channel's catalogue code (64 x 24 x 3 x 5) lists two thicknesses, 3 mm and 5 mm, for different parts of the section. Which part is 3 mm and which is 5 mm is to be confirmed (TBA), so please check the drawing with us before you design around it. The slim 24 mm flange suits runners, guides and trims where a 2C channel is too wide.
Frequently Asked Questions
Is this channel 3 mm or 5 mm thick?
The catalogue code lists both, 3 mm and 5 mm, for different parts of the section. The exact split is TBA; ask us for the drawing.
How does it differ from the 2C 50.8 x 25.4 channel?
It is deeper (64 mm against 50.8 mm) with a slightly narrower 24 mm flange.
Can it be cut and drilled on site?
Yes, with standard power tools. Wear a dust mask and seal cut edges and holes with resin to protect the fibres.
What length can I order?
The standard stock length is TBA. Tell us the length and quantity you need and we will confirm; we can also cut profiles to size.
Berapa harga saluran C FRP CC 64 x 24 x 3 and 5?
Hubungi kami untuk harga terkini. Harga bergantung kepada saiz, panjang dan kuantiti.
