FRP C-Channel 6C CC 152.4 x 41.28 x 9 mm (6 x 1-5/8 in, 9 mm Thick)
Heavy pultruded FRP C-channel 6C, 152.4 mm deep x 41.3 mm flange (6 x 1-5/8 in), 9 mm thick. The thickest 6 inch channel we list, for loaded beams and joints with many bolts. Rust free, RAL 7035 grey.
FRP C-Channel 6C CC 152.4 x 41.28 x 9 mm (6 x 1-5/8 in, 9 mm Thick)

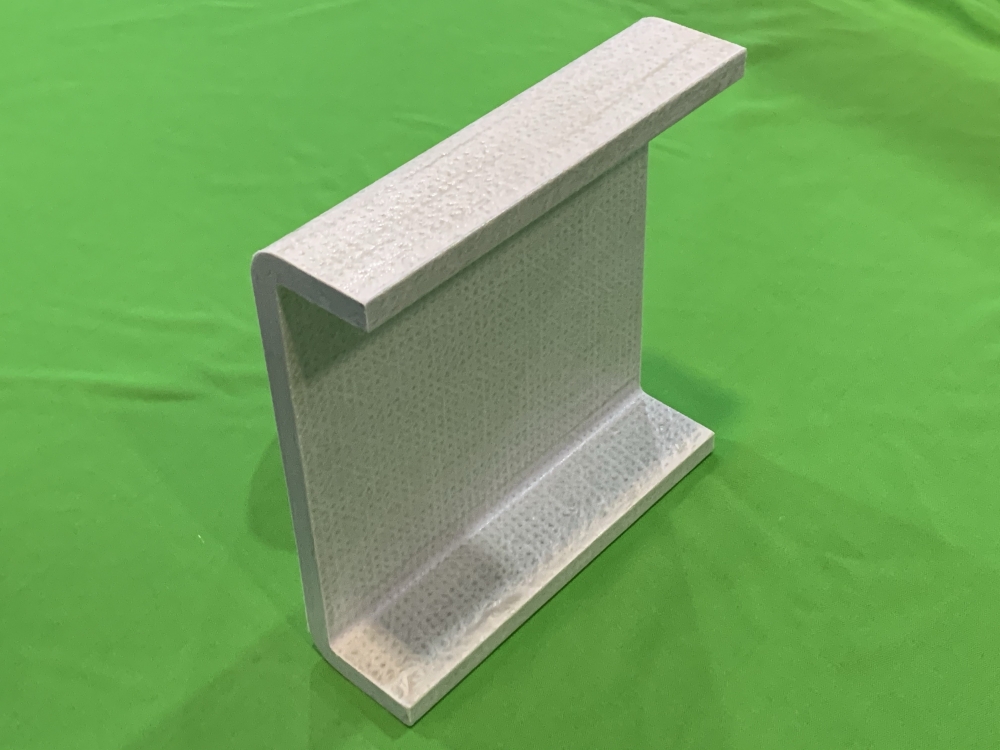

The CC 152.4 x 41.28 x 9 is a pultruded fiberglass (FRP) C-channel (also called U-channel): depth x flange width 152.4 x 41.28 mm (6 x 1-5/8 in); thickness 9 mm. Its 9 mm wall makes it the heavy-duty member of the 6C family. It is made in Malaysia by Hexagon MF Composite Sdn Bhd, Mui Fatt's pultrusion sister company, in isophthalic polyester resin with a surface veil, in RAL 7035 light grey, and supplied by Mui Fatt.
Ringkasan: Saluran C FRP 6C tebal 9 mm, 152.4 x 41.3 mm (6 x 1-5/8 inci), untuk rasuk berbeban dan sambungan bolt yang banyak. Tidak berkarat.
Specifications
| Model code | CC-152.4 x 41.28 x 9 |
|---|---|
| SKU | CC6-9 |
| Profile | C-channel (also called U-channel) |
| Depth x flange width | 152.4 x 41.28 mm (6 x 1-5/8 in) |
| Thickness | 9 mm |
| Standard length | TBA (cut to length on request) |
| Weight per metre | TBA |
| Process | Pultrusion: E-glass rovings and mat with a surface veil |
| Resin | Isophthalic polyester (standard); vinyl ester on request |
| Fire-retardant option | Fire-retardant resin to ASTM E84 on request |
| Colour | RAL 7035 light grey; other colours on request |
| Made by | Hexagon MF Composite Sdn Bhd, Malaysia |
| Supplied by | Mui Fatt |
Material and Features
- Rust free: does not corrode in water, salt air or most chemicals
- Non-conductive: does not conduct electricity, safer near cables and electrical plant
- Light: much lighter than steel, so it is easy to carry and fit by hand
- Surface veil: keeps glass fibres below the surface and improves UV and corrosion resistance
- Easy to work: cut and drilled with standard power tools; seal cut edges with resin
Where It Is Used
- Beams under pumps, motors and equipment
- Heavily loaded platform beams
- Frames with many bolted connections
- Supports in chemical and wastewater plants
- Edge beams on large openings
Choosing This Size
With a 9 mm wall, this 6C channel carries more load and holds bolts better than the 4.76 and 6.35 mm versions of the same outline. Use it for beams under equipment, heavily loaded platforms and frames with many bolted joints.
Frequently Asked Questions
When do I need the 9 mm 6C channel?
When the 6.35 mm version is not enough for the load or span, or when a joint has many bolts close together.
Does the 9 mm channel fit the same brackets?
The outside depth and flange are the same as the other 6C channels (152.4 x 41.3 mm), but the inside is smaller. Check inside fittings with us.
What length can I order?
The standard stock length is TBA. Tell us the length and quantity you need and we will confirm; we can also cut profiles to size.
Is a fire-retardant version available?
Yes. Profiles in fire-retardant resin to ASTM E84 are made on request. Vinyl ester resin is also available on request for stronger chemicals.
Berapa harga saluran C FRP CC 152.4 x 41.28 x 9?
Hubungi kami untuk harga terkini. Harga bergantung kepada saiz, panjang dan kuantiti.
