FRP C-Channel 5C CC 139.7 x 38.1 x 6.35 mm (5-1/2 x 1-1/2 in, 6.35 mm Thick)
Pultruded FRP C-channel 5C, 139.7 mm deep x 38.1 mm flange (5-1/2 x 1-1/2 in), 6.35 mm thick. A mid-depth channel for platform beams, frames and stringers. Rust free, RAL 7035 grey.
FRP C-Channel 5C CC 139.7 x 38.1 x 6.35 mm (5-1/2 x 1-1/2 in, 6.35 mm Thick)

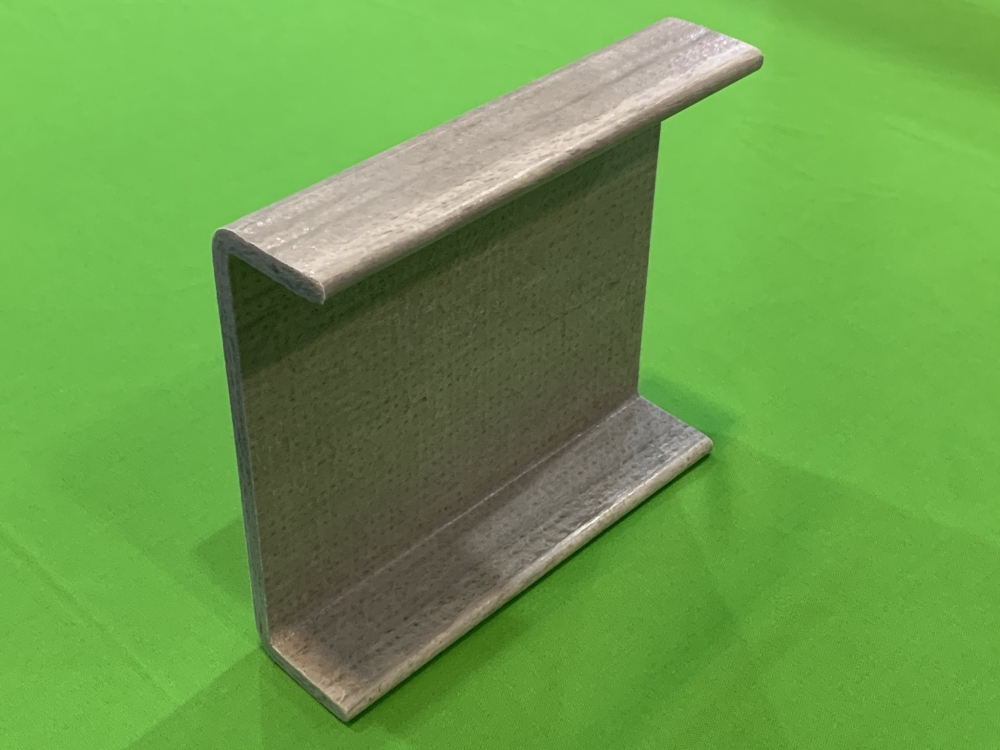

The CC 139.7 x 38.1 x 6.35 is a pultruded fiberglass (FRP) C-channel (also called U-channel): depth x flange width 139.7 x 38.1 mm (5-1/2 x 1-1/2 in); thickness 6.35 mm (1/4 in). It is a mid-depth channel, 5-1/2 inches deep, between the 4C and 6C sizes. It is made in Malaysia by Hexagon MF Composite Sdn Bhd, Mui Fatt's pultrusion sister company, in isophthalic polyester resin with a surface veil, in RAL 7035 light grey, and supplied by Mui Fatt.
Ringkasan: Saluran C FRP 5C, 139.7 x 38.1 mm (5-1/2 x 1-1/2 inci), tebal 6.35 mm, untuk rasuk platform, rangka dan rasuk tangga. Tidak berkarat.
Specifications
| Model code | CC-139.7 x 38.1 x 6.35 |
|---|---|
| SKU | CC5-6 |
| Profile | C-channel (also called U-channel) |
| Depth x flange width | 139.7 x 38.1 mm (5-1/2 x 1-1/2 in) |
| Thickness | 6.35 mm (1/4 in) |
| Standard length | TBA (cut to length on request) |
| Weight per metre | TBA |
| Process | Pultrusion: E-glass rovings and mat with a surface veil |
| Resin | Isophthalic polyester (standard); vinyl ester on request |
| Fire-retardant option | Fire-retardant resin to ASTM E84 on request |
| Colour | RAL 7035 light grey; other colours on request |
| Made by | Hexagon MF Composite Sdn Bhd, Malaysia |
| Supplied by | Mui Fatt |
Material and Features
- Rust free: does not corrode in water, salt air or most chemicals
- Non-conductive: does not conduct electricity, safer near cables and electrical plant
- Light: much lighter than steel, so it is easy to carry and fit by hand
- Surface veil: keeps glass fibres below the surface and improves UV and corrosion resistance
- Easy to work: cut and drilled with standard power tools; seal cut edges with resin
Where It Is Used
- Walkway and platform beams
- Stair stringers
- Frames for tank tops and access hatches
- Supports for cable ladders and pipe racks
- Members in cooling tower structures
Choosing This Size
Although it is called 5C, this channel is 139.7 mm (5-1/2 in) deep. It gives a longer span than the 4C channels while staying lighter than the 6C sizes, which suits walkway beams and stair stringers.
Frequently Asked Questions
Is the 5C channel 5 inches deep?
It is 139.7 mm, which is 5-1/2 inches. The 5C name is nominal.
5C or 6C?
The 6C channels are deeper (152.4 mm) and come in three thicknesses. Choose 5C when space is limited or loads are moderate.
What colour is it?
RAL 7035 light grey as standard. Other colours are made on request, subject to quantity.
Can you fabricate it into frames or supports?
Yes. We can cut and fabricate profiles into frames, supports and handrails. Send us a drawing or sketch.
Berapa harga saluran C FRP CC 139.7 x 38.1 x 6.35?
Hubungi kami untuk harga terkini. Harga bergantung kepada saiz, panjang dan kuantiti.
