FRP C-Channel 4C CC 101.6 x 28.58 x 6.35 mm (4 x 1-1/8 in, 6.35 mm Thick)
Pultruded FRP C-channel 4C, 101.6 mm deep x 28.6 mm flange (4 x 1-1/8 in), 6.35 mm (1/4 in) thick. The heavier 4 inch channel, for beams, frames and stair stringers. Rust free, RAL 7035 grey.
FRP C-Channel 4C CC 101.6 x 28.58 x 6.35 mm (4 x 1-1/8 in, 6.35 mm Thick)

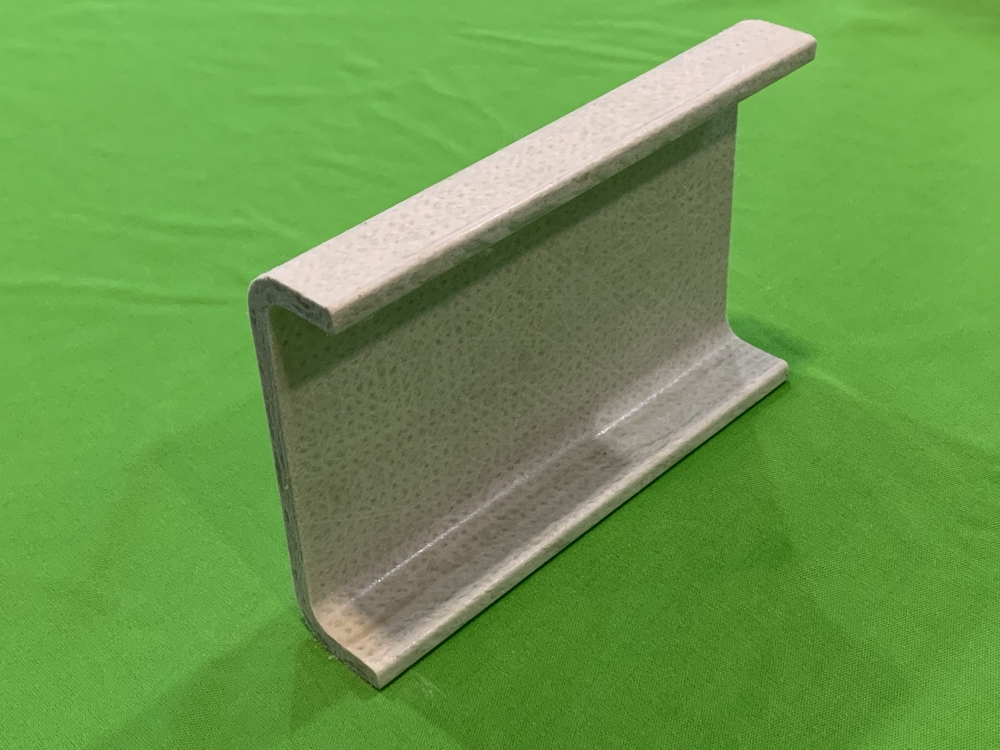

The CC 101.6 x 28.58 x 6.35 is a pultruded fiberglass (FRP) C-channel (also called U-channel): depth x flange width 101.6 x 28.58 mm (4 x 1-1/8 in); thickness 6.35 mm (1/4 in). It is the heavier of the two 4 inch channels, with a 1/4 inch wall and a narrower flange. It is made in Malaysia by Hexagon MF Composite Sdn Bhd, Mui Fatt's pultrusion sister company, in isophthalic polyester resin with a surface veil, in RAL 7035 light grey, and supplied by Mui Fatt.
Ringkasan: Saluran C FRP 4C, 101.6 x 28.6 mm (4 x 1-1/8 inci), tebal 6.35 mm, untuk rasuk, rangka dan rasuk tangga. Tidak berkarat.
Specifications
| Model code | CC-101.6 x 28.58 x 6.35 |
|---|---|
| SKU | CC4-6 |
| Profile | C-channel (also called U-channel) |
| Depth x flange width | 101.6 x 28.58 mm (4 x 1-1/8 in) |
| Thickness | 6.35 mm (1/4 in) |
| Standard length | TBA (cut to length on request) |
| Weight per metre | TBA |
| Process | Pultrusion: E-glass rovings and mat with a surface veil |
| Resin | Isophthalic polyester (standard); vinyl ester on request |
| Fire-retardant option | Fire-retardant resin to ASTM E84 on request |
| Colour | RAL 7035 light grey; other colours on request |
| Made by | Hexagon MF Composite Sdn Bhd, Malaysia |
| Supplied by | Mui Fatt |
Material and Features
- Rust free: does not corrode in water, salt air or most chemicals
- Non-conductive: does not conduct electricity, safer near cables and electrical plant
- Light: much lighter than steel, so it is easy to carry and fit by hand
- Surface veil: keeps glass fibres below the surface and improves UV and corrosion resistance
- Easy to work: cut and drilled with standard power tools; seal cut edges with resin
Where It Is Used
- Beams for small platforms and landings
- Stair stringers
- Frames that carry bolts at close spacing
- Supports for pumps and small equipment
- Framing in wastewater and chemical plants
Choosing This Size
The 6.35 mm wall makes this channel stronger and better at holding bolts than the 4.76 mm 4C. The flange is narrower (28.6 mm), so it fits where space is tight, for example as a stair stringer or a frame member against a wall.
Frequently Asked Questions
How does this differ from the other 4C channel?
Same 101.6 mm depth, but this one is 6.35 mm thick with a 28.6 mm flange; the other is 4.76 mm thick with a 41.3 mm flange.
Can it be used as a stair stringer?
Yes, 4 inch FRP channels are used as stringers for short FRP stairs. Send us the rise and going and we will advise.
Why use FRP instead of steel?
FRP is much lighter than steel, does not rust, does not conduct electricity and resists many chemicals and salt air, so it needs little maintenance in wet or corrosive sites.
What colour is it?
RAL 7035 light grey as standard. Other colours are made on request, subject to quantity.
Berapa harga saluran C FRP CC 101.6 x 28.58 x 6.35?
Hubungi kami untuk harga terkini. Harga bergantung kepada saiz, panjang dan kuantiti.
Related Sizes and Products
Nearest sizes and related items: 4C, 101.6 x 41.3 x 4.76 →, 5C, 139.7 x 38.1 x 6.35 →.
See every size in FRP C-Channels →.
