FRP C-Channel 8C CC 203.2 x 55.56 x 9.53 mm (8 x 2-3/16 in, 9.53 mm Thick)
Heavy pultruded FRP C-channel 8C, 203.2 mm deep x 55.6 mm flange (8 x 2-3/16 in), 9.53 mm (3/8 in) thick. The strongest C-channel we list, for main beams and heavy frames. Rust free, RAL 7035 grey.
FRP C-Channel 8C CC 203.2 x 55.56 x 9.53 mm (8 x 2-3/16 in, 9.53 mm Thick)

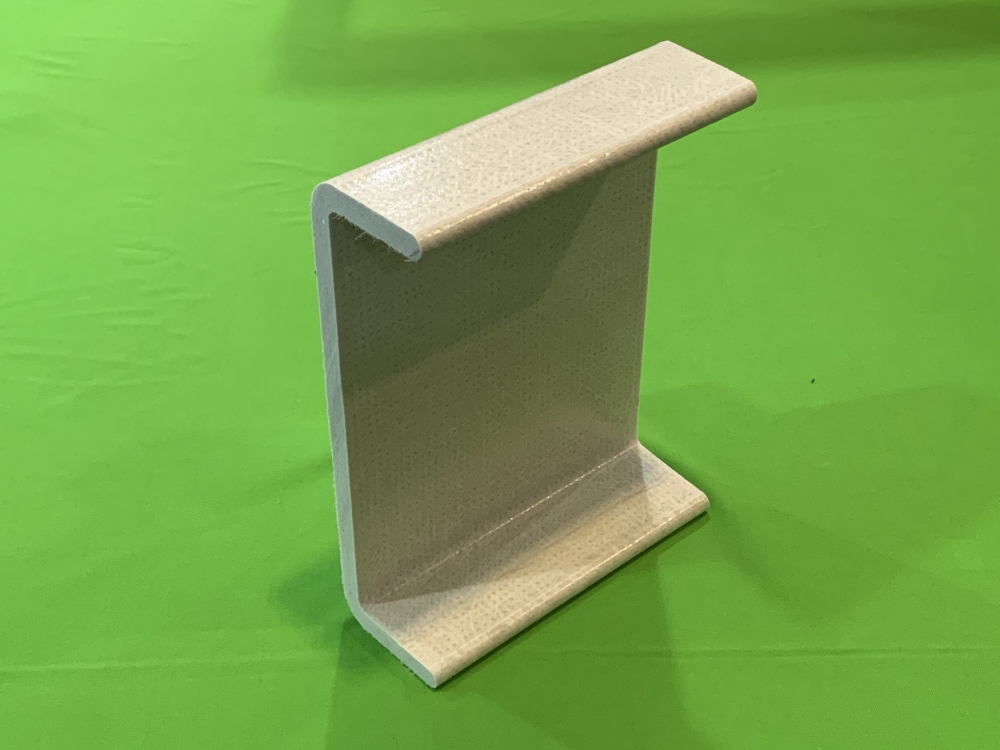

The CC 203.2 x 55.56 x 9.53 is a pultruded fiberglass (FRP) C-channel (also called U-channel): depth x flange width 203.2 x 55.56 mm (8 x 2-3/16 in); thickness 9.53 mm (3/8 in). With an 8 inch depth and a 3/8 inch wall, it is the strongest C-channel in our list. It is made in Malaysia by Hexagon MF Composite Sdn Bhd, Mui Fatt's pultrusion sister company, in isophthalic polyester resin with a surface veil, in RAL 7035 light grey, and supplied by Mui Fatt.
Ringkasan: Saluran C FRP 8C tebal 9.53 mm, 203.2 x 55.6 mm (8 x 2-3/16 inci), saluran paling kuat dalam senarai kami, untuk rasuk utama. Tidak berkarat.
Specifications
| Model code | CC-203.2 x 55.56 x 9.53 |
|---|---|
| SKU | CC8-9 |
| Profile | C-channel (also called U-channel) |
| Depth x flange width | 203.2 x 55.56 mm (8 x 2-3/16 in) |
| Thickness | 9.53 mm (3/8 in) |
| Standard length | TBA (cut to length on request) |
| Weight per metre | TBA |
| Process | Pultrusion: E-glass rovings and mat with a surface veil |
| Resin | Isophthalic polyester (standard); vinyl ester on request |
| Fire-retardant option | Fire-retardant resin to ASTM E84 on request |
| Colour | RAL 7035 light grey; other colours on request |
| Made by | Hexagon MF Composite Sdn Bhd, Malaysia |
| Supplied by | Mui Fatt |
Material and Features
- Rust free: does not corrode in water, salt air or most chemicals
- Non-conductive: does not conduct electricity, safer near cables and electrical plant
- Light: much lighter than steel, so it is easy to carry and fit by hand
- Surface veil: keeps glass fibres below the surface and improves UV and corrosion resistance
- Easy to work: cut and drilled with standard power tools; seal cut edges with resin
Where It Is Used
- Main beams carrying secondary beams
- Beams under equipment and tanks
- Long-span walkway and bridge frames
- Heavy pipe rack beams
- Structures in chemical, marine and wastewater sites
Choosing This Size
This is the heaviest channel in the range: the deepest section with the thickest wall. It suits main beams that carry other beams, equipment loads, and long spans where the 6.35 mm 8C is not enough.
Frequently Asked Questions
Is this the strongest FRP channel you supply?
It is the strongest C-channel we list: 203.2 mm deep and 9.53 mm thick. For heavier members, see the FRP I-beams or ask us.
C-channel or I-beam for a main beam?
An I-beam is symmetrical and resists twisting better on its own; a C-channel is easier to bolt flat against other members. We can advise from your layout.
What colour is it?
RAL 7035 light grey as standard. Other colours are made on request, subject to quantity.
Can you fabricate it into frames or supports?
Yes. We can cut and fabricate profiles into frames, supports and handrails. Send us a drawing or sketch.
Berapa harga saluran C FRP CC 203.2 x 55.56 x 9.53?
Hubungi kami untuk harga terkini. Harga bergantung kepada saiz, panjang dan kuantiti.
Related Sizes and Products
Nearest sizes and related items: 8C, 6.35 mm →, FRP I-beam 6 x 3 in →.
See every size in FRP C-Channels →.
