FRP I-Beam IB 152.4 x 76.2 x 6.35 mm (6 x 3 in)
Pultruded FRP I-beam, 152.4 mm deep x 76.2 mm flange (6 x 3 in), 6.35 mm thick. Our larger I-beam, for main beams on platforms, walkways and stairs in corrosive and offshore sites. Rust free, RAL 7035 grey.
FRP I-Beam IB 152.4 x 76.2 x 6.35 mm (6 x 3 in)

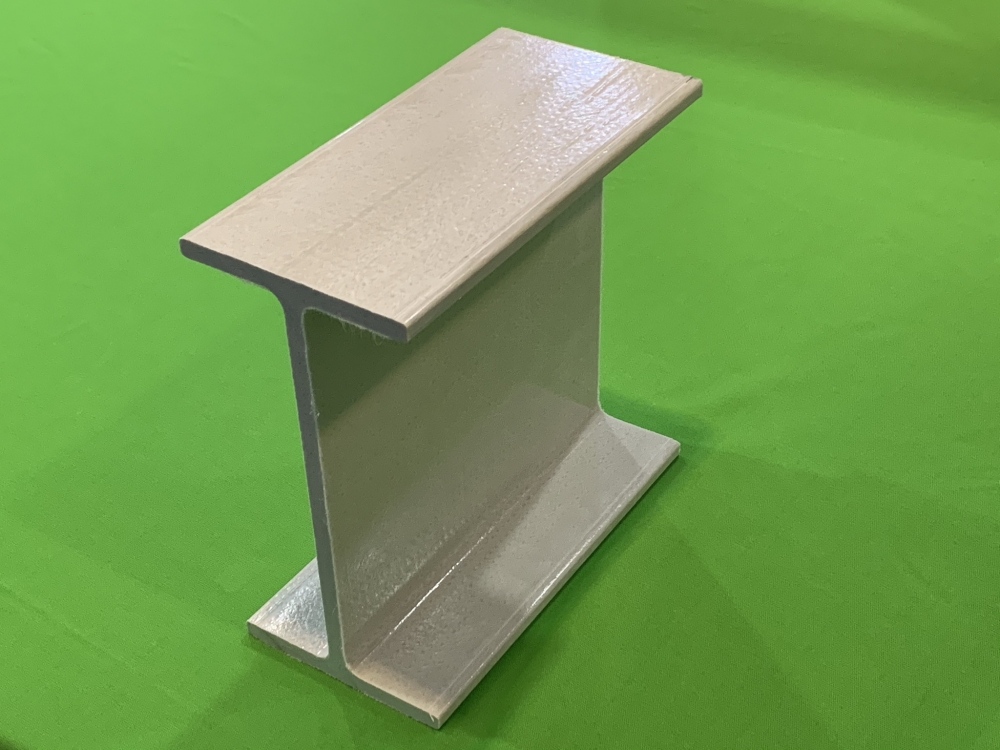

The IB 152.4 x 76.2 x 6.35 is a pultruded fiberglass (FRP) I-beam: depth x flange width 152.4 x 76.2 mm (6 x 3 in); thickness 6.35 mm (1/4 in). It is the larger of our two I-beams, used as a main beam for platforms and walkways. It is made in Malaysia by Hexagon MF Composite Sdn Bhd, Mui Fatt's pultrusion sister company, in isophthalic polyester resin with a surface veil, in RAL 7035 light grey, and supplied by Mui Fatt.
Ringkasan: Rasuk I FRP 152.4 x 76.2 mm (6 x 3 inci), tebal 6.35 mm, untuk rasuk utama platform dan laluan pejalan kaki. Ringan dan tidak berkarat.
Specifications
| Model code | IB - 152.4 x 76.2 x 6.35 |
|---|---|
| SKU | IB6X3 |
| Profile | I-beam |
| Depth x flange width | 152.4 x 76.2 mm (6 x 3 in) |
| Thickness | 6.35 mm (1/4 in) |
| Standard length | TBA (cut to length on request) |
| Weight per metre | TBA |
| Process | Pultrusion: E-glass rovings and mat with a surface veil |
| Resin | Isophthalic polyester (standard); vinyl ester on request |
| Fire-retardant option | Fire-retardant resin to ASTM E84 on request |
| Colour | RAL 7035 light grey; other colours on request |
| Made by | Hexagon MF Composite Sdn Bhd, Malaysia |
| Supplied by | Mui Fatt |
Material and Features
- Rust free: does not corrode in water, salt air or most chemicals
- Non-conductive: does not conduct electricity, safer near cables and electrical plant
- Light: much lighter than steel, so it is easy to carry and fit by hand
- Surface veil: keeps glass fibres below the surface and improves UV and corrosion resistance
- Easy to work: cut and drilled with standard power tools; seal cut edges with resin
Where It Is Used
- Main beams for FRP platforms and walkways
- Stair and landing frames
- Offshore and oil and gas access structures
- Beams over tanks, pits and channels
- Pipe racks in corrosive areas
Choosing This Size
The 6 x 3 in beam has a wide 76.2 mm flange that gives good bearing for grating and secondary beams, and its depth allows longer spans than the 4 x 2 in beam. It is a common main beam for FRP platforms.
Frequently Asked Questions
What span can this I-beam cover?
It depends on the load, deflection limit and fixing. Send us the span and use and we will check the size.
Can secondary beams be bolted to it?
Yes, usually with FRP angle cleats and stainless steel bolts through the web.
What length can I order?
The standard stock length is TBA. Tell us the length and quantity you need and we will confirm; we can also cut profiles to size.
Is a fire-retardant version available?
Yes. Profiles in fire-retardant resin to ASTM E84 are made on request. Vinyl ester resin is also available on request for stronger chemicals.
Berapa harga rasuk I FRP IB 152.4 x 76.2 x 6.35?
Hubungi kami untuk harga terkini. Harga bergantung kepada saiz, panjang dan kuantiti.
