FRP I-Beam IB 101.6 x 50.8 x 6.35 mm (4 x 2 in)
Pultruded FRP I-beam, 101.6 mm deep x 50.8 mm flange (4 x 2 in), 6.35 mm thick. A compact beam for platform, walkway and stair supports in corrosive and offshore sites. Rust free, RAL 7035 grey.
FRP I-Beam IB 101.6 x 50.8 x 6.35 mm (4 x 2 in)

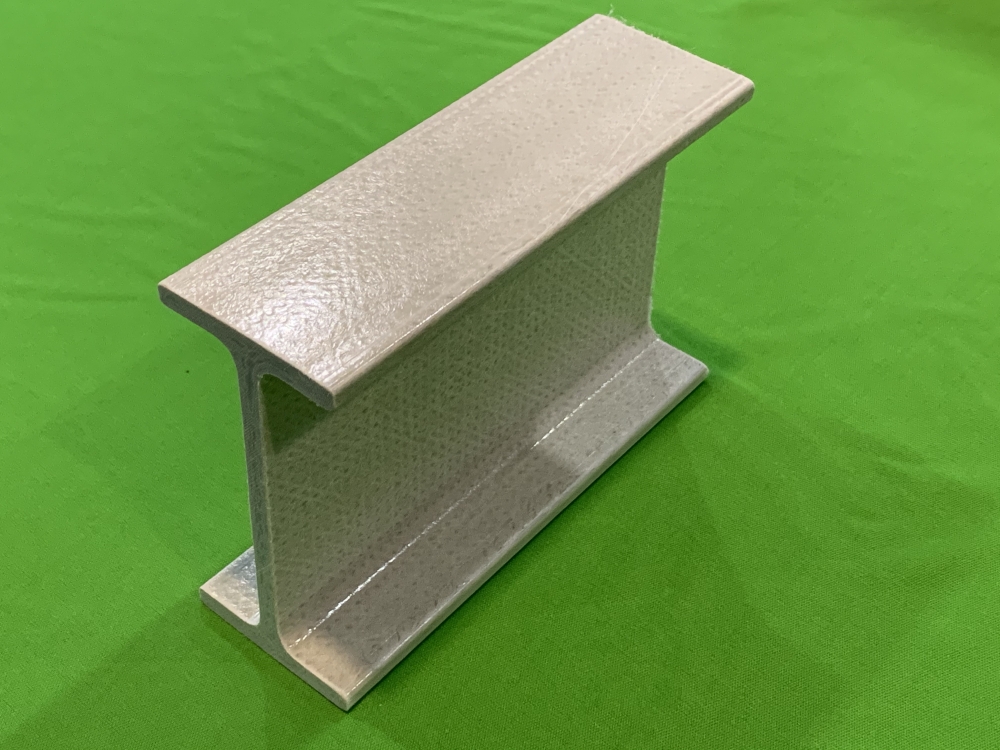

The IB 101.6 x 50.8 x 6.35 is a pultruded fiberglass (FRP) I-beam: depth x flange width 101.6 x 50.8 mm (4 x 2 in); thickness 6.35 mm (1/4 in). It is the smaller of our two I-beams, a compact beam for platforms, walkways and stairs. It is made in Malaysia by Hexagon MF Composite Sdn Bhd, Mui Fatt's pultrusion sister company, in isophthalic polyester resin with a surface veil, in RAL 7035 light grey, and supplied by Mui Fatt.
Ringkasan: Rasuk I FRP 101.6 x 50.8 mm (4 x 2 inci), tebal 6.35 mm, untuk penyokong platform, laluan dan tangga, termasuk luar pesisir. Tidak berkarat.
Specifications
| Model code | IB - 101.6 x 50.8 x 6.35 |
|---|---|
| SKU | IB4X2 |
| Profile | I-beam |
| Depth x flange width | 101.6 x 50.8 mm (4 x 2 in) |
| Thickness | 6.35 mm (1/4 in) |
| Standard length | TBA (cut to length on request) |
| Weight per metre | TBA |
| Process | Pultrusion: E-glass rovings and mat with a surface veil |
| Resin | Isophthalic polyester (standard); vinyl ester on request |
| Fire-retardant option | Fire-retardant resin to ASTM E84 on request |
| Colour | RAL 7035 light grey; other colours on request |
| Made by | Hexagon MF Composite Sdn Bhd, Malaysia |
| Supplied by | Mui Fatt |
Material and Features

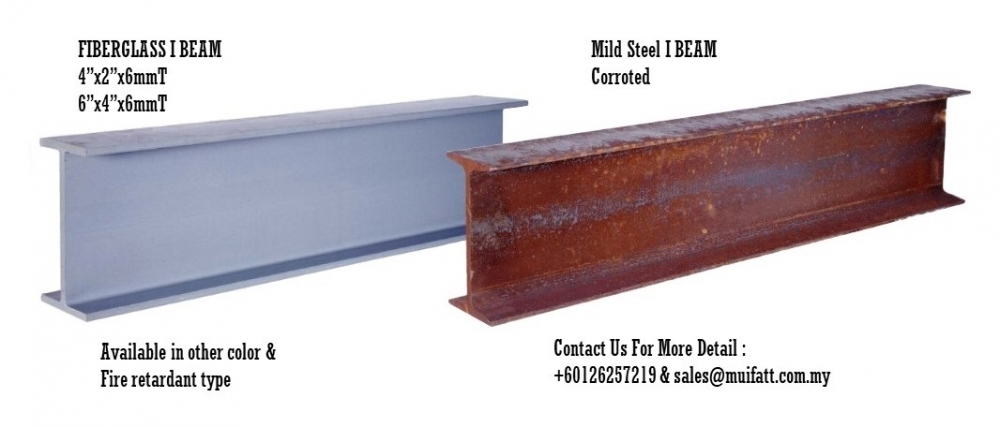

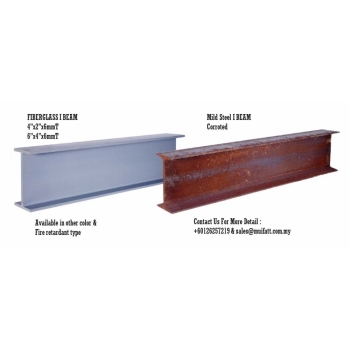

- Rust free: does not corrode in water, salt air or most chemicals
- Non-conductive: does not conduct electricity, safer near cables and electrical plant
- Light: much lighter than steel, so it is easy to carry and fit by hand
- Surface veil: keeps glass fibres below the surface and improves UV and corrosion resistance
- Easy to work: cut and drilled with standard power tools; seal cut edges with resin
Where It Is Used
- Joists and short beams under FRP grating
- Walkway and stair supports
- Platforms in offshore and oil and gas areas
- Equipment support frames
- Pipe and cable rack beams
Choosing This Size
An I-beam carries load evenly on both sides of its web and resists twisting better than a single channel, so the 4 x 2 in beam is a tidy choice for short platform and walkway beams and for joists under grating.
Frequently Asked Questions
Is the thickness 6.35 mm or 6 mm?
The page lists 6.35 mm (1/4 in). One factory drawing shows 6.00 mm for this beam, so please confirm the exact thickness with us for design work.
4 x 2 in or 6 x 3 in I-beam?
The 6 x 3 in beam is deeper and wider for longer spans. The 4 x 2 in is lighter and suits short spans.
Can it be cut and drilled on site?
Yes, with standard power tools. Wear a dust mask and seal cut edges and holes with resin to protect the fibres.
What length can I order?
The standard stock length is TBA. Tell us the length and quantity you need and we will confirm; we can also cut profiles to size.
Berapa harga rasuk I FRP IB 101.6 x 50.8 x 6.35?
Hubungi kami untuk harga terkini. Harga bergantung kepada saiz, panjang dan kuantiti.
