MuiGrate Pultruded FRP Grating
MuiGrate Pultruded FRP Grating in Malaysia
MuiGrate pultruded FRP grating is an open bar grating made from pultruded fiberglass bars with a surfacing veil, about 65% glass, for walkways, platforms, drain and trench covers and sump covers. The bars are strong in one direction, so the grating carries more load over longer spans than moulded grating of the same depth. Depths are 25, 38 and 50 mm. MuiGrate pultruded open bar gratings carry a SIRIM product certificate to BS 4592 Part 4. This range is part of our FRP Gratings →.
Models
| Model | Depth | Open area | Weight |
|---|---|---|---|
| ML25-25 | 25 mm | 60% | 8.1 kg/m² |
| MFG25-25 | 25 mm | 60% | 11.7 kg/m² |
| MFG38-25 | 38 mm | 58% | 17.0 kg/m² |
| MFG50-25 | 50 mm | 50% | 17.4 kg/m² |
Panel widths 914, 1,220 and 1,524 mm; lengths 2,438, 3,048, 5,486 and 6,096 mm. Load tables to BS 4592 Part 4 are in the MuiGrate technical specification.
Products
- FRP Pultruded Grating →
- Fiberglass Walkway Grating Cover →
- Fiberglass Bar Screen →

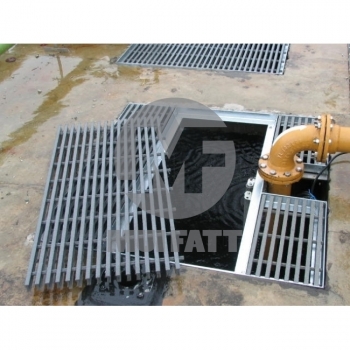

- Fiberglass Tank Sump Cover →
Options
- Resin: isophthalic, vinyl ester or fire-retardant
- Colour: grey, yellow or green
- Surface: gritted, or covered with 3 mm chequered plate
- Frames: FRP, mild steel or hot-dip galvanised, with mild steel, stainless steel or aluminium hinges
- Covers: up to 3.0 m long and 1.2 to 1.5 m wide per leaf; double leaf above that
For covers with frames, see FRP manhole and sump covers →. For two-way panels, see MuiGrate moulded FRP grating →.
Frequently Asked Questions
Is MuiGrate pultruded grating SIRIM certified?
Yes. MuiGrate pultruded open bar gratings carry a SIRIM product certificate to BS 4592 Part 4.
Pultruded or moulded grating?
Pultruded grating is stronger along the bars and suits longer spans. Moulded grating is equally strong both ways and resists chemicals well.
Can it take vehicles?
Standard gratings are designed for pedestrian loads to BS 4592. Ask us for heavier loads.
Ringkasan: Jeriji FRP pultrusi MuiGrate, kedalaman 25, 38 dan 50 mm, dengan sijil SIRIM mengikut BS 4592 Bahagian 4.
