MuiGrate FRP Tank Sump Cover, Grating or Chequered Plate (Made to Size)

MuiGrate FRP sump cover for tanks, pump sumps and pits, in open pultruded grating or solid chequered plate, with FRP or mild steel frame and hinges. Made to your opening, SIRIM certificate available.

SKU :

MG1001

Quantity :

Send Whatapps

PDF download :

Download PDF

MuiGrate FRP Tank Sump Cover, Grating or Chequered Plate (Made to Size)

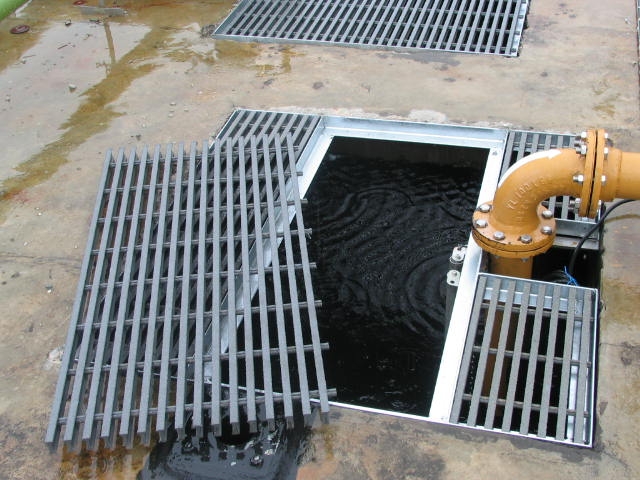

The MuiGrate FRP tank sump cover closes the sumps and pits of water tanks, pump stations and treatment plants. It is made from pultruded FRP (fibreglass) grating, or chequered plate supported by grating, in an FRP or mild steel frame, to the size of your opening.

Open grating lets air and water through; chequered plate gives a solid anti-slip top and helps keep odours in. A SIRIM certificate is available for these covers on request.

Ringkasan: Penutup sump FRP MuiGrate untuk tangki, sump pam dan lubang, jenis jeriji atau plat berbunga, bingkai FRP atau keluli lembut. Dibuat ikut saiz. Sijil SIRIM boleh diberi.

Specifications

Type	Sump cover: pultruded grating or chequered plate
Grating heights	25 mm (1 in), 38 mm (1.5 in) or 50 mm (2 in)
Resin	Isophthalic polyester, vinyl ester or fire-retardant
Colour	Grey (standard), yellow, green; others on request
Frame	FRP or mild steel (galvanised on request)
Hinges	Aluminium, mild steel, SS304 or SS316
Single leaf	Up to 1,200 x 1,200 mm; double leaf above that
Round covers	Up to 2,000 mm diameter
Load use	Pedestrian traffic only (BS 4592)
SIRIM	Certificate available on request
Made by	Y.T. Fibreglass Industries Sdn Bhd, Port Klang

How to Size a Cover

Give the clear opening of the pit as width x length (W x L); for round covers, the diameter.
The cover is made at least 50 mm larger than the actual sump opening, so it rests on the ledge.
Frame depth is about 30 mm for 25 mm grating, 44 mm for 38 mm and 50 mm for 50 mm grating.
Single leaf covers go up to 1,200 x 1,200 mm; larger openings use a double leaf.

Why FRP

No rust, no scrap value: FRP does not corrode and has no resale value, so covers are not stolen like steel.
Light: one or two workers lift a cover without machinery.
Non-conductive: safe near pumps, panels and cables.
Anti-slip: gritted top or 3 mm chequered plate.

Where It Is Used

Water tank and pump sumps
Sewage and wastewater plant pits
Valve and meter chambers

Questions and Answers

Grating or chequered plate?
Grating lets air and water through for drainage. Chequered plate is a solid anti-slip top that hides the pit and helps control odours.

Can you make round covers?
Yes, round chequered plate covers up to 2,000 mm diameter.

Is there a SIRIM certificate?
Yes, a SIRIM certificate is available for these covers. Ask us for a copy.

Can vehicles drive over it?
No. MuiGrate FRP grating and covers are designed for pedestrian traffic only, as BS 4592 sets out. Vehicle loads void the warranty unless Mui Fatt has certified the design.

Berapa harga penutup sump FRP?
Harga bergantung kepada saiz, kuantiti dan pilihan bahan. Hubungi Mui Fatt untuk sebut harga terkini.
