FRP Round Chequered Plate Sump Cover, Close End (up to 2,000 mm Diameter)

FRP Round Chequered Plate Sump Cover, Close End (up to 2,000 mm Diameter)

MuiGrate round FRP chequered plate sump cover with a closed end, stiffened by pultruded FRP grating, up to 2,000 mm diameter. For manholes and sumps in wastewater treatment plants.

SKU :

COV-CP-ROUND

Quantity :

Send Whatapps

PDF download :

Download PDF

FRP Round Chequered Plate Sump Cover, Close End (up to 2,000 mm Diameter)

This MuiGrate cover is a round, close-end FRP (fibreglass) chequered plate cover, stiffened underneath by pultruded FRP grating, for round manholes and sumps up to 2,000 mm in diameter. The solid top is anti-slip and keeps odours and rubbish in or out.

Round covers are made to the clear opening of your chamber (models MGU and MGV in our catalogue), with a mild steel or galvanised frame and U handles on request.

Ringkasan: Penutup sump bulat FRP plat berbunga, hujung tertutup, disokong jeriji pultrusi, sehingga diameter 2,000 mm, untuk loji rawatan air sisa.

Specifications

Model	MGU / MGV (round)
Top	Solid round FRP chequered plate, close end, on pultruded grating support
Frame	Mild steel or hot-dip galvanised frame
Hinges	None or as required; stainless steel U handles on request
Diameter	Up to 2,000 mm, made to your opening
Grating height	25 mm (1 in), 38 mm (1.5 in) or 50 mm (2 in)
Resin	Isophthalic polyester with UV-resistant gel coat; vinyl ester or fire-retardant on request
Colour	Grey (standard), yellow, green; others on request
Add-ons	Embossed council or company logo, handles

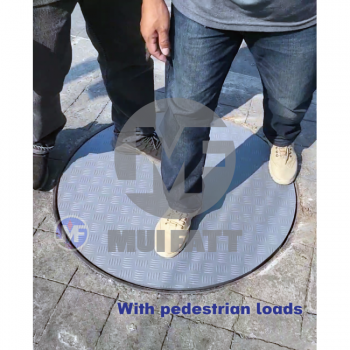

Load use	Pedestrian traffic only (BS 4592)
SIRIM	Certificate available on request
Made by	Y.T. Fibreglass Industries Sdn Bhd, Port Klang

How to Size a Cover

Give the clear opening of the pit as width x length (W x L); for round covers, the diameter.
The cover is made at least 50 mm larger than the actual sump opening, so it rests on the ledge.
Frame depth is about 30 mm for 25 mm grating, 44 mm for 38 mm and 50 mm for 50 mm grating.
Single leaf covers go up to 1,200 x 1,200 mm; larger openings use a double leaf.

Why FRP

No rust, no scrap value: FRP does not corrode and has no resale value, so covers are not stolen like steel.
Light: one or two workers lift a cover without machinery.
Non-conductive: safe near pumps, panels and cables.
Anti-slip: gritted top or 3 mm chequered plate.

Where It Is Used

Sewerage inspection chambers in housing projects
Council drains, sumps and backyards
Treatment plant pits and walkways
Areas where steel covers rust or are stolen

Questions and Answers

What size do I order?
Give the clear diameter of the opening. The cover is made about 10 mm smaller than the clear opening of the frame.

What is it used for?
Round sumps and manholes, mainly in wastewater treatment plants.

Can vehicles drive over it?
No. MuiGrate FRP grating and covers are designed for pedestrian traffic only, as BS 4592 sets out. Vehicle loads void the warranty unless Mui Fatt has certified the design.

Berapa harga penutup manhole FRP?
Harga bergantung kepada saiz, kuantiti dan pilihan bahan. Hubungi Mui Fatt untuk sebut harga terkini.
