FRP Grating Cover with FRP Frame and Aluminium Hinges (MuiGrate F Series)

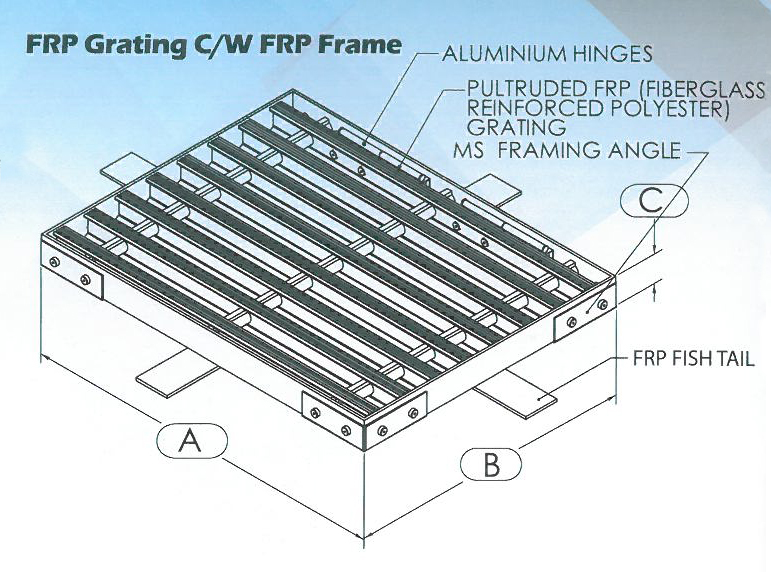

This MuiGrate cover is an open FRP (fibreglass) pultruded grating in a high-strength pultruded FRP L-type frame, the F series in our catalogue (models MGA gritted and MGE plain). Aluminium hinges are standard, and FRP fishtail anchors hold the frame in the concrete.

With no steel in the frame, nothing rusts, so it suits sewage plants, coastal sites and chemical areas. Single leaf covers go up to 1,200 x 1,200 mm; larger pits use a double leaf (MGB and MGF).

Ringkasan: Penutup jeriji FRP pultrusi dalam bingkai FRP dengan engsel aluminium, langsung tidak berkarat. Tebal 25, 38 atau 50 mm, dibuat ikut saiz lubang.

Specifications

Model	MGA / MGE, F series (double leaf MGB / MGF)
Top	Open pultruded FRP grating, gritted (MGA) or plain (MGE)
Frame	Pultruded FRP L-type frame with FRP fishtail anchors

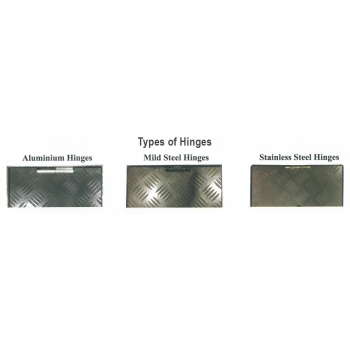

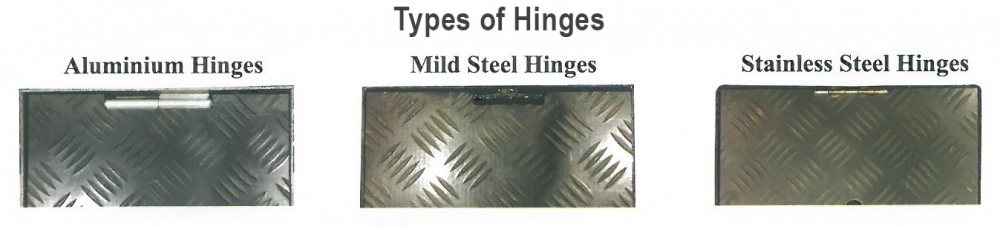

Hinges	Aluminium (standard), mild steel, SS304 or SS316
Single leaf	Up to 1,200 x 1,200 mm; double leaf above that
Grating height	25 mm (1 in), 38 mm (1.5 in) or 50 mm (2 in)
Resin	Isophthalic polyester with UV-resistant gel coat; vinyl ester or fire-retardant on request
Colour	Grey (standard), yellow, green; others on request
Add-ons	Embossed council or company logo, handles
Load use	Pedestrian traffic only (BS 4592)
SIRIM	Certificate available on request
Made by	Y.T. Fibreglass Industries Sdn Bhd, Port Klang

How to Size a Cover

Give the clear opening of the pit as width x length (W x L); for round covers, the diameter.
The cover is made at least 50 mm larger than the actual sump opening, so it rests on the ledge.
Frame depth is about 30 mm for 25 mm grating, 44 mm for 38 mm and 50 mm for 50 mm grating.
Single leaf covers go up to 1,200 x 1,200 mm; larger openings use a double leaf.

Why FRP

No rust, no scrap value: FRP does not corrode and has no resale value, so covers are not stolen like steel.
Light: one or two workers lift a cover without machinery.
Non-conductive: safe near pumps, panels and cables.

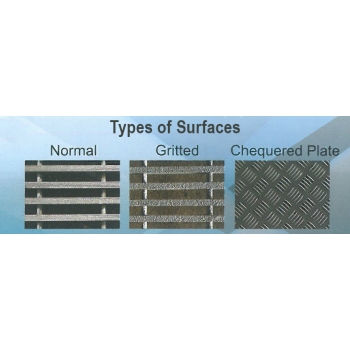

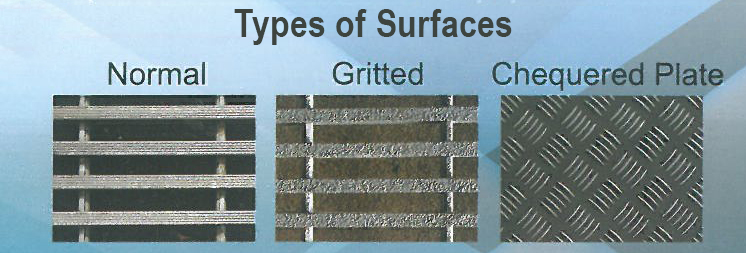

Anti-slip: gritted top or 3 mm chequered plate.

Where It Is Used

Sewerage inspection chambers in housing projects
Council drains, sumps and backyards
Treatment plant pits and walkways
Areas where steel covers rust or are stolen

Questions and Answers

Why an FRP frame?
An FRP frame never rusts, so the whole cover lasts in sewage, salt air and chemical areas.

What size do I order?
Give the clear opening of the pit. The cover is made at least 50 mm larger so it sits on the ledge.

Can vehicles drive over it?
No. MuiGrate FRP grating and covers are designed for pedestrian traffic only, as BS 4592 sets out. Vehicle loads void the warranty unless Mui Fatt has certified the design.

Berapa harga penutup manhole FRP?
Harga bergantung kepada saiz, kuantiti dan pilihan bahan. Hubungi Mui Fatt untuk sebut harga terkini.
