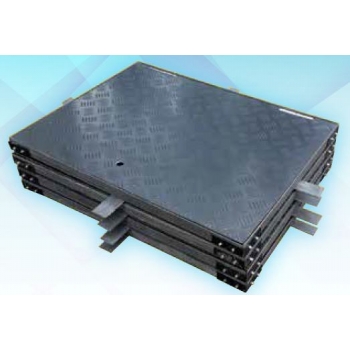

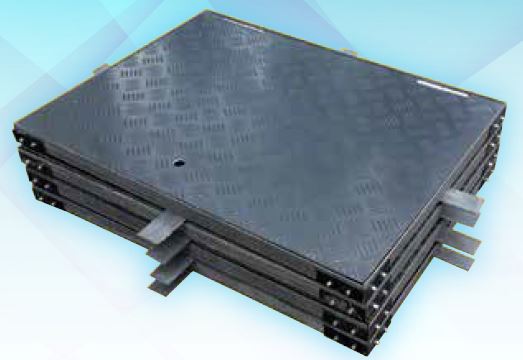

FRP Chequered Plate Cover with FRP Frame (MuiGrate MGP F Series)
MuiGrate FRP chequered plate cover in a pultruded FRP frame with aluminium hinges and FRP fishtail anchors. A solid, anti-slip, fully rust-free cover for sewage pits and odour control.
FRP Chequered Plate Cover with FRP Frame (MuiGrate MGP F Series)

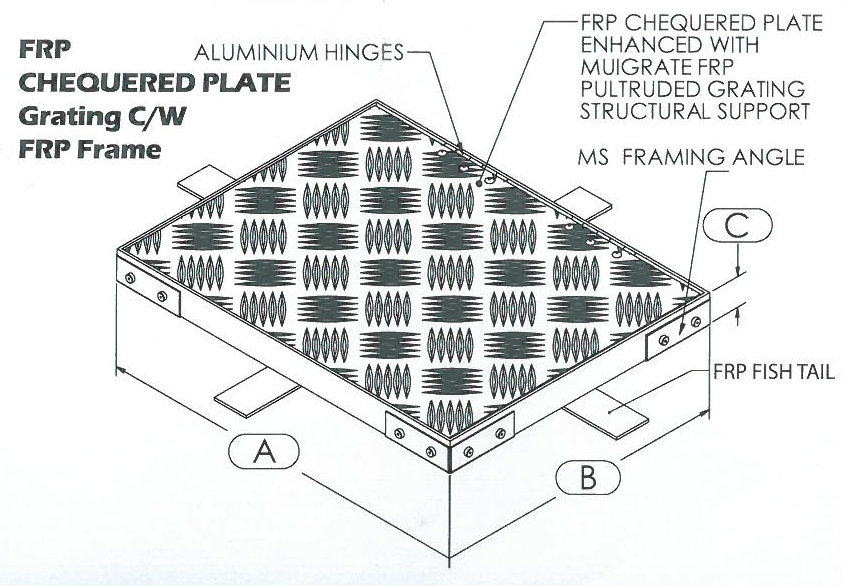

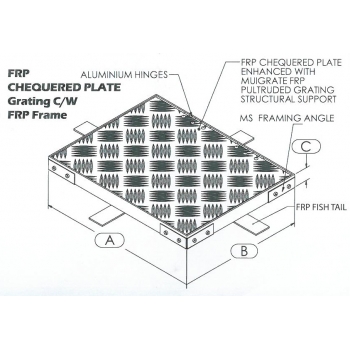

This MuiGrate cover has a solid FRP (fibreglass) chequered plate top supported by pultruded FRP grating, set in a high-strength pultruded FRP L-type frame with aluminium hinges. It is the MGP F series in our catalogue, held in the concrete by FRP fishtail anchors.
Because the plate and frame are both FRP, nothing rusts. It is the cover to choose for sewage pits, wet wells and coastal sites where odour control matters. Single leaf covers go up to 1,200 x 1,200 mm.
Ringkasan: Penutup plat berbunga FRP dalam bingkai FRP dengan engsel aluminium. Padu, anti-gelincir, langsung tidak berkarat, sesuai untuk lubang kumbahan dan kawalan bau.
Specifications
| Model | MGP, F series (double leaf MGQ / MGS) |
|---|---|
| Top | Solid FRP chequered plate on pultruded grating support |
| Frame | Pultruded FRP L-type frame with FRP fishtail anchors |

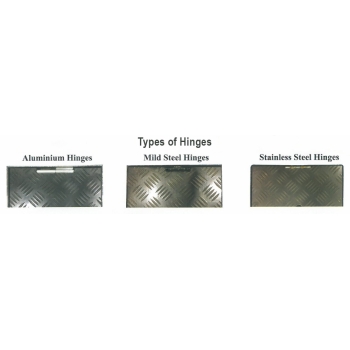

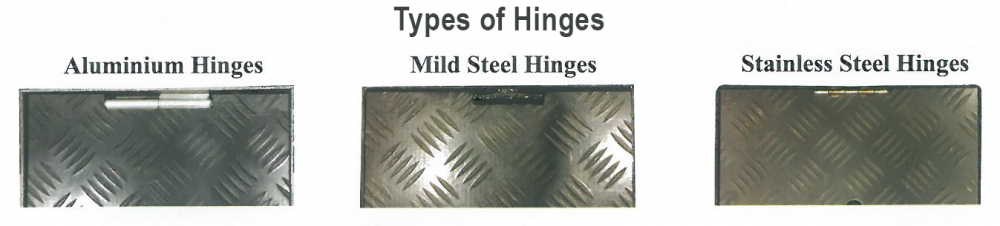

| Hinges | Aluminium (standard), mild steel, SS304 or SS316 |
| Single leaf | Up to 1,200 x 1,200 mm; double leaf up to 4,000 x 4,000 mm |
| Grating height | 25 mm (1 in), 38 mm (1.5 in) or 50 mm (2 in) |
| Resin | Isophthalic polyester with UV-resistant gel coat; vinyl ester or fire-retardant on request |
| Colour | Grey (standard), yellow, green; others on request |
| Add-ons | Embossed council or company logo, handles |
| Load use | Pedestrian traffic only (BS 4592) |
| SIRIM | Certificate available on request |
| Made by | Y.T. Fibreglass Industries Sdn Bhd, Port Klang |
How to Size a Cover
- Give the clear opening of the pit as width x length (W x L); for round covers, the diameter.
- The cover is made at least 50 mm larger than the actual sump opening, so it rests on the ledge.
- Frame depth is about 30 mm for 25 mm grating, 44 mm for 38 mm and 50 mm for 50 mm grating.
- Single leaf covers go up to 1,200 x 1,200 mm; larger openings use a double leaf.
Why FRP
- No rust, no scrap value: FRP does not corrode and has no resale value, so covers are not stolen like steel.
- Light: one or two workers lift a cover without machinery.
- Non-conductive: safe near pumps, panels and cables.

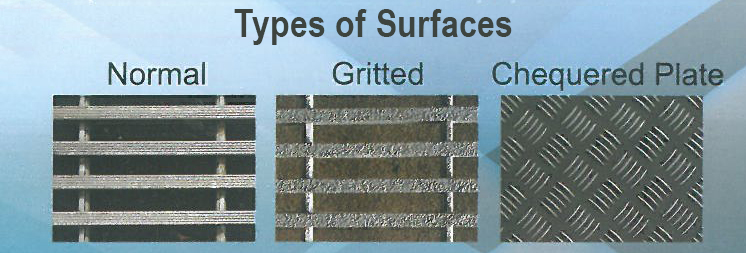

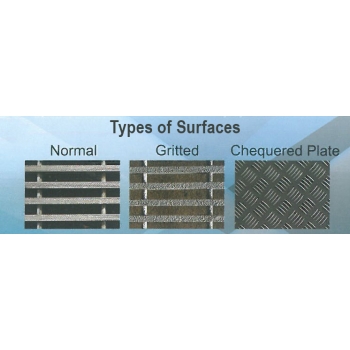

- Anti-slip: gritted top or 3 mm chequered plate.
Where It Is Used
- Sewerage inspection chambers in housing projects
- Council drains, sumps and backyards
- Treatment plant pits and walkways
- Areas where steel covers rust or are stolen
Questions and Answers
Where is this cover used most?
Sewage pits, wet wells and coastal or chemical sites, where a steel frame would rust.
Can you add our logo?
Yes, a council or company logo can be embossed on the cover.
Can vehicles drive over it?
No. MuiGrate FRP grating and covers are designed for pedestrian traffic only, as BS 4592 sets out. Vehicle loads void the warranty unless Mui Fatt has certified the design.
Berapa harga penutup manhole FRP?
Harga bergantung kepada saiz, kuantiti dan pilihan bahan. Hubungi Mui Fatt untuk sebut harga terkini.
