FRP C-Channel 2C CC 50.8 x 25.4 x 4.76 mm (2 x 1 in, 4.76 mm Thick)
Pultruded FRP C-channel 2C, 50.8 mm deep x 25.4 mm flange (2 x 1 in), 4.76 mm thick. The smallest channel we list, for light frames, edge trims, stiffeners and cable supports. Rust free, RAL 7035 grey.
FRP C-Channel 2C CC 50.8 x 25.4 x 4.76 mm (2 x 1 in, 4.76 mm Thick)

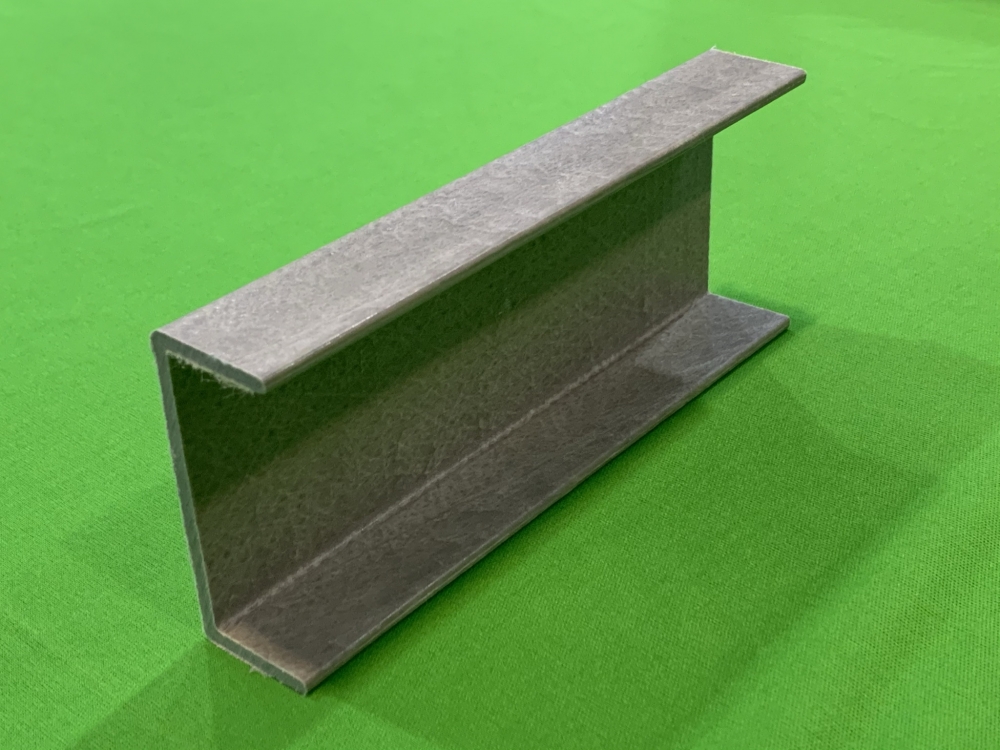

The CC 50.8 x 25.4 x 4.76 is a pultruded fiberglass (FRP) C-channel (also called U-channel): depth x flange width 50.8 x 25.4 mm (2 x 1 in); thickness 4.76 mm (3/16 in). It is the smallest channel in the range, used for light frames, trims and stiffeners. It is made in Malaysia by Hexagon MF Composite Sdn Bhd, Mui Fatt's pultrusion sister company, in isophthalic polyester resin with a surface veil, in RAL 7035 light grey, and supplied by Mui Fatt.
Ringkasan: Saluran C FRP 2C, 50.8 x 25.4 mm (2 x 1 inci), tebal 4.76 mm, untuk rangka ringan, kemasan tepi dan pengukuh. Tidak berkarat.
Specifications
| Model code | CC-50.8 x 25.4 x 4.76 |
|---|---|
| SKU | CC2-4 |
| Profile | C-channel (also called U-channel) |
| Depth x flange width | 50.8 x 25.4 mm (2 x 1 in) |
| Thickness | 4.76 mm (3/16 in) |
| Standard length | TBA (cut to length on request) |
| Weight per metre | TBA |
| Process | Pultrusion: E-glass rovings and mat with a surface veil |
| Resin | Isophthalic polyester (standard); vinyl ester on request |
| Fire-retardant option | Fire-retardant resin to ASTM E84 on request |
| Colour | RAL 7035 light grey; other colours on request |
| Made by | Hexagon MF Composite Sdn Bhd, Malaysia |
| Supplied by | Mui Fatt |
Material and Features
- Rust free: does not corrode in water, salt air or most chemicals
- Non-conductive: does not conduct electricity, safer near cables and electrical plant
- Light: much lighter than steel, so it is easy to carry and fit by hand
- Surface veil: keeps glass fibres below the surface and improves UV and corrosion resistance
- Easy to work: cut and drilled with standard power tools; seal cut edges with resin
Where It Is Used
- Frames for covers, doors and panels
- Edge trims and stiffeners
- Short supports for cable and small pipes
- Light shelving and racks in wet areas
- Guides and runners
Choosing This Size
At 2 inches deep the 2C channel is mainly a secondary member: frames for covers and panels, edge trims, stiffeners and short supports.
Frequently Asked Questions
Is the thickness 4 mm or 4.76 mm?
4.76 mm (3/16 in). The "4 mm" in the old name was rounded.
What does 2C mean?
It is the nominal depth: about 2 inches. This channel is 50.8 mm deep with a 25.4 mm flange.
Can you fabricate it into frames or supports?
Yes. We can cut and fabricate profiles into frames, supports and handrails. Send us a drawing or sketch.
Can it be cut and drilled on site?
Yes, with standard power tools. Wear a dust mask and seal cut edges and holes with resin to protect the fibres.
Berapa harga saluran C FRP CC 50.8 x 25.4 x 4.76?
Hubungi kami untuk harga terkini. Harga bergantung kepada saiz, panjang dan kuantiti.
