FRP C-Channel 3C CC 76.2 x 26.99 x 4.76 mm (3 x 1-1/16 in, 4.76 mm Thick)
Pultruded FRP C-channel 3C, 76.2 mm deep x 27 mm flange (3 x 1-1/16 in), 4.76 mm thick. A light 3 inch channel for short beams, frames and supports in corrosive sites. Rust free, RAL 7035 grey.
FRP C-Channel 3C CC 76.2 x 26.99 x 4.76 mm (3 x 1-1/16 in, 4.76 mm Thick)

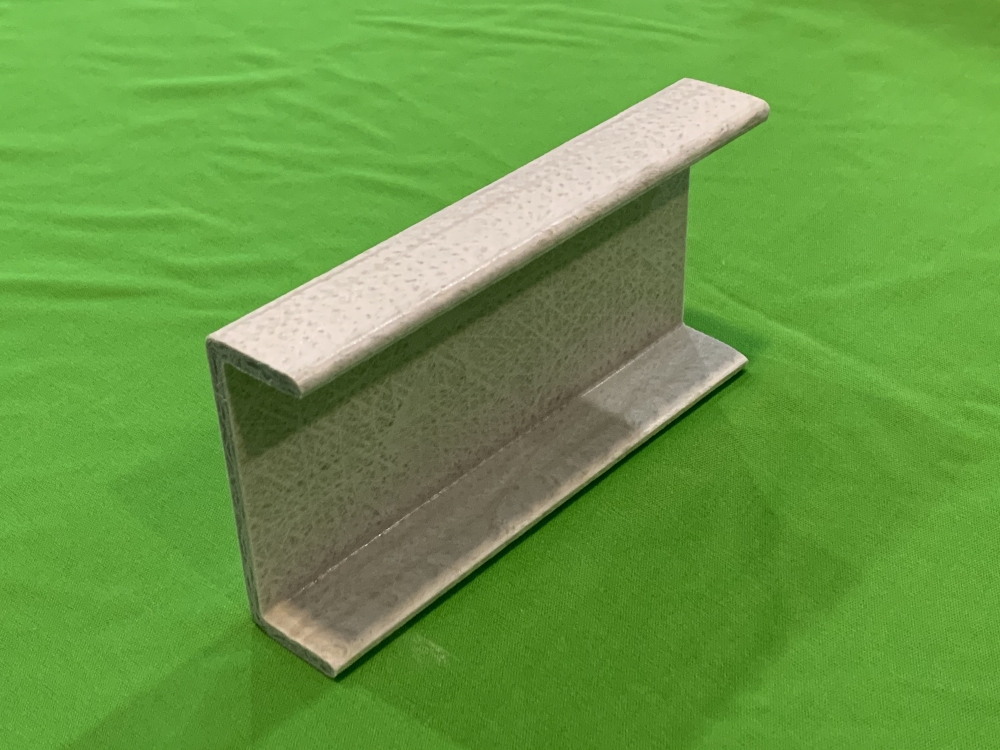

The CC 76.2 x 26.99 x 4.76 is a pultruded fiberglass (FRP) C-channel (also called U-channel): depth x flange width 76.2 x 26.99 mm (3 x 1-1/16 in); thickness 4.76 mm (3/16 in). It is a light 3 inch channel with a narrow 27 mm flange. It is made in Malaysia by Hexagon MF Composite Sdn Bhd, Mui Fatt's pultrusion sister company, in isophthalic polyester resin with a surface veil, in RAL 7035 light grey, and supplied by Mui Fatt.
Ringkasan: Saluran C FRP 3C, 76.2 x 27 mm (3 x 1-1/16 inci), tebal 4.76 mm, untuk rasuk pendek, rangka dan penyokong. Tidak berkarat.
Specifications
| Model code | CC-76.2 x 26.99 x 4.76 |
|---|---|
| SKU | CC3-4 |
| Profile | C-channel (also called U-channel) |
| Depth x flange width | 76.2 x 26.99 mm (3 x 1-1/16 in) |
| Thickness | 4.76 mm (3/16 in) |
| Standard length | TBA (cut to length on request) |
| Weight per metre | TBA |
| Process | Pultrusion: E-glass rovings and mat with a surface veil |
| Resin | Isophthalic polyester (standard); vinyl ester on request |
| Fire-retardant option | Fire-retardant resin to ASTM E84 on request |
| Colour | RAL 7035 light grey; other colours on request |
| Made by | Hexagon MF Composite Sdn Bhd, Malaysia |
| Supplied by | Mui Fatt |
Material and Features
- Rust free: does not corrode in water, salt air or most chemicals
- Non-conductive: does not conduct electricity, safer near cables and electrical plant
- Light: much lighter than steel, so it is easy to carry and fit by hand
- Surface veil: keeps glass fibres below the surface and improves UV and corrosion resistance
- Easy to work: cut and drilled with standard power tools; seal cut edges with resin
Where It Is Used
- Short-span beams for small platforms
- Frames for covers and hatches
- Wall-mounted supports for cables and pipes
- Trims and stiffeners on larger panels
- Racks in wet or chemical stores
Choosing This Size
The 3C channel is a step up in depth from the 2C, giving a light beam for short spans, framing for covers and small platforms, and supports for cable and pipe. The narrow flange keeps it compact against walls.
Frequently Asked Questions
What span can a 3C channel cover?
It suits short spans and light loads. The safe span depends on the load and fixing; send us the details and we will check.
What does 3C mean?
The nominal depth: about 3 inches. This one is 76.2 mm deep with a 27 mm flange.
What length can I order?
The standard stock length is TBA. Tell us the length and quantity you need and we will confirm; we can also cut profiles to size.
Is a fire-retardant version available?
Yes. Profiles in fire-retardant resin to ASTM E84 are made on request. Vinyl ester resin is also available on request for stronger chemicals.
Berapa harga saluran C FRP CC 76.2 x 26.99 x 4.76?
Hubungi kami untuk harga terkini. Harga bergantung kepada saiz, panjang dan kuantiti.
Related Sizes and Products
Nearest sizes and related items: 2C, 50.8 x 25.4 x 4.76 →, 4C, 101.6 x 41.3 x 4.76 →.
See every size in FRP C-Channels →.
