The Art of Fiberglass & Polyethylene, Engineered with Innovation and Precision for Lasting Performance.

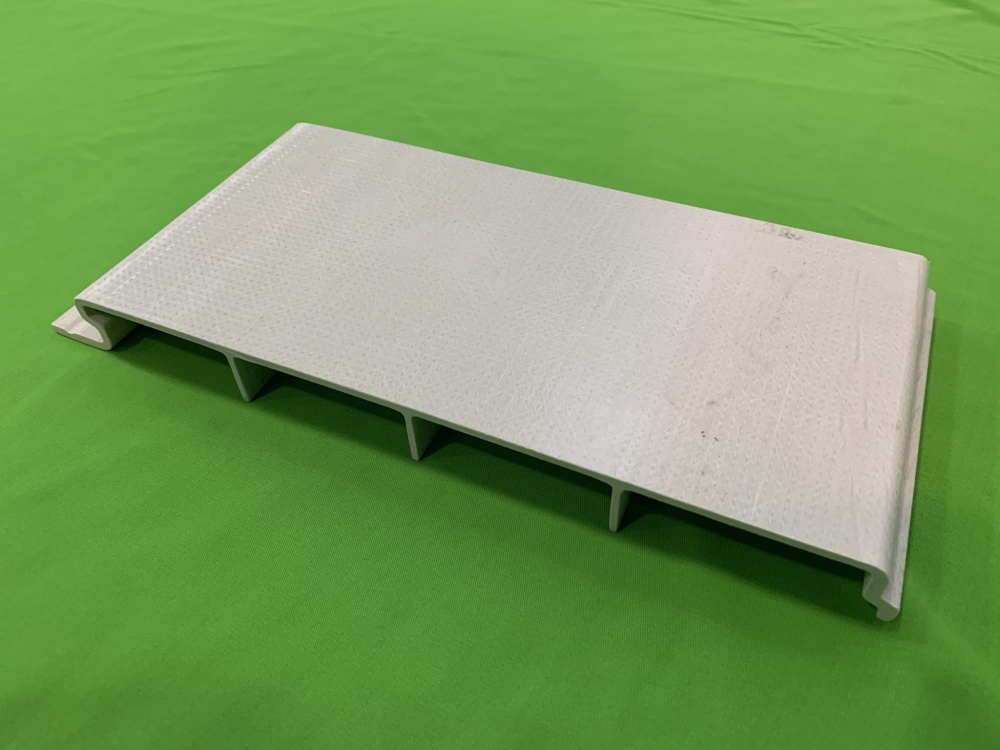

FRP Deck Plank FDF(G) 305 x 28 x 3.18 mm (12 in Wide)

Pultruded FRP deck plank FDF(G), 305 mm (12 in) wide, 28 mm high and 3.18 mm thick, gritted or smooth. A light fan deck plank for cooling towers, bridges and roof decking. Rust free, RAL 7035 grey.

SKU :

FDF305

Quantity :

FRP Deck Plank FDF(G) 305 x 28 x 3.18 mm (12 in Wide)

The FDF(G) 305 x 28 x 3.18 is a pultruded fiberglass (FRP) fan deck and decking plank: width 305 mm (12 in); height 28 mm; thickness 3.18 mm. It is a light 12 inch fan deck plank. It is made in Malaysia by Hexagon MF Composite Sdn Bhd, Mui Fatt's pultrusion sister company, in isophthalic polyester resin with a surface veil, in RAL 7035 light grey, and supplied by Mui Fatt.

Ringkasan: Dek FRP FDF(G) 305 x 28 x 3.18 mm (12 inci), permukaan bergerit atau licin, untuk dek kipas menara penyejuk dan dek bumbung. Ringan dan tidak berkarat.

Specifications

Model code FDF(G)-305 x 28 x 3.18
SKU FDF305
Profile Fan deck and decking plank
Width 305 mm (12 in)
Height 28 mm
Thickness 3.18 mm
Standard length TBA (cut to length on request)
Weight per metre TBA
Process Pultrusion: E-glass rovings and mat with a surface veil
Surface Gritted or smooth
Resin Isophthalic polyester (standard); vinyl ester on request
Fire-retardant option Fire-retardant resin to ASTM E84 on request
Colour RAL 7035 light grey; other colours on request
Made by Hexagon MF Composite Sdn Bhd, Malaysia
Supplied by Mui Fatt

Material and Features

  • Rust free: does not corrode in water, salt air or most chemicals
  • Non-conductive: does not conduct electricity, safer near cables and electrical plant
  • Light: much lighter than steel, so it is easy to carry and fit by hand
  • Surface veil: keeps glass fibres below the surface and improves UV and corrosion resistance
  • Grip: gritted surface available for wet walking areas

Where It Is Used

  • Cooling tower fan decks
  • Bridge decking
  • Extension roof decking
  • Walkway decks in wet or chemical areas

Choosing This Size

The 12 inch FDF(G) plank is light and low, which suits fan decks where the deck sits on closely spaced supports. We list a second 12 inch plank, FDG(G) 305 x 28 x 3.18, with the same size; quote the exact code if you are matching an existing deck.

Frequently Asked Questions

What is the difference between FDF(G) and FDG(G) 305 decks?

Both are listed at 305 x 28 x 3.18 mm. The difference between the two codes is to be confirmed (TBA); quote the code on your drawing or old order and we will match it.

What does the (G) mean?

The deck is offered gritted or smooth. Tell us which finish you need.

What colour is it?

RAL 7035 light grey as standard. Other colours are made on request, subject to quantity.

Can you fabricate it into frames or supports?

Yes. We can cut and fabricate profiles into frames, supports and handrails. Send us a drawing or sketch.

Berapa harga dek FRP FDF(G) 305 x 28 x 3.18?

Hubungi kami untuk harga terkini. Harga bergantung kepada saiz, panjang dan kuantiti.

Related Sizes and Products

Nearest sizes and related items: FRP deck FDG(G) 305, same size →, FRP deck 500 mm wide →.

See every size in FRP Fandeck and Decking →.
