FRP Deck Plank FDG(G) 305 x 28 x 3.18 mm (12 in Wide, 3 mm Thick)
Pultruded FRP deck plank FDG(G), 305 mm (12 in) wide, 28 mm high and 3.18 mm thick, gritted or smooth. A 12 inch fan deck plank sold under the FDG code, for cooling towers and roof decks.
FRP Deck Plank FDG(G) 305 x 28 x 3.18 mm (12 in Wide, 3 mm Thick)

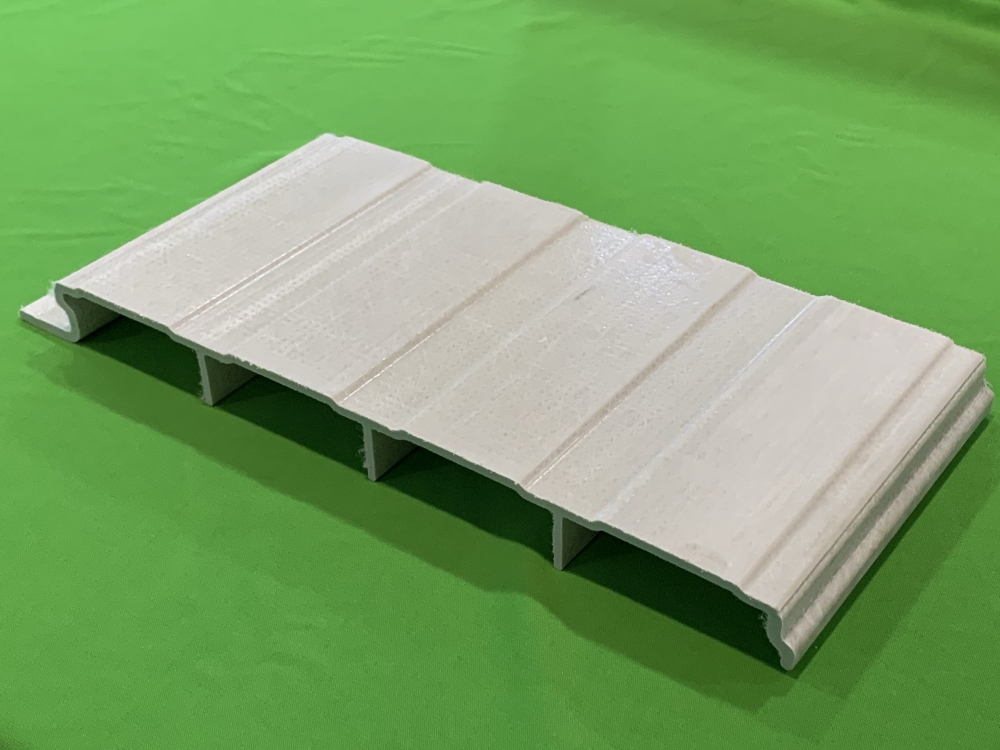

The FDG(G) 305 x 28 x 3.18 is a pultruded fiberglass (FRP) fan deck and decking plank: width 305 mm (12 in); height 28 mm; thickness 3.18 mm. It is a 12 inch fan deck plank sold under the FDG code. It is made in Malaysia by Hexagon MF Composite Sdn Bhd, Mui Fatt's pultrusion sister company, in isophthalic polyester resin with a surface veil, in RAL 7035 light grey, and supplied by Mui Fatt.
Ringkasan: Dek FRP FDG(G) 305 x 28 x 3.18 mm (12 inci, 3 mm), permukaan bergerit atau licin, untuk menara penyejuk dan dek bumbung. Tidak berkarat.
Specifications
| Model code | FDG(G)-305 x 28 x 3.18 |
|---|---|
| SKU | FDG305 |
| Profile | Fan deck and decking plank |
| Width | 305 mm (12 in) |
| Height | 28 mm |
| Thickness | 3.18 mm |
| Standard length | TBA (cut to length on request) |
| Weight per metre | TBA |
| Process | Pultrusion: E-glass rovings and mat with a surface veil |
| Surface | Gritted or smooth |
| Resin | Isophthalic polyester (standard); vinyl ester on request |
| Fire-retardant option | Fire-retardant resin to ASTM E84 on request |
| Colour | RAL 7035 light grey; other colours on request |
| Made by | Hexagon MF Composite Sdn Bhd, Malaysia |
| Supplied by | Mui Fatt |
Material and Features
- Rust free: does not corrode in water, salt air or most chemicals
- Non-conductive: does not conduct electricity, safer near cables and electrical plant
- Light: much lighter than steel, so it is easy to carry and fit by hand
- Surface veil: keeps glass fibres below the surface and improves UV and corrosion resistance
- Grip: gritted surface available for wet walking areas
Where It Is Used

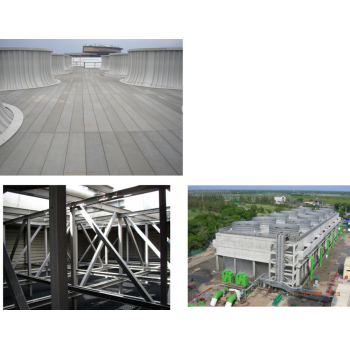

- Cooling tower fan decks
- Bridge decking

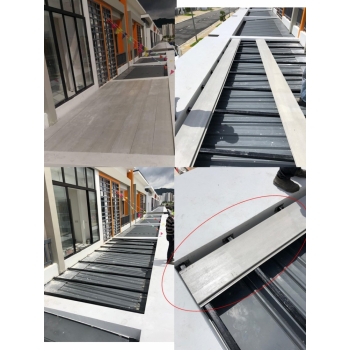

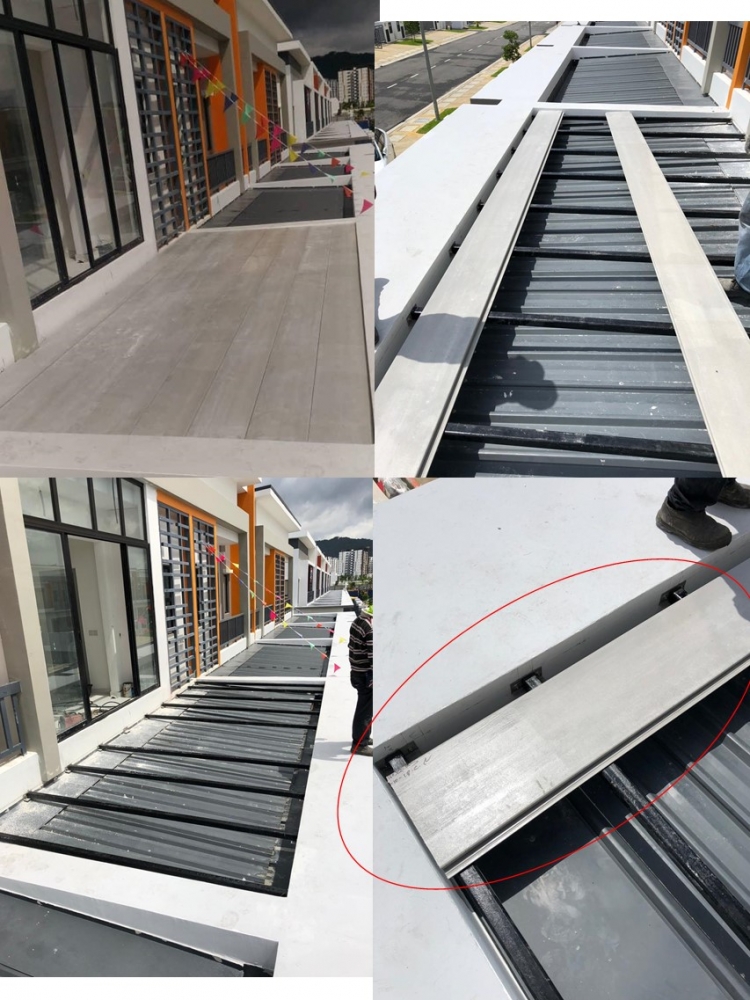

- Extension roof decking
- Walkway decks in wet or chemical areas
Choosing This Size
The FDG(G) plank has the same listed size as the FDF(G) 305 plank. If you are replacing planks on an existing cooling tower, send us the old code or a sample so we supply the one that interlocks with your deck.
Frequently Asked Questions
Is FDG(G) the same as FDF(G) 305?
They are listed at the same size, 305 x 28 x 3.18 mm. The difference between the two codes is to be confirmed (TBA); send us your old code or a sample.
Can I replace a few damaged planks only?
Yes. Tell us the code and quantity and we will check that the planks match your deck.
Can you fabricate it into frames or supports?
Yes. We can cut and fabricate profiles into frames, supports and handrails. Send us a drawing or sketch.
Can it be cut and drilled on site?
Yes, with standard power tools. Wear a dust mask and seal cut edges and holes with resin to protect the fibres.
Berapa harga dek FRP FDG(G) 305 x 28 x 3.18?
Hubungi kami untuk harga terkini. Harga bergantung kepada saiz, panjang dan kuantiti.
