FRP Deck Plank FDF(G) 203.2 x 50.8 x 6.35 mm (8 in Wide, 2 in High)
Pultruded FRP deck plank FDF(G), 203.2 mm (8 in) wide, 50.8 mm (2 in) high and 6.35 mm thick, gritted or smooth. The deepest, thickest deck we list, for longer spans between supports. Rust free.
FRP Deck Plank FDF(G) 203.2 x 50.8 x 6.35 mm (8 in Wide, 2 in High)

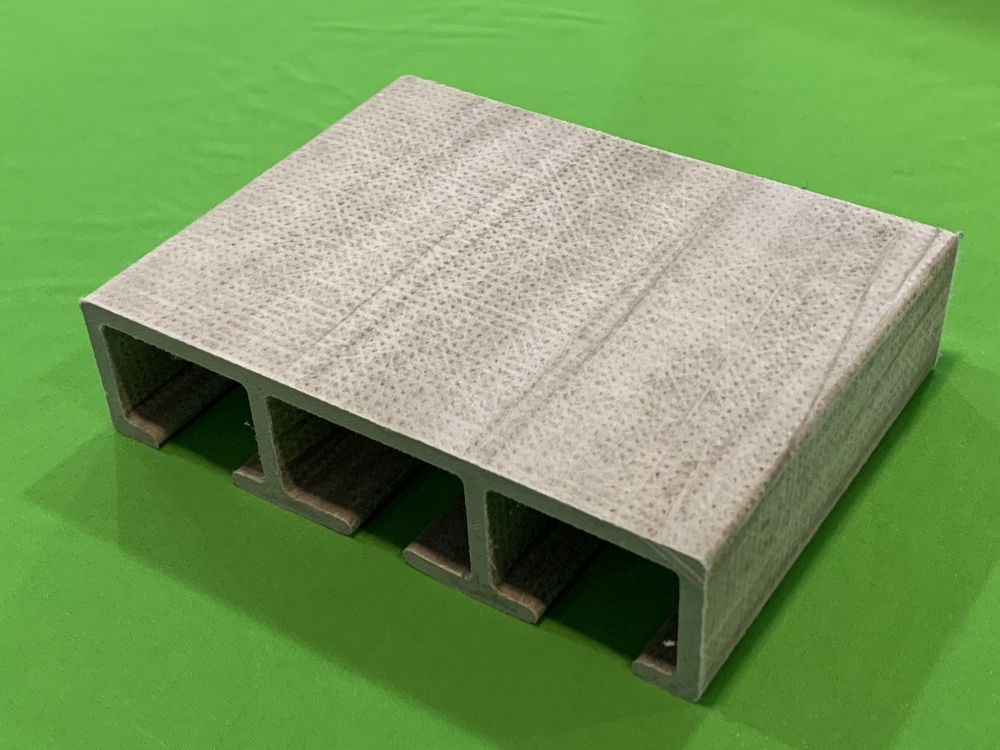

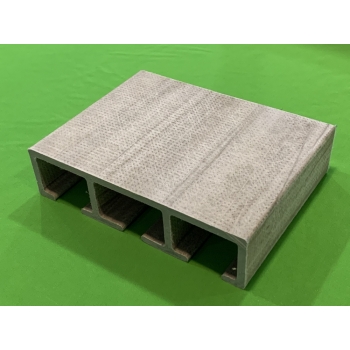

The FDF(G) 203.20 x 50.8 x 6.35 is a pultruded fiberglass (FRP) fan deck and decking plank: width 203.2 mm (8 in); height 50.8 mm; thickness 6.35 mm. It is the deepest and thickest deck plank in our list. It is made in Malaysia by Hexagon MF Composite Sdn Bhd, Mui Fatt's pultrusion sister company, in isophthalic polyester resin with a surface veil, in RAL 7035 light grey, and supplied by Mui Fatt.
Ringkasan: Dek FRP FDF(G) 203.2 x 50.8 x 6.35 mm (8 inci lebar, 2 inci tinggi), permukaan bergerit atau licin, untuk rentang lebih panjang. Tidak berkarat.
Specifications
| Model code | FDF(G)-203.20 x 50.8 x 6.35 |
|---|---|
| SKU | FDF203 |
| Profile | Fan deck and decking plank |
| Width | 203.2 mm (8 in) |
| Height | 50.8 mm |
| Thickness | 6.35 mm |
| Standard length | TBA (cut to length on request) |
| Weight per metre | TBA |
| Process | Pultrusion: E-glass rovings and mat with a surface veil |
| Surface | Gritted or smooth |
| Resin | Isophthalic polyester (standard); vinyl ester on request |
| Fire-retardant option | Fire-retardant resin to ASTM E84 on request |
| Colour | RAL 7035 light grey; other colours on request |
| Made by | Hexagon MF Composite Sdn Bhd, Malaysia |
| Supplied by | Mui Fatt |
Material and Features
- Rust free: does not corrode in water, salt air or most chemicals
- Non-conductive: does not conduct electricity, safer near cables and electrical plant
- Light: much lighter than steel, so it is easy to carry and fit by hand
- Surface veil: keeps glass fibres below the surface and improves UV and corrosion resistance
- Grip: gritted surface available for wet walking areas

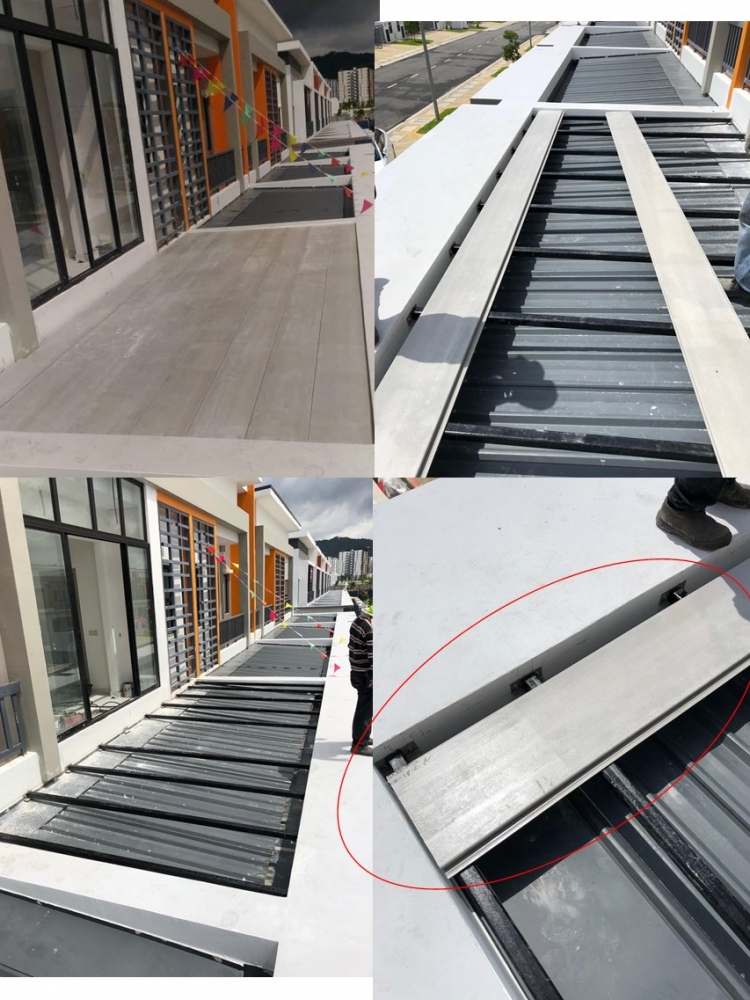

Where It Is Used

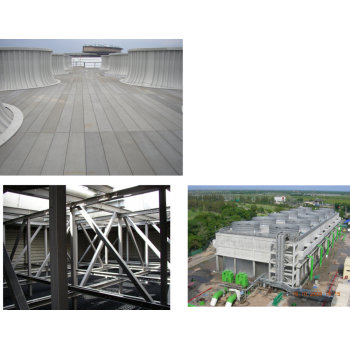

- Cooling tower fan decks
- Bridge decking

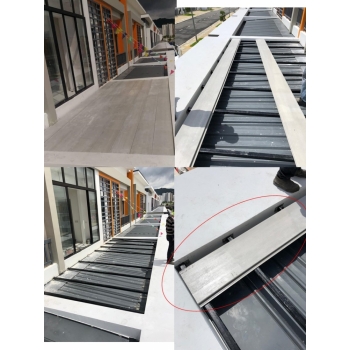

- Extension roof decking
- Walkway decks in wet or chemical areas
Choosing This Size
At 50.8 mm high and 6.35 mm thick, this narrow plank is much stiffer than the 28 mm and 40 mm decks, so it can span further between supports or take heavier foot traffic.
Frequently Asked Questions
Why choose the 8 in deck over the 12 in deck?
It is narrower but much deeper and thicker, so it spans further and carries more load.
Can it be used for bridge decking?
Yes, bridge decking is one of its listed uses. Send us the span and load and we will check it.
Can it be cut and drilled on site?
Yes, with standard power tools. Wear a dust mask and seal cut edges and holes with resin to protect the fibres.
What length can I order?
The standard stock length is TBA. Tell us the length and quantity you need and we will confirm; we can also cut profiles to size.
Berapa harga dek FRP FDF(G) 203.20 x 50.8 x 6.35?
Hubungi kami untuk harga terkini. Harga bergantung kepada saiz, panjang dan kuantiti.
Related Sizes and Products

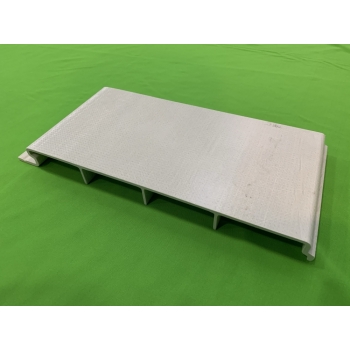

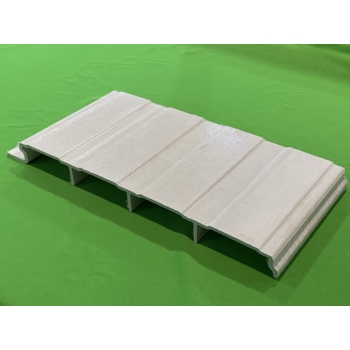

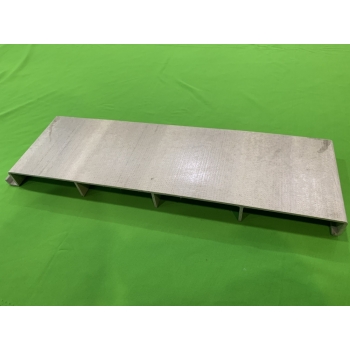

Nearest sizes and related items: FRP deck 500 mm wide →, FRP deck 305 mm (12 in) →.
