FRP Deck Plank FDF(G) 500 x 40 x 4 mm (Gritted or Smooth)

Pultruded FRP deck plank FDF(G), 500 mm wide, 40 mm high and 4 mm thick, gritted or smooth. The widest deck we list, for cooling tower fan decks, bridge decks and roof decking. Rust free, RAL 7035 grey.

SKU :

FDF500

FRP Deck Plank FDF(G) 500 x 40 x 4 mm (Gritted or Smooth)

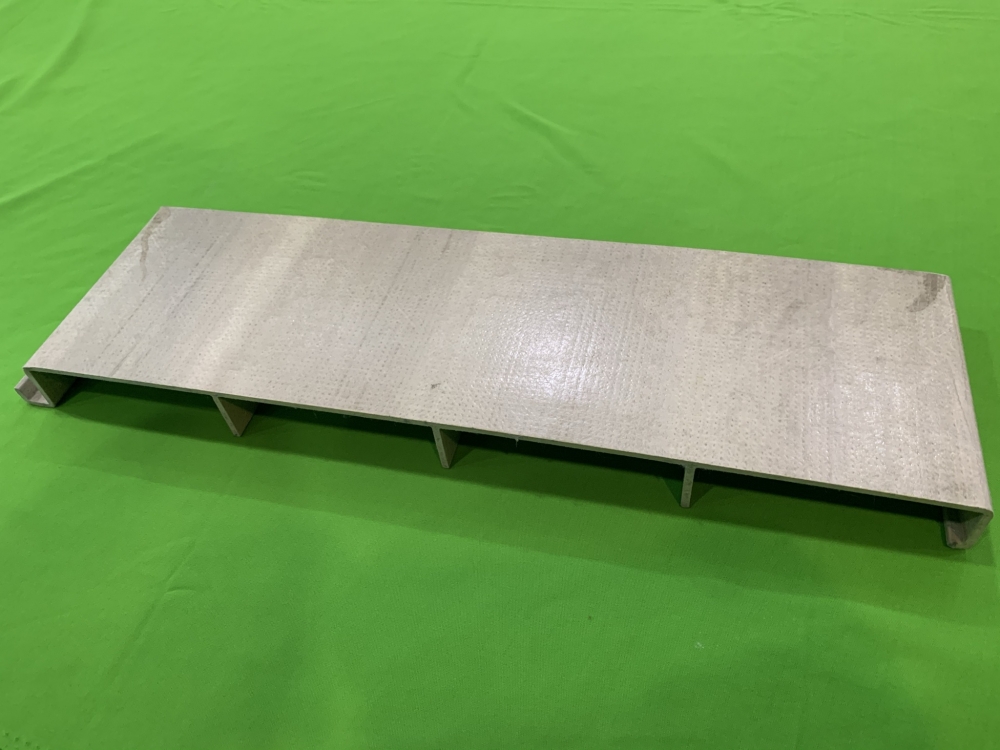

The FDF(G) 500 x 40 x 4 is a pultruded fiberglass (FRP) fan deck and decking plank: width 500 mm (about 20 in); height 40 mm; thickness 4 mm. It is the widest deck plank in our list, so fewer planks cover the same area. It is made in Malaysia by Hexagon MF Composite Sdn Bhd, Mui Fatt's pultrusion sister company, in isophthalic polyester resin with a surface veil, in RAL 7035 light grey, and supplied by Mui Fatt.

Ringkasan: Dek FRP FDF(G) 500 x 40 x 4 mm, permukaan bergerit atau licin, untuk dek kipas menara penyejuk, dek jambatan dan dek bumbung. Tidak berkarat.

Specifications

Model code	FDF(G)-500 x 40 x 4
SKU	FDF500
Profile	Fan deck and decking plank
Width	500 mm (about 20 in)
Height	40 mm
Thickness	4 mm
Standard length	TBA (cut to length on request)
Weight per metre	TBA
Process	Pultrusion: E-glass rovings and mat with a surface veil
Surface	Gritted or smooth
Resin	Isophthalic polyester (standard); vinyl ester on request
Fire-retardant option	Fire-retardant resin to ASTM E84 on request
Colour	RAL 7035 light grey; other colours on request
Made by	Hexagon MF Composite Sdn Bhd, Malaysia
Supplied by	Mui Fatt

Material and Features

Rust free: does not corrode in water, salt air or most chemicals
Non-conductive: does not conduct electricity, safer near cables and electrical plant
Light: much lighter than steel, so it is easy to carry and fit by hand
Surface veil: keeps glass fibres below the surface and improves UV and corrosion resistance
Grip: gritted surface available for wet walking areas

Where It Is Used

Cooling tower fan decks
Bridge decking
Extension roof decking
Walkway decks in wet or chemical areas

Choosing This Size

The 500 mm width covers an area with fewer joints than the 305 mm or 203 mm decks. Note: one older catalogue lists this plank at 70 mm high; this page lists 40 mm. Please confirm the height with us for design work.

Frequently Asked Questions

Is the height 40 mm or 70 mm?

This page lists 40 mm. An older catalogue lists 500 x 70 x 4. Confirm with us before you design around it.

Gritted or smooth?

Gritted for walking areas, especially where it gets wet; smooth where people do not walk.

Why use FRP instead of steel?

FRP is much lighter than steel, does not rust, does not conduct electricity and resists many chemicals and salt air, so it needs little maintenance in wet or corrosive sites.
