MG 38-38 FRP Molded Grating 38 mm, 38 x 38 mm Square Mesh, Custom Cut to Size

MG 38-38 FRP Molded Grating 38 mm, 38 x 38 mm Square Mesh, Custom Cut to Size

MG 38-38 FRP molded grating cut to your exact size at our Port Klang factory, up to a full 4 x 12 ft panel, to ±5 mm. Pipe cut-outs and odd shapes on request. 38 mm thick, 38 x 38 mm.

SKU :

MG 38-38 CS

Quantity :

Send Whatapps

PDF download :

Download PDF

MG 38-38 FRP Molded Grating 38 mm, 38 x 38 mm Square Mesh, Custom Cut to Size

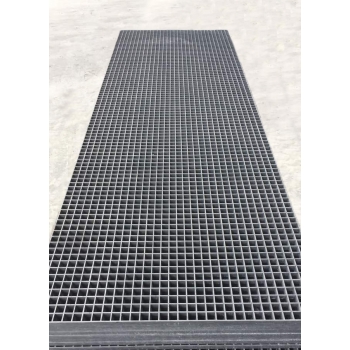

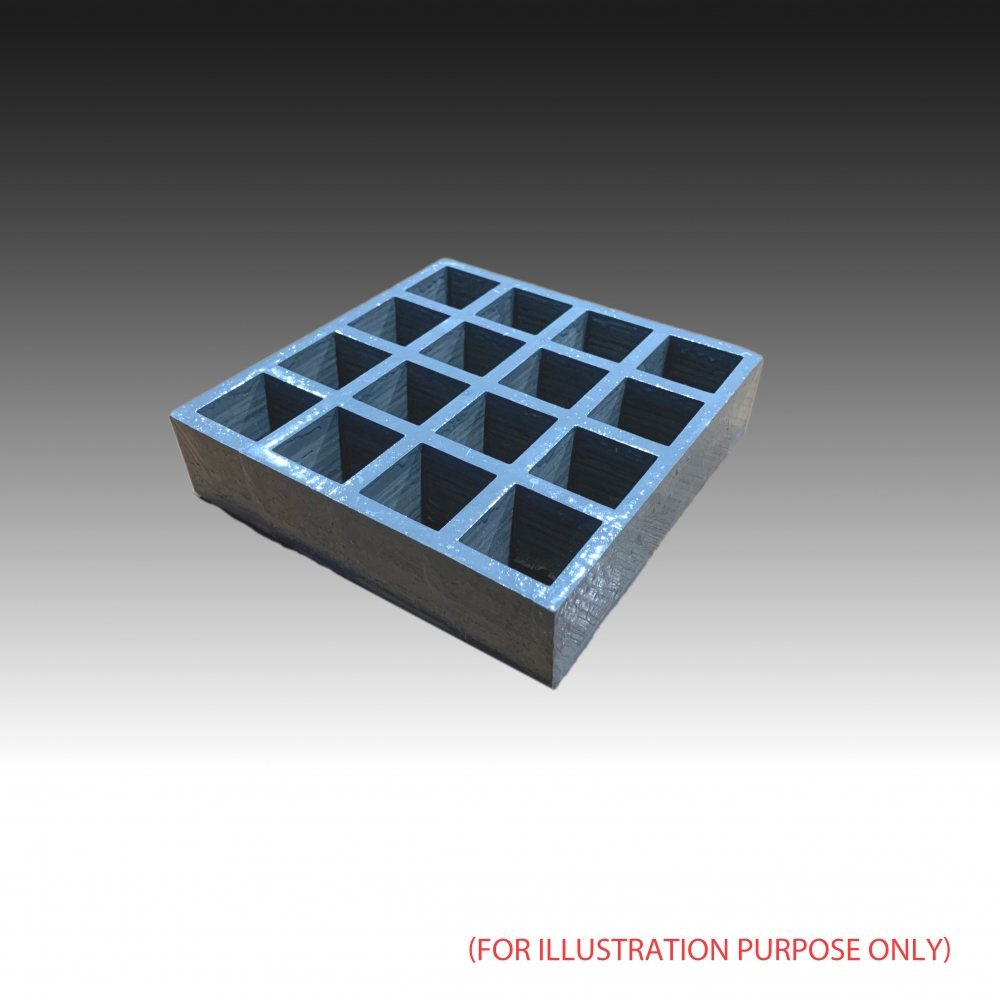

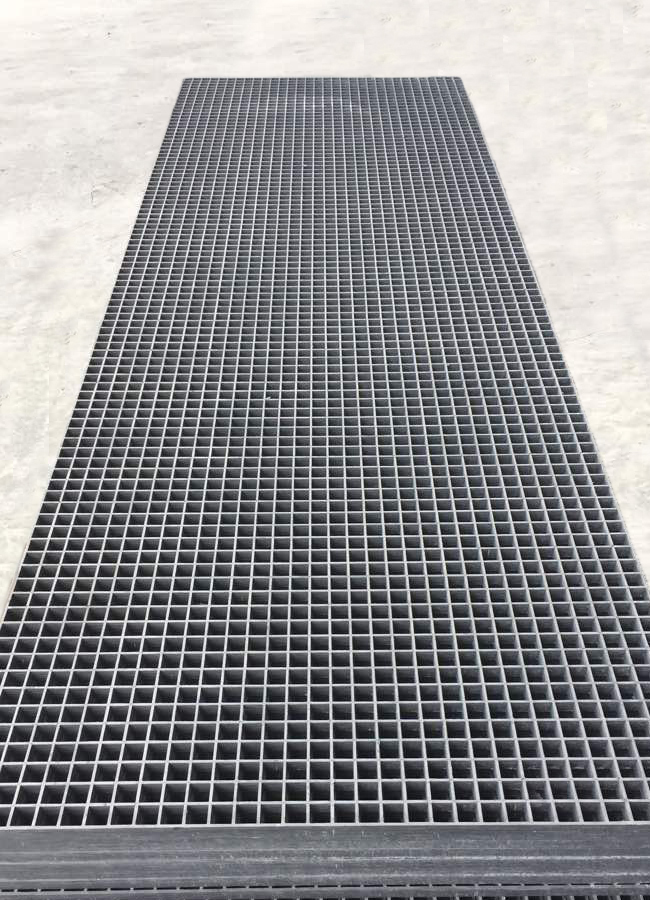

MG 38-38 custom size is MuiGrate FRP (fibreglass) molded grating, 38 mm thick with 38 x 38 mm square mesh, cut at our factory to the size you give us. Any width and length up to the full 1,220 x 3,660 mm (4 x 12 ft) panel can be cut, to ±5 mm.

Councils and contractors use this to buy exactly the pieces a drain or pit needs, instead of full sheets. Pipe cut-outs and odd shapes are made on request; pieces under 300 x 300 mm need a check with us first.

Ringkasan: Jeriji FRP acuan MG 38-38, tebal 38 mm, dipotong di kilang mengikut ukuran anda (sehingga saiz panel penuh), ketepatan ±5 mm. Lubang paip dan bentuk khas boleh dibuat.

Specifications

Model	MG 38-38 (MG38(38/38))
Type	MuiGrate FRP molded grating (one-piece open mesh)

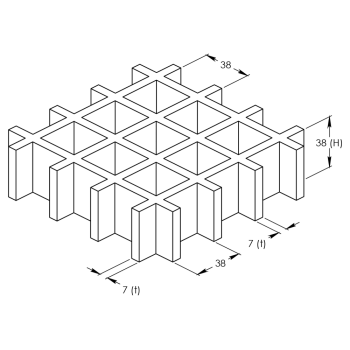

Height (thickness)	38 mm (1.5 in)
Mesh	38 x 38 mm square mesh
Open area	69%
Size	As ordered, up to 1,220 x 3,660 mm (4 x 12 ft); cut to ±5 mm
Weight	20.16 kg/m²
Resin	Orthophthalic, isophthalic or vinyl ester (most chemical resistant); fire-retardant version of each
Colour	Grey (standard), yellow, green; other colours on request
Surface	Concave anti-slip top; gritted on request
Fixing	SS316 stainless steel clips (M clip or disc clip)
Standard	SIRIM product certification to BS 4592-6:2008, licence PC013894
Load use	Pedestrian traffic only (BS 4592)
Made by	Y.T. Fibreglass Industries Sdn Bhd, Port Klang

Support Span Guide (Pedestrian Use)

Load	Maximum support span
100 kg foot traffic	up to 1,219 mm
500 kg	up to 914 mm
1,000 kg	up to 610 mm

Span is the clear gap between supports. Static loads at 1% deflection, safety factor 2.0. Pedestrian traffic only (BS 4592), not vehicles.

How to Measure

Measure the recess wall to wall; that is the grating size.
Leave at least 50 mm of ledge on each side for support.
Keep drain pieces to 1.5 m or shorter so they lift out easily.
If the clear span is too wide for the load, add a steel or concrete support underneath to halve it.
Mark pipe positions on a sketch or send a photo.

Why FRP

One piece: no welds or joints, strong in both directions, easy to cut around pipes.
Light: 20.16 kg/m², easy to lift and fit by hand.
No rust, no scrap value: no corrosion in wet or salty areas, and nothing for thieves to sell.
Non-conductive: safe near electrical equipment.

Where It Is Used

Council drains and sumps
Pits around pipes and pumps
Odd-shaped platforms and trench runs

Questions and Answers

What information do you need for a quote?
The sizes of each piece (width x length), the quantity, the thickness and mesh, the colour, and what chemicals the grating will touch.

How accurate is the cut?
±5 mm on length and width.

What is the smallest piece you can cut?
We cut down to 300 x 300 mm as standard; smaller pieces need a check with us first.

Can cars or lorries drive on it?
No. MuiGrate FRP grating is designed for pedestrian traffic only, as BS 4592 sets out. For areas with vehicles, use a steel or concrete cover.

Berapa harga jeriji FRP MG 38-38?
Harga bergantung kepada saiz, kuantiti, warna dan resin. Hubungi Mui Fatt untuk sebut harga terkini.
