MuiGrate MG25(38/38) FRP Site Safety Floor Sheet for Muddy Construction Sites
MuiGrate MG25(38/38) FRP grating used as site safety floor sheets: lay them straight on mud with no base or fixings, water drains through the mesh, then hose clean and reuse. 55 kg per 4 x 12 ft sheet.
MuiGrate MG25(38/38) FRP Site Safety Floor Sheet for Muddy Construction Sites

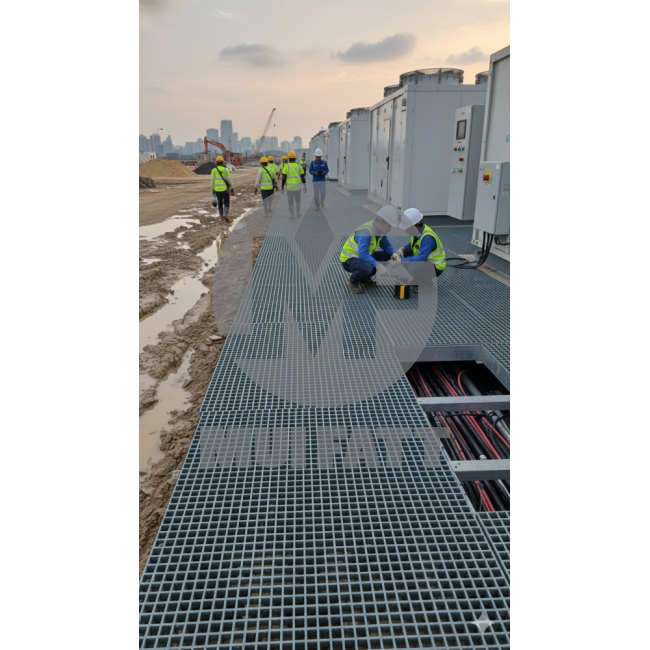

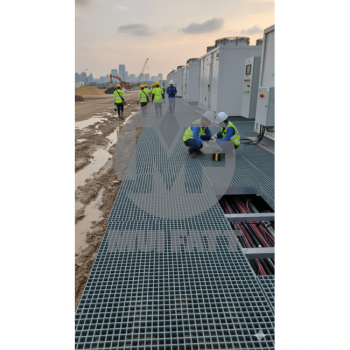

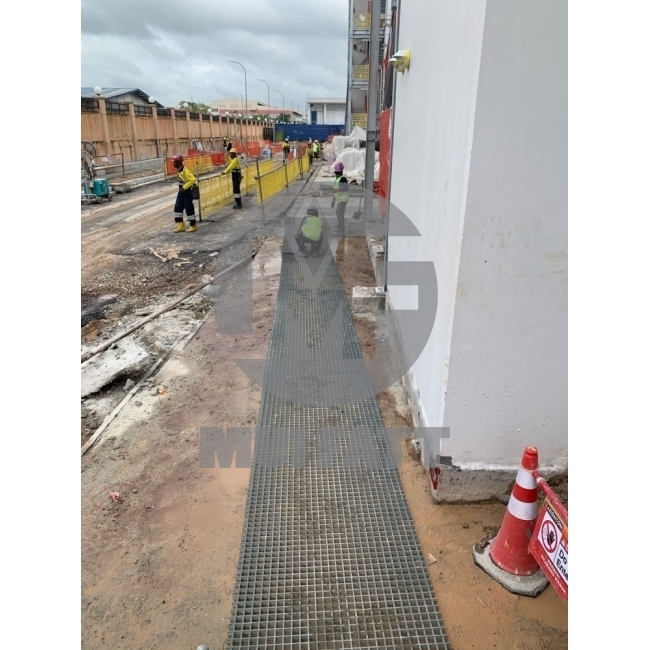

MuiGrate site safety floor sheets are MG25(38/38) FRP (fibreglass) molded grating panels laid straight on mud to make a firm, non-slip temporary walkway on construction sites. Each 1,220 x 3,660 mm (4 x 12 ft) sheet is 25 mm thick and weighs 55 kg, so two workers can carry and place it.
Water drains through the open mesh and the anti-slip top keeps footing secure in rain. FRP does not rust, so after the job the sheets are lifted, hosed clean and reused on the next site.
Ringkasan: Lantai keselamatan tapak binaan MuiGrate MG25(38/38): jeriji FRP 25 mm, 4 x 12 kaki (55 kg), diletak terus atas lumpur tanpa tapak atau pengikat. Air mengalir melalui jaring. Boleh dicuci dan diguna semula.
Specifications
| Model | MG25(38/38) |
|---|---|
| Use | Temporary site safety floor sheet / walkway mat |
| Height (thickness) | 25 mm (1 in) |
| Mesh | 38 x 38 mm square |
| Open area | 69% |
| Sheet size | 1,220 x 3,660 mm (4 x 12 ft); cut sizes on request |
| Weight | 55 kg per sheet (12.32 kg/m²) |
| Installation | Lay directly on mud or ground, end to end; no base or fixings |
| Surface | Concave anti-slip top |
| Colour | Grey (standard), yellow, green |
| Standard | SIRIM product certification to BS 4592-6:2008, licence PC013894 |
| Made by | Y.T. Fibreglass Industries Sdn Bhd, Port Klang |
How to Use
- Lay the sheets end to end along the walking route, straight on the ground.
- Water drains through; no base, pegs or fixings are needed.
- After the job, lift the sheets, hose them down and move them to the next site.
Read how it works on site in our case study: Muddy construction sites and MuiGrate MG25/38 →
Why FRP
- Reusable: FRP does not rust or rot, so sheets move from site to site.
- Light: 55 kg per full sheet, carried by two workers.
- Drains: 69% open mesh lets rain and mud water through.
- Anti-slip: concave top keeps boots from slipping.
Where It Is Used
- Walkways across muddy construction sites
- Temporary access to site offices and stores
- Wet work areas in rainy season
Questions and Answers
Do the sheets need a base or fixings?
No. Lay them straight on the mud, end to end.
Can machinery drive over them?
No. They are pedestrian walkway sheets, not for vehicles or machinery.
How do we clean them?
Lift them and hose them down; they are ready for the next site.
Why MG25(38/38)?
It is the lightest square-mesh MuiGrate panel, light to carry yet firm underfoot.
Berapa harga lantai keselamatan FRP?
Harga bergantung kepada saiz, kuantiti, warna dan resin. Hubungi Mui Fatt untuk sebut harga terkini.
Related Products
Compare all thicknesses and meshes on the MuiGrate molded FRP grating range → or use the MuiGrate FRP grating selection guide →
Send us your sizes, quantity and site for a quotation: Get a Quote →
