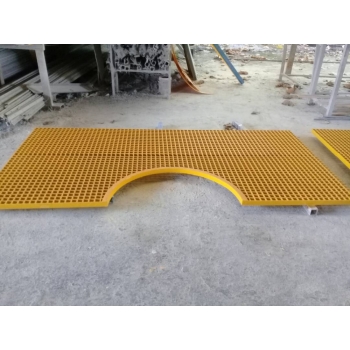

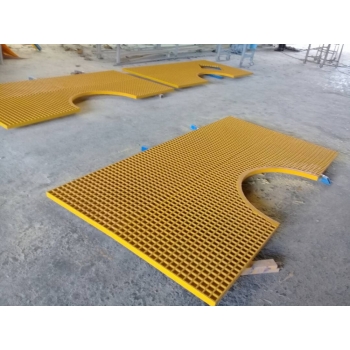

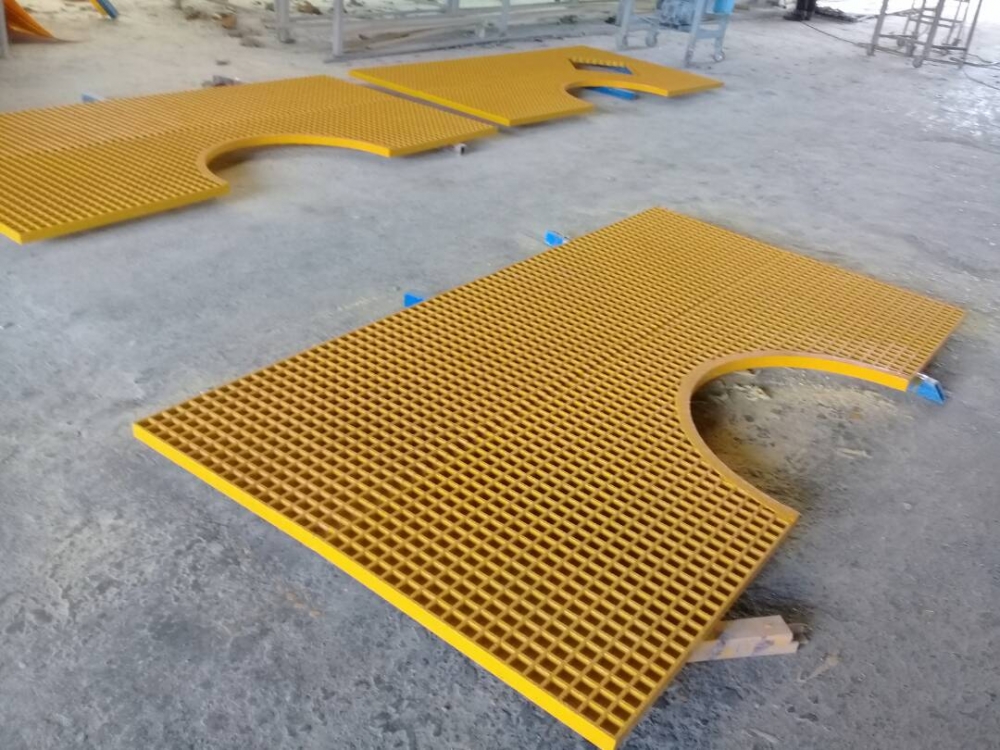

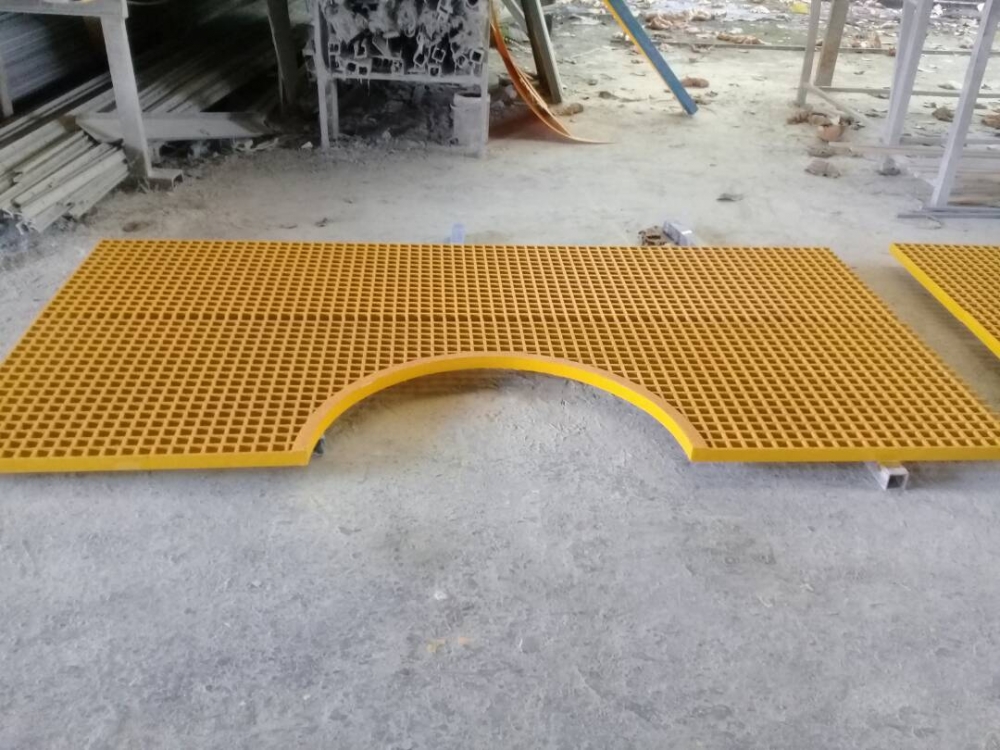

MG 38-38 FRP (GRP) molded grating in safety yellow, 38 mm thick with 38 x 38 mm mesh, in the large 1,527 x 4,000 mm panel or the 1,220 x 3,660 mm panel. Gritted or smooth top, cut to size.

SKU :

MG 38-38 Y

Quantity :

Send Whatapps

PDF download :

Download PDF

MG 38-38 FRP Molded Grating 38 mm Yellow, Large Panel 1,527 x 4,000 mm

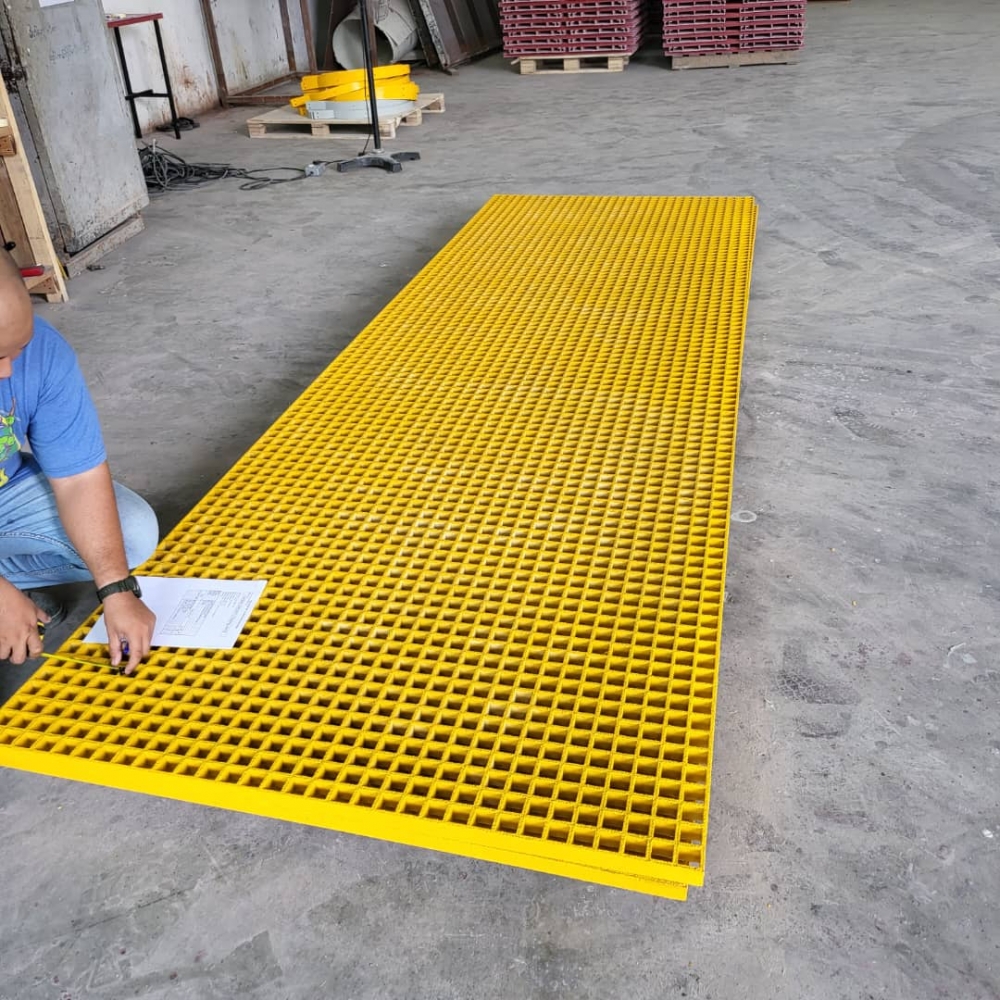

This is MuiGrate MG 38-38 FRP (also called GRP) molded grating in safety yellow: 38 mm thick, 38 x 38 mm square mesh, made in the large 1,527 x 4,000 mm panel as well as the standard 1,220 x 3,660 mm panel. The yellow pigment runs through the resin, so the colour does not wear off like paint.

Yellow grating marks walkways, escape routes and hazard zones. As a walkway, 38 mm grating spans up to 1,219 mm between supports for foot traffic. It is SIRIM certified to BS 4592-6:2008.

Ringkasan: Jeriji FRP (GRP) acuan MG 38-38 warna kuning, tebal 38 mm, jaring 38 x 38 mm, panel besar 1,527 x 4,000 mm atau 1,220 x 3,660 mm. Diperakui SIRIM.

Specifications

Model	MG 38-38 (MG38(38/38)), yellow
Height (thickness)	38 mm (1.5 in)
Mesh	38 x 38 mm square
Open area	69%
Panel sizes	1,527 x 4,000 mm (large) or 1,220 x 3,660 mm (4 x 12 ft, 90 kg); cut to size
Weight	20.16 kg/m²
Resin	Orthophthalic, isophthalic or vinyl ester (most chemical resistant); fire-retardant version of each
Colour	Yellow (grey, green and others on request)

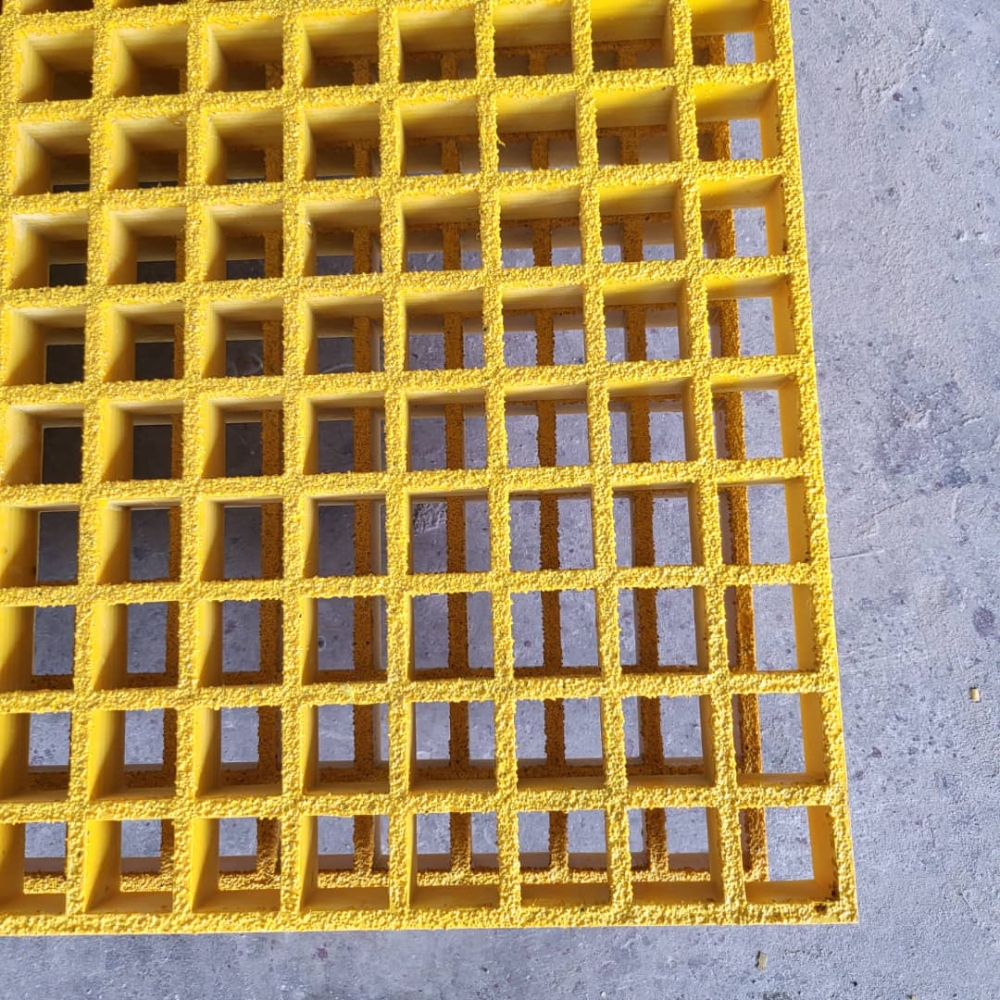

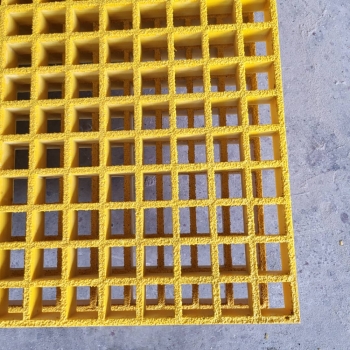

Surface	Concave anti-slip, or gritted
Standard	SIRIM product certification to BS 4592-6:2008, licence PC013894
Load use	Pedestrian traffic only (BS 4592)
Made by	Y.T. Fibreglass Industries Sdn Bhd, Port Klang

Support Span Guide (Pedestrian Use)

Load	Maximum support span
100 kg foot traffic	up to 1,219 mm
500 kg	up to 914 mm
1,000 kg	up to 610 mm

Span is the clear gap between supports. Static loads at 1% deflection, safety factor 2.0. Pedestrian traffic only (BS 4592), not vehicles.

Why FRP

Light: 20.16 kg/m², easy to lift and fit by hand.
No rust, no scrap value: no corrosion in wet or salty areas, and nothing for thieves to sell.
Non-conductive: safe near electrical equipment.
Anti-slip: concave top as standard; gritted top on request.

Where It Is Used

Yellow safety walkways and escape routes
Platforms and mezzanines in plants
Drain covers in marked zones

Questions and Answers

Is GRP the same as FRP?
Yes. GRP (glass reinforced plastic) and FRP (fibre reinforced plastic) are two names for the same fibreglass material.

Which panel sizes are there?
1,527 x 4,000 mm and 1,220 x 3,660 mm, or cut to your size.

Is the yellow painted?
No. The pigment is in the resin, so it goes right through the grating.

Can vehicles drive on it?
No. MuiGrate FRP grating is designed for pedestrian traffic only, as BS 4592 sets out, not for cars, lorries or forklifts.

Berapa harga jeriji FRP kuning?
Harga bergantung kepada saiz, kuantiti, warna dan resin. Hubungi Mui Fatt untuk sebut harga terkini.
