MuiGrate FRP Rooftop Walkway for Solar Panel Maintenance
MuiGrate FRP molded grating cut into rooftop walkways between solar panel rows, so maintenance crews walk safely without stepping on panels. Light, rust-free, non-conductive and anti-slip.
MuiGrate FRP Rooftop Walkway for Solar Panel Maintenance

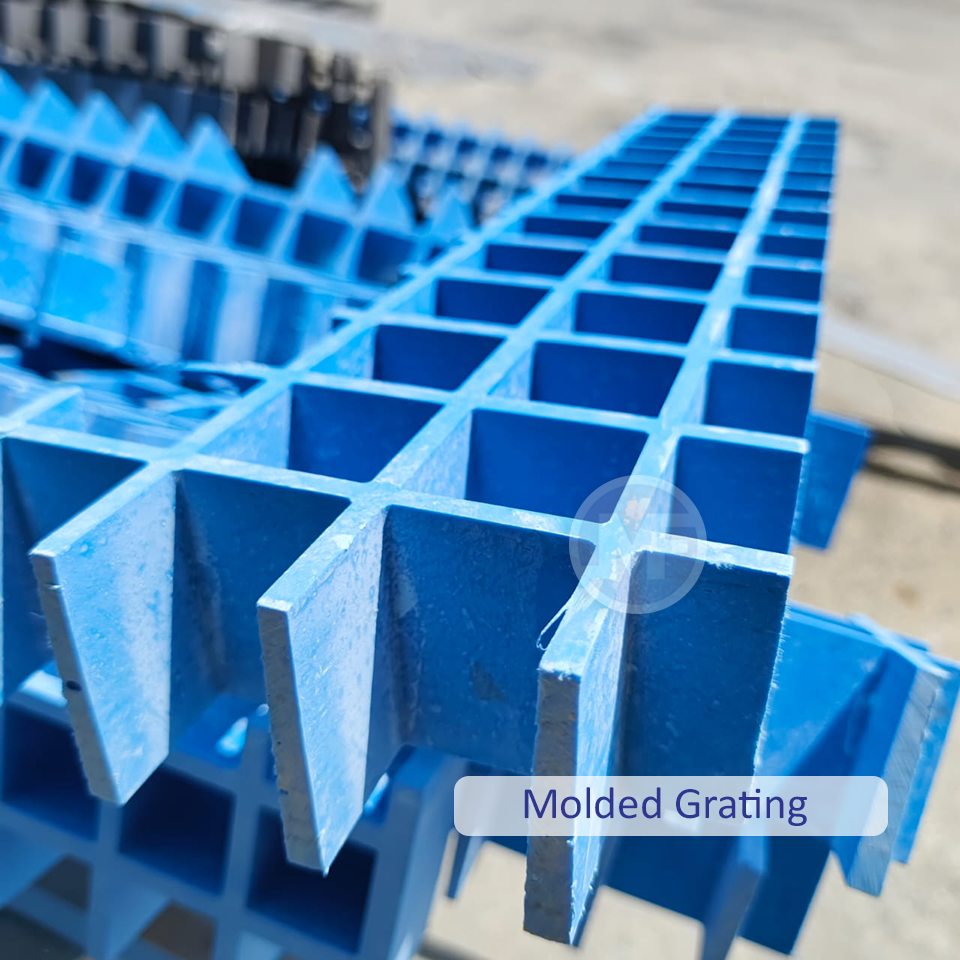

MuiGrate FRP rooftop walkways are FRP (fibreglass) molded grating strips cut to run between rows of solar panels, giving cleaning and maintenance crews a safe, anti-slip path without stepping on the panels. A full 4 x 12 ft MG25(38/38) panel weighs only 55 kg, so walkways are carried onto roofs by hand.
FRP does not rust on exposed roofs, does not conduct electricity near the solar cabling, and its open mesh lets rain drain away. Strips are cut at our Port Klang factory to your row widths and lengths.
Ringkasan: Laluan bumbung FRP MuiGrate di antara barisan panel solar untuk kerja penyelenggaraan. Ringan, tidak berkarat, tidak mengalirkan elektrik dan anti-gelincir. Dipotong ikut saiz.
Specifications
| Type | Rooftop walkway strips from MuiGrate FRP molded grating |
|---|---|
| Typical model | MG 25-38 (25 mm) or MG 38-38 (38 mm), chosen by support span |
| Support span | 25 mm: up to 610 mm; 38 mm: up to 914 mm for walkways |
| Weight | MG 25-38: 12.32 kg/m² (55 kg per 4 x 12 ft panel) |
| Size | Cut to your row widths and lengths, to ±5 mm |
| Colour | Grey, yellow or green |
| Electrical | Non-conductive |
| Standard | SIRIM product certification to BS 4592-6:2008, licence PC013894 |
| Made by | Y.T. Fibreglass Industries Sdn Bhd, Port Klang |
Why FRP
- Light: no crane needed to get it onto the roof.
- Non-conductive: safe beside solar cables and inverters.
- No rust: lasts on exposed roofs.
- Anti-slip: concave top for wet mornings.
Where It Is Used

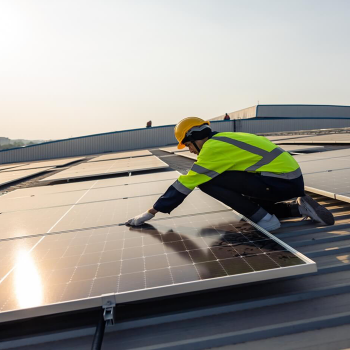

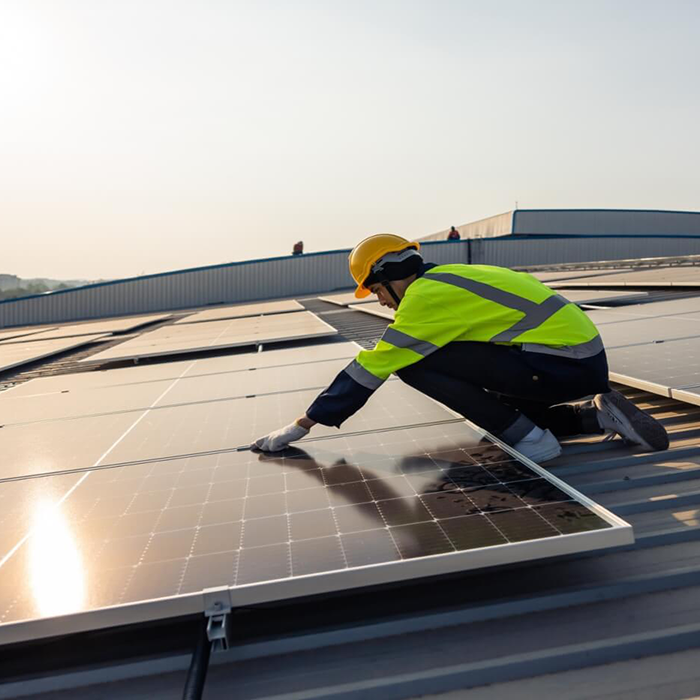

- Walkways between rooftop solar panel rows
- Access paths on factory and warehouse roofs
- Solar farm maintenance paths
Questions and Answers
Which thickness do I need?
Use 25 mm grating where supports are up to 610 mm apart, and 38 mm where they are up to 914 mm apart.
How is the walkway fixed?
With SS316 stainless steel clips to the supports or mounting rails.
Can you cut strips to our layout?
Yes. Send the row widths and lengths and we cut the strips at the factory.
Berapa harga laluan bumbung solar FRP?
Harga bergantung kepada saiz, kuantiti, warna dan resin. Hubungi Mui Fatt untuk sebut harga terkini.
