MG 25-38 FRP Molded Grating 25 mm, 38 x 38 mm Square Mesh, Standard Panel 4 x 12 ft

MG 25-38 FRP Molded Grating 25 mm, 38 x 38 mm Square Mesh, Standard Panel 4 x 12 ft

MG 25-38 MuiGrate FRP molded grating, 25 mm thick with 38 x 38 mm, full panel 1,220 x 3,660 mm (4 x 12 ft), 55 kg. SIRIM certified to BS 4592-6:2008. Cut to size on request.

SKU :

MG 25-38

Quantity :

Send Whatapps

PDF download :

Download PDF

MG 25-38 FRP Molded Grating 25 mm, 38 x 38 mm Square Mesh, Standard Panel 4 x 12 ft

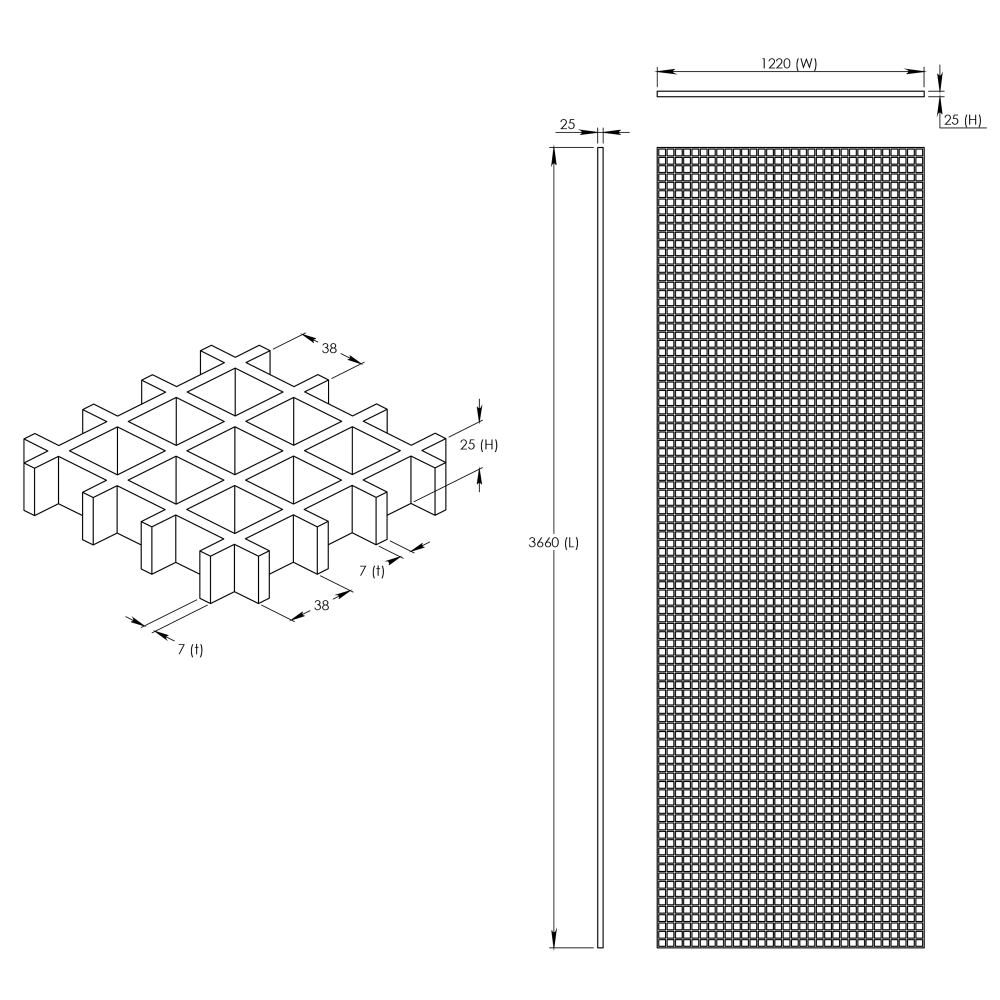

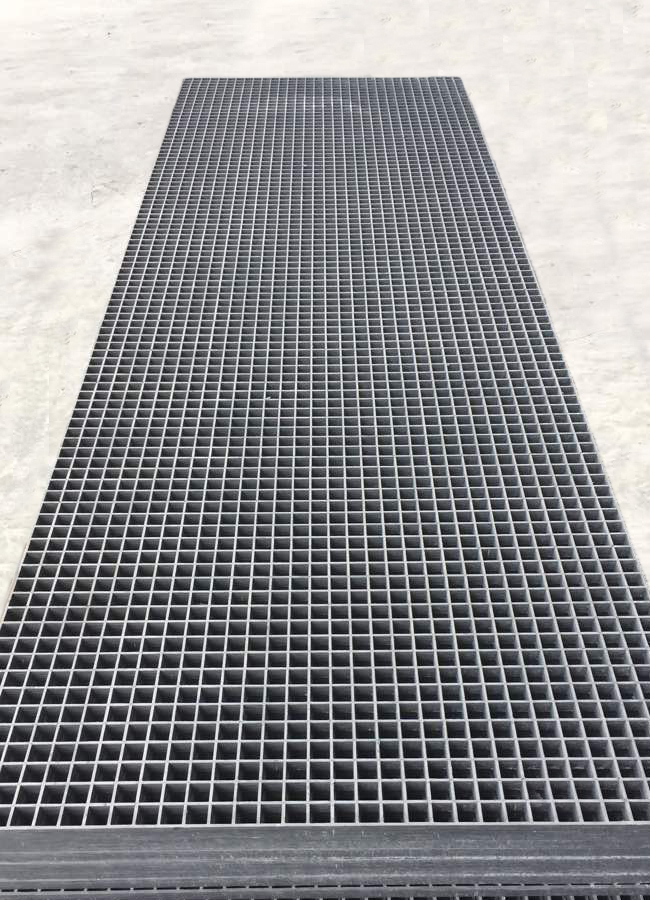

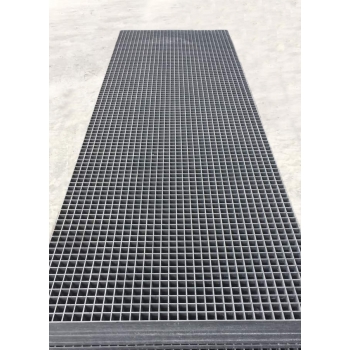

The MG 25-38 is a 25 mm thick MuiGrate FRP (fibreglass) molded grating with 38 x 38 mm square mesh. A full standard panel measures 1,220 x 3,660 mm (4 x 12 ft) and weighs 55 kg. It is made in one piece in Port Klang, Selangor, and is SIRIM certified to BS 4592-6:2008.

This page is the full panel. We also cut it at the factory to any size up to the full panel. As a walkway, MG 25-38 supports up to 610 mm apart for 100 kg foot traffic and 457 mm for 500 kg; 1,000 kg loads are not recommended at this thickness.

Ringkasan: Jeriji FRP (gentian kaca) acuan MG 25-38, tebal 25 mm, jaring 38 x 38 mm, panel penuh 1,220 x 3,660 mm, berat 55 kg. Diperakui SIRIM (BS 4592-6:2008). Tidak berkarat dan boleh dipotong ikut saiz.

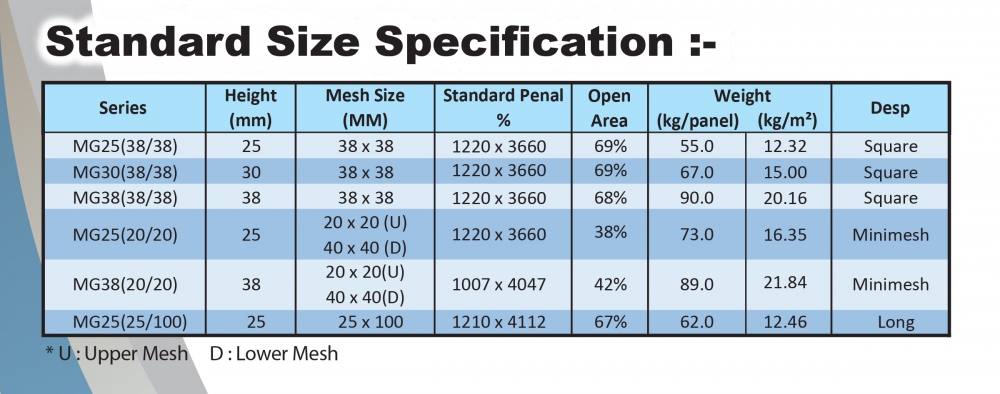

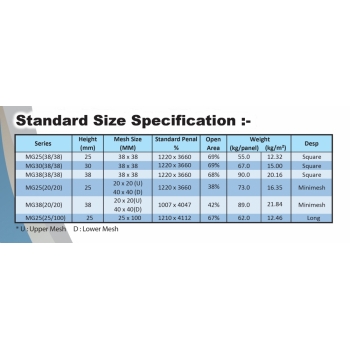

Specifications

Model	MG 25-38 (MG25(38/38))
Type	MuiGrate FRP molded grating (one-piece open mesh)
Height (thickness)	25 mm (1 in)
Mesh	38 x 38 mm square mesh
Open area	69%
Standard panel	1,220 x 3,660 mm (4 x 12 ft)
Weight	55 kg per full panel (12.32 kg/m²)
Resin	Orthophthalic, isophthalic or vinyl ester (most chemical resistant); fire-retardant version of each
Colour	Grey (standard), yellow, green; other colours on request
Surface	Concave anti-slip top; gritted on request
Fixing	SS316 stainless steel clips (M clip or disc clip)
Standard	SIRIM product certification to BS 4592-6:2008, licence PC013894
Load use	Pedestrian traffic only (BS 4592)
Made by	Y.T. Fibreglass Industries Sdn Bhd, Port Klang

Support Span Guide (Pedestrian Use)

Load	Maximum support span
100 kg foot traffic	up to 610 mm
500 kg	up to 457 mm
1,000 kg	Not recommended

Span is the clear gap between supports. Static loads at 1% deflection, safety factor 2.0. Pedestrian traffic only (BS 4592), not vehicles.

Why FRP

One piece: no welds or joints, strong in both directions, easy to cut around pipes.
Light: 12.32 kg/m², easy to lift and fit by hand.
No rust, no scrap value: no corrosion in wet or salty areas, and nothing for thieves to sell.
Non-conductive: safe near electrical equipment.
Anti-slip: concave top as standard; gritted top on request.

Where It Is Used

Walkways and platforms in sewage and water treatment plants
Drain and trench covers cut to the recess
Factory floors and mezzanines in wet or chemical areas
Cooling tower and rooftop access platforms
Coastal and marine sites where steel rusts

Questions and Answers

How big is a full MG 25-38 panel?
1,220 x 3,660 mm (4 x 12 ft), 55 kg. The tolerance is ±5 mm on length and width.

Can you cut it to my size?
Yes. We cut any width and length up to a full panel at the factory, to ±5 mm. Pieces smaller than 300 x 300 mm need a check with us first. Ready sizes are 4 x 8 ft and 4 x 4 ft.

How far apart can the supports be?
For 100 kg foot traffic, up to 610 mm. See the span guide above for heavier loads.

Can cars or lorries drive on it?
No. MuiGrate FRP grating is designed for pedestrian traffic only, as BS 4592 sets out. For areas with vehicles, use a steel or concrete cover.

Berapa harga jeriji FRP MG 25-38?
Harga bergantung kepada saiz, kuantiti, warna dan resin. Hubungi Mui Fatt untuk sebut harga terkini.
