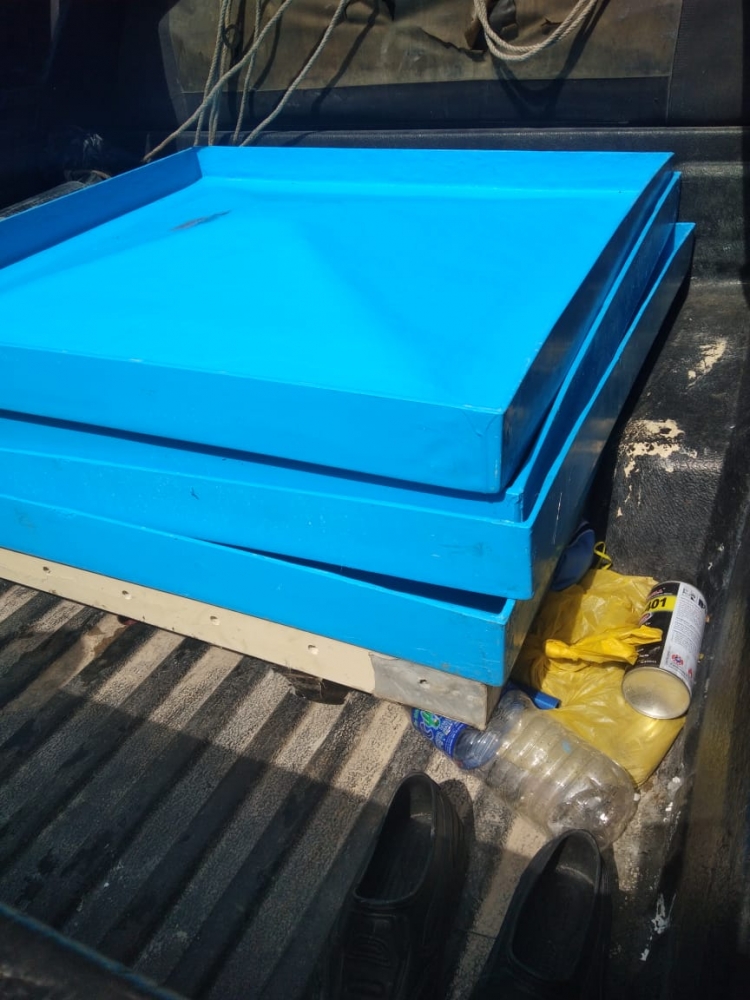

FRP Sectional Panel – Side Panel 1m x 1m
Loose FRP/GRP side panel, 1 m x 1 m, for building or repairing sectional panel water tanks. Hand lay-up, 5 to 12 mm thick, made by Y.T. Fibreglass Industries to MS 1390:2010.
FRP Side Panel 1 m x 1 m for Sectional Water Tanks
The FRP-SP-SIDE-1x1 is a loose FRP/GRP side panel, 1 m x 1 m, used for tank walls in the 1 m, 2 m, 2.5 m, 3.5 m and 4 m height series, usually as the top row of side panels. It is made by hand lay-up (contact moulding) by Y.T. Fibreglass Industries Sdn Bhd, the maker of Mui Fatt sectional panel water tanks certified to MS 1390:2010. Buy it to build a new tank, extend one, or replace a cracked or leaking panel.
Ringkasan
Panel sisi FRP/GRP 1 m x 1 m untuk dinding tangki air panel siri ketinggian 1 m, 2 m, 2.5 m, 3.5 m dan 4 m. Panel dibuat secara hand lay-up oleh Y.T. Fibreglass Industries, pembuat tangki air panel Mui Fatt mengikut MS 1390:2010. Sesuai untuk tangki baharu, membesarkan tangki atau mengganti panel yang retak atau bocor.
Specifications
| Model | FRP-SP-SIDE-1x1 |
|---|---|
| Panel type | Side Panel (wall) |
| Size | 1 m x 1 m |
| Thickness | 5 to 12 mm |
| Weight | At least 8 kg per panel |
| Material | FRP/GRP: unsaturated polyester resin with E-glass chopped strand mat and woven roving |
| Process | Hand lay-up (contact moulding) |
| Joint | Bolted flange with sealant gasket |
| Manufacturer | Y.T. Fibreglass Industries Sdn Bhd |
Panel Material Properties
| Specific gravity | 1.8 |
|---|---|
| Glass content | More than 30% |
| Tensile strength | 1,020 kg/cm² |
| Flexural strength | 1,650 kg/cm² |
| Compressive strength | 3,010 kg/cm² |
| Water absorption | Less than 0.2% |
| Light transmittance | Nil (blocks light, which helps prevent algae growth) |
Questions About This Panel
Which tank heights use the 1 m x 1 m side panel?
The 1 m and 2 m tanks use only 1 m x 1 m side panels. The 2.5 m, 3.5 m and 4 m tanks combine them with 1 m x 1.5 m panels.
Will this panel fit my existing tank?
It fits Mui Fatt and Y.T. Fibreglass sectional tanks. For a tank from another maker, send us a photo, the panel size and the bolt hole spacing so we can check before you order.
Can you replace the panel for me?
Yes. Our team can drain the tank, exchange the panel and fit new gaskets and bolts. See panel tank refurbishment and panel exchange.
Berapa harga panel sisi FRP 1m x 1m?
Harga bergantung kepada saiz panel, kuantiti, lokasi tapak dan sama ada pemasangan diperlukan. Hubungi Mui Fatt untuk sebut harga terkini. Get a Quote →
For materials, bracing, installation steps, warranty and certificates, see the full FRP/GRP Sectional Panel Water Tank guide. SPAN and SIRIM documents are on our certificate page.
