FRP Lamination for Fish Ponds
FRP lamination for fish ponds is a seamless fiberglass lining of general purpose polyester (GP) resin and glass mat laid by hand inside a concrete pond to stop leaks. The mat follows the curves of the pond and bridges small cracks, and the lining needs no maintenance as long as it holds water. Mui Fatt lines ponds on site.
Ringkasan: Lapisan fiberglass (FRP) untuk kolam ikan konkrit. Resin GP dan tikar gentian kaca membentuk satu lapisan kalis air tanpa sambungan untuk menghentikan kebocoran. Kerja dibuat di tapak, dan lapisan tidak memerlukan penyelenggaraan selagi ia menakung air.
Specifications
| Substrate | Concrete fish ponds |
|---|---|
| Lining build-up | 1 coat of resin primer; plies of 450 g/m² E-glass chopped strand mat (CSM); 1 ply of surface veil; 1 coat of waxed resin topcoat |
| Number of plies | Minimum 1 ply recommended; usually up to 3 plies |
| Lining thickness | About 1 mm per ply, so usually about 1 mm to 3 mm |
| Resin | General purpose polyester (GP) |
| Colour | Natural resin colour (clear) or grey |
| Typical properties | Tensile strength 9,000 psi; tensile modulus 1,000,000 psi; Barcol hardness above 30; adhesion above 290 psi on sweep-blasted concrete |
| Curing | Primer tacky in about 1 to 2 hours; each laminate stage touch dry in about 3 to 4 hours; topcoat left about 12 hours |
| Back in service | We recommend waiting 48 hours after the topcoat before filling |
| Inspection | Visual inspection for blisters, cracks, trapped air and irregularities; ply count during lamination |
| Work site | On site |
How we line a fish pond
- Site visit: our technical staff check the area, and access for workers, before work starts.
- Surface preparation: the concrete is blasted to remove laitance and loose material, and dust is vacuumed off.
- Priming: one coat of resin primer by brush or roller, left about 1 to 2 hours until tacky.
- Levelling: small holes and unevenness are filled with FRP putty. Large concrete defects must be repaired by the owner first.

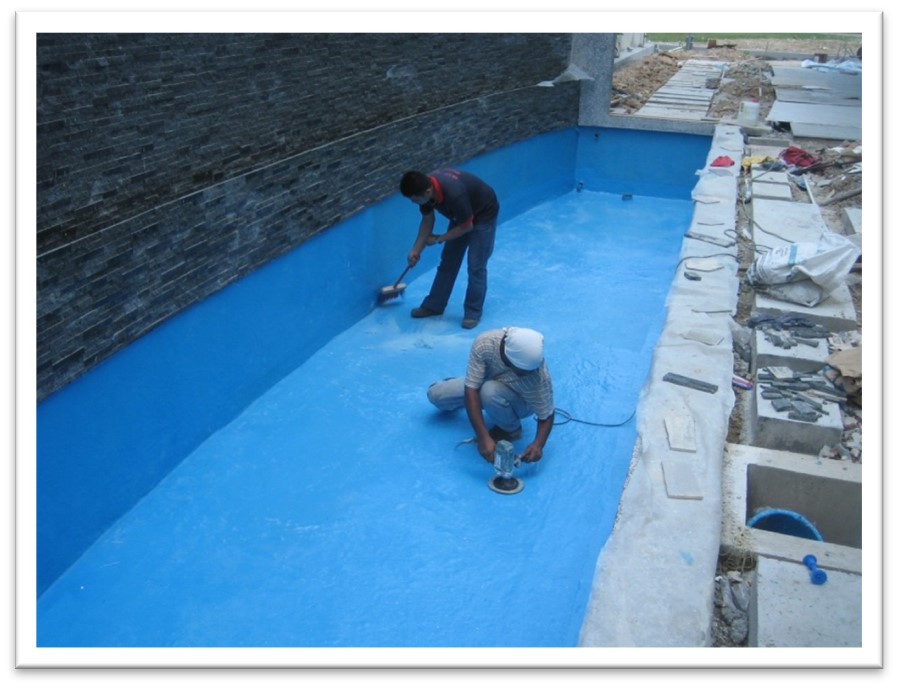

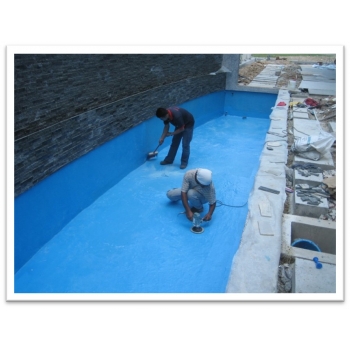

- Lamination: each ply of glass mat is laid into wet resin, wetted through and rolled to remove trapped air, then the surface veil.

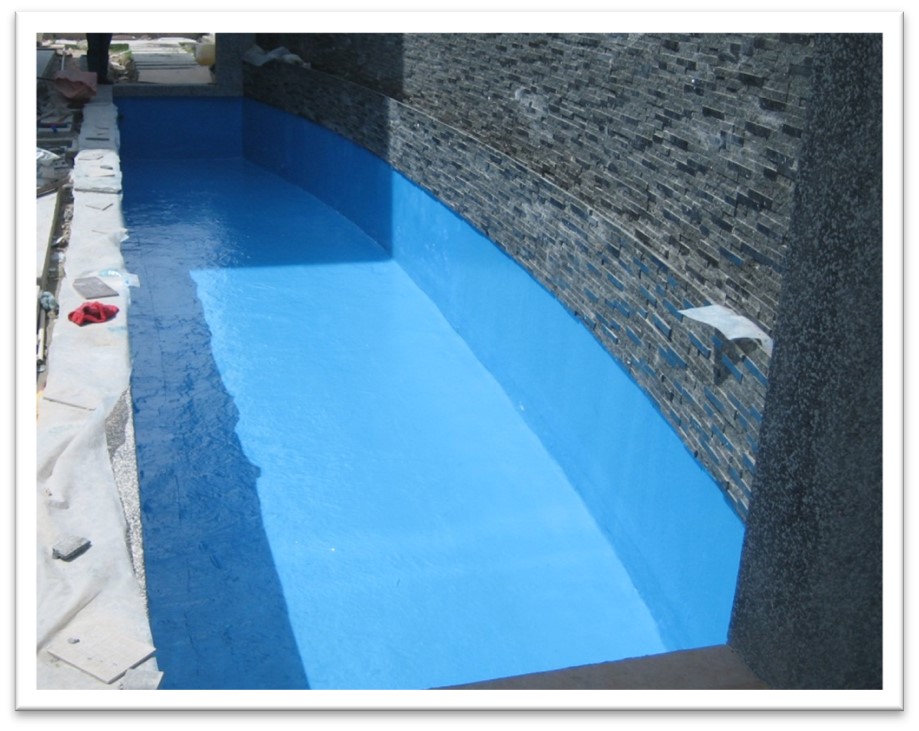

- Topcoat: a resin-rich waxed topcoat, left to cure about 12 hours.
- Inspection: visual inspection for blisters, cracks and trapped air, with the plies counted as they are laid.
New concrete must cure for about 28 days first. The pond must be empty and dry, any groundwater leaking in must be stopped, and we do not work in rain.
Applications

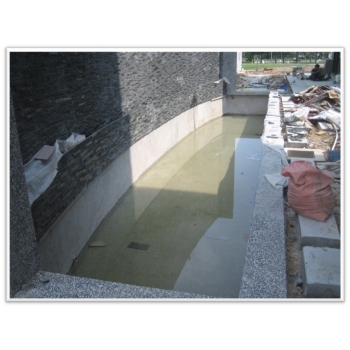

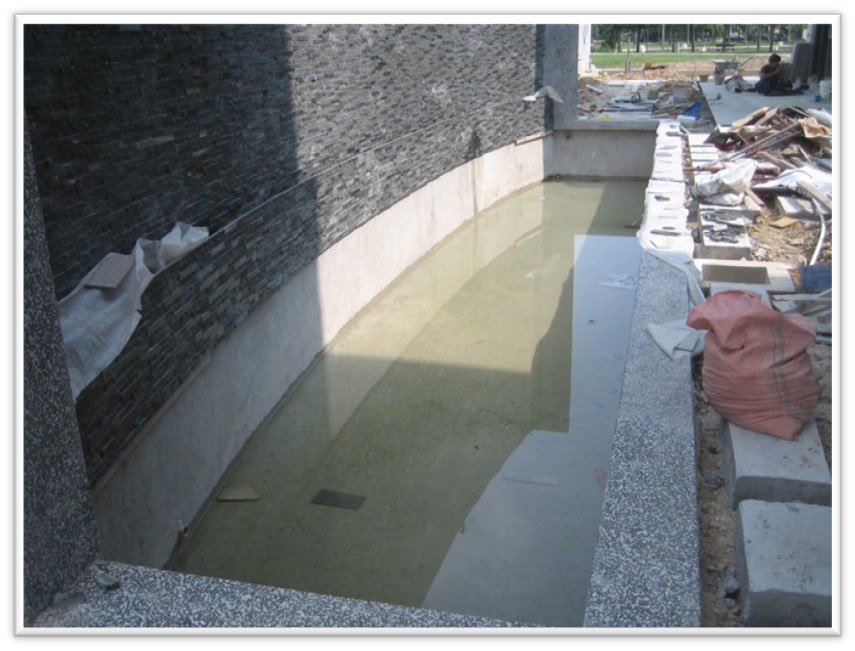

- Concrete fish ponds at homes

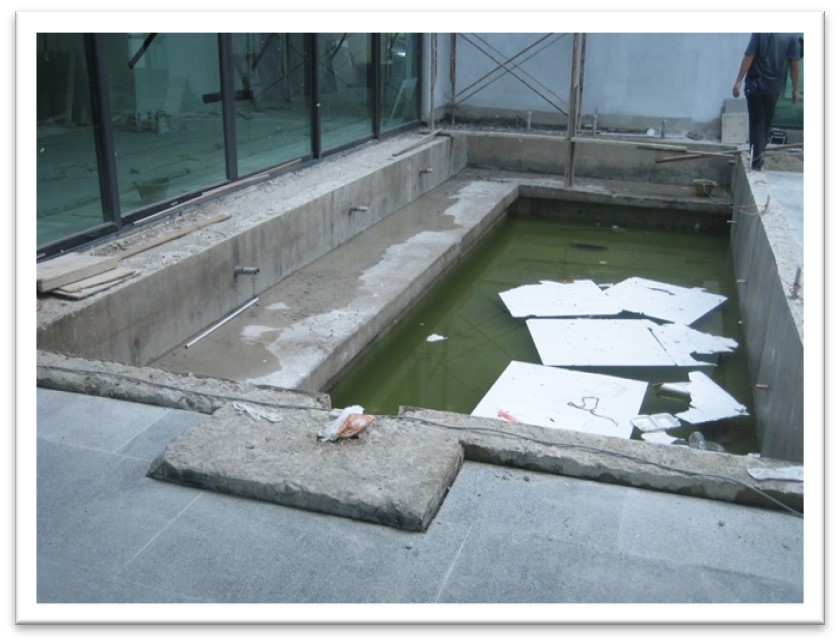

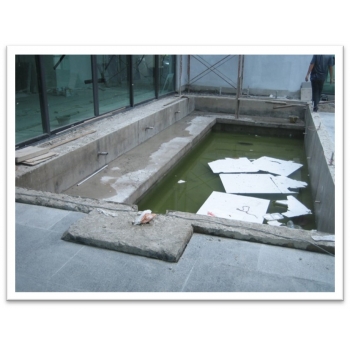

- Older concrete ponds that have started to leak
- Old FRP pond linings that need repair or relining
Other FRP lamination pages
- FRP Lamination (FRP Lining) Service →
- FRP Lamination for Concrete Swimming Pools →
- FRP Lamination for Roof Waterproofing →
- All FRP Lamination Products →
Questions About Fish Pond Lamination
How soon can the pond be filled?
We recommend waiting 48 hours after the topcoat before filling.
Does the lining need maintenance?
No. A pond lining needs no maintenance as long as it holds water.
Can you fix an old leaking FRP pond?
Yes. We repair and reline old FRP linings. Send us photos and the pond size.
Berapa harga lapisan fiberglass kolam ikan?
Hubungi kami untuk harga terkini. Harga bergantung pada keluasan permukaan, bilangan lapis dan jenis resin.
Contact Mui Fatt for a quotation: Get a Quote →
