13,500L FRP/GRP Sectional Panel Water Tank 3m x 3m x 1.5mH
13,500 litre (2,970 imperial gallon) FRP/GRP sectional panel water tank, 3 m x 3 m x 1.5 m high. Hand lay-up panels by Y.T. Fibreglass Industries, SIRIM certified to MS 1390:2010 and registered with SPAN.
13,500 Litre FRP/GRP Sectional Panel Water Tank, 3 m x 3 m x 1.5 m
The FRP-ST-3x3x1.5 is a 13,500 litre (2,970 imperial gallon) FRP/GRP sectional panel water tank measuring 3 m long, 3 m wide and 1.5 m high. It is built on site from 9 base panels (1 m x 1 m) and 12 side panels (1 m x 1.5 m high), with 2 m x 1 m roof panels and a 1 m x 1 m manhole panel. The panels are made by Y.T. Fibreglass Industries Sdn Bhd, the tank is SIRIM QAS certified to MS 1390:2010 and registered with SPAN, and Mui Fatt Marketing Sdn Bhd supplies and installs it across Peninsular Malaysia.
Specifications
| Model | FRP-ST-3x3x1.5 |
|---|---|
| Size (L x W x H) | 3 m x 3 m x 1.5 m |
| Nominal capacity | 13,500 litres (2,970 imperial gallons) |
| Height series | 1.5 m |
| Panels | 9 base panels (1 m x 1 m) and 12 side panels (1 m x 1.5 m high); roof 9 m² |
| Panel thickness | Base 5 to 9 mm, side 5 to 12 mm, roof from 4 mm |
| Panel weight | About 270 kg minimum (panels only) |
| Water weight when full | 13,500 kg |
| Standard | MS 1390:2010, SIRIM QAS certified; registered with SPAN |
| Supplied with | Steel skid base, air vent, internal and external aluminium ladder, FRP water level indicator |
| Warranty | 5 years outdoor, 10 years indoor |
| Manufacturer | Y.T. Fibreglass Industries Sdn Bhd |

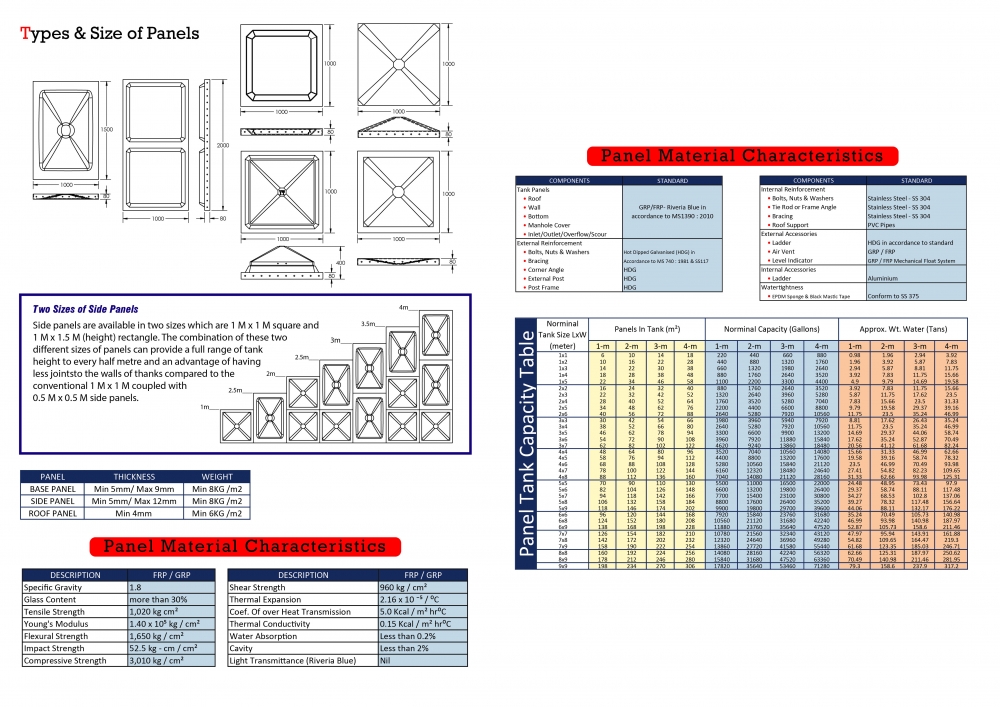

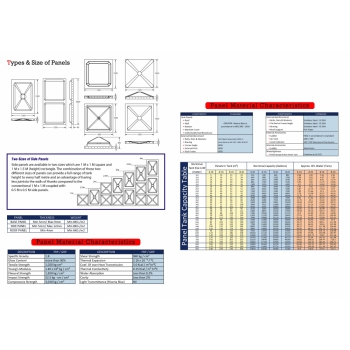

Panel Material Properties
| Specific gravity | 1.8 |
|---|---|
| Glass content | More than 30% |
| Tensile strength | 1,020 kg/cm² |
| Flexural strength | 1,650 kg/cm² |
| Compressive strength | 3,010 kg/cm² |
| Water absorption | Less than 0.2% |
| Light transmittance | Nil (blocks light, which helps prevent algae growth) |
Questions About This Size
How heavy is this tank when full?
About 13,770 kg: 13,500 kg of water plus at least 270 kg of panels, before the steel skid and bracing. Give this load to your engineer for the roof slab or plinth design.
Is this tank suitable for drinking water?
Yes. It is SIRIM QAS certified to MS 1390:2010 and registered with SPAN for potable water storage.
Can the size be changed?
Yes. Length and width change in 1 m steps and height in 0.5 m steps from 1 m to 4 m, so the tank can be planned around your space and capacity.
How long does installation take?
A standard tank typically takes 2 to 4 days to install. You prepare the concrete plinth and arrange unloading and hoisting on site.
Other Sizes in the 1.5 m Height Series
For materials, bracing, installation steps, warranty and certificates, see the full FRP/GRP Sectional Panel Water Tank guide. SPAN and SIRIM documents are on our certificate page.
Contact Mui Fatt for a quotation: Get a Quote →
