MG 30-38 FRP molded grating, 30 mm thick with 38 x 38 mm, made in yellow, green or another colour instead of standard grey. For safety walkways, zone marking and matching site colours.

SKU :

MG 30-38 CC

Quantity :

Send Whatapps

PDF download :

Download PDF

MG 30-38 FRP Molded Grating 30 mm, 38 x 38 mm Square Mesh, Custom Colour

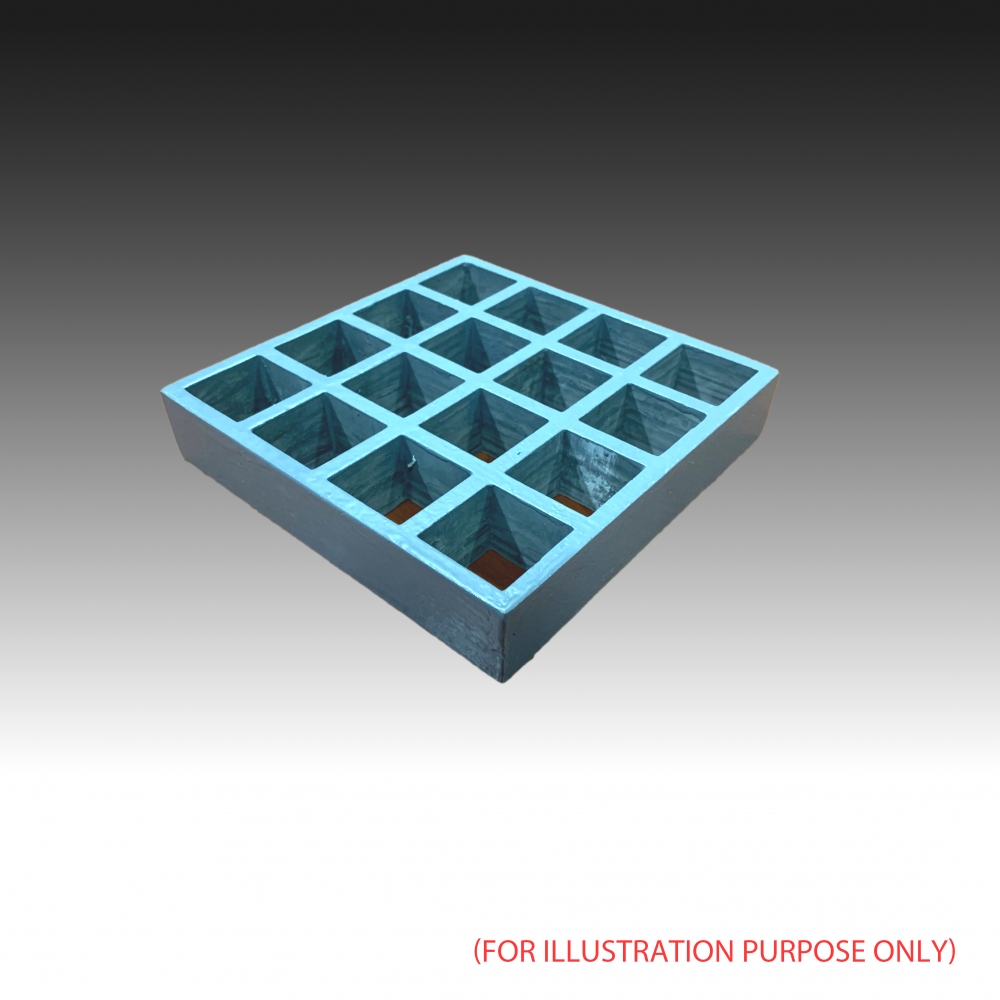

MG 30-38 custom colour is the same 30 mm MuiGrate FRP (fibreglass) molded grating, with 38 x 38 mm square mesh, made with the pigment in the resin, so the colour goes right through the panel. Grey is standard; yellow and green are common choices, and other colours are made on request.

Coloured grating marks escape routes, hazard zones and walkways without paint that wears off. It comes as a full 1,220 x 3,660 mm (4 x 12 ft) panel or cut to your size, and is SIRIM certified to BS 4592-6:2008.

Ringkasan: Jeriji FRP acuan MG 30-38, tebal 30 mm, dalam warna kuning, hijau atau warna pilihan (warna dalam resin, bukan cat). Panel penuh atau dipotong ikut saiz. Diperakui SIRIM.

Specifications

Model	MG 30-38 (MG30(38/38))
Type	MuiGrate FRP molded grating (one-piece open mesh)
Height (thickness)	30 mm (1.2 in)
Mesh	38 x 38 mm square mesh
Open area	69%

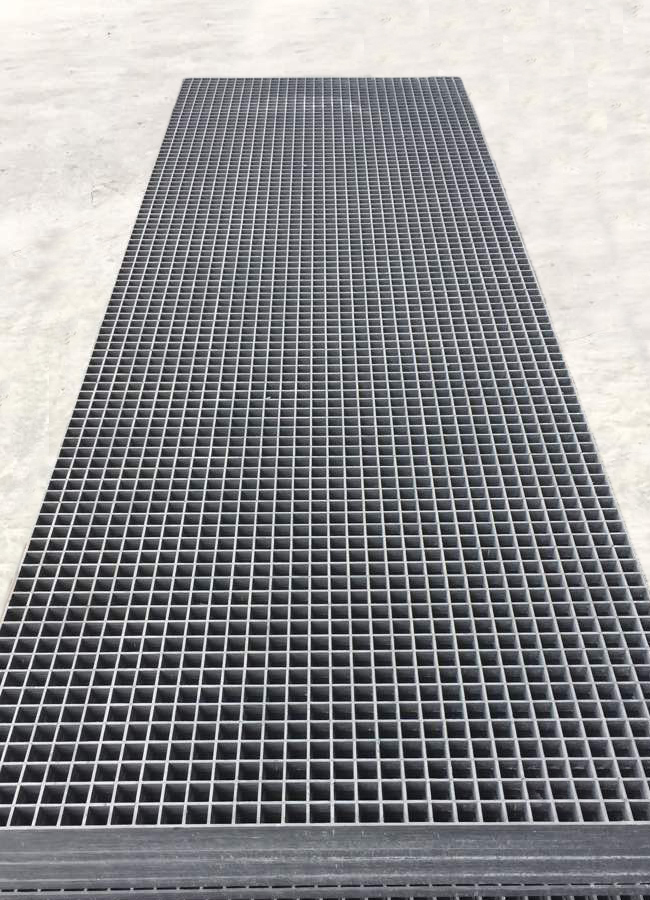

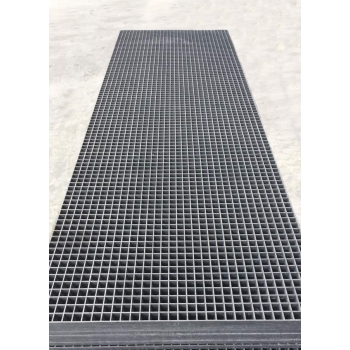

Panel size	1,220 x 3,660 mm (4 x 12 ft), or cut to size
Weight	67 kg per full panel (15.0 kg/m²)
Resin	Orthophthalic, isophthalic or vinyl ester (most chemical resistant); fire-retardant version of each

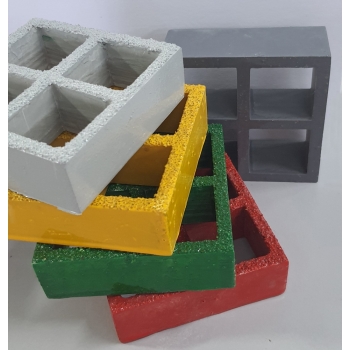

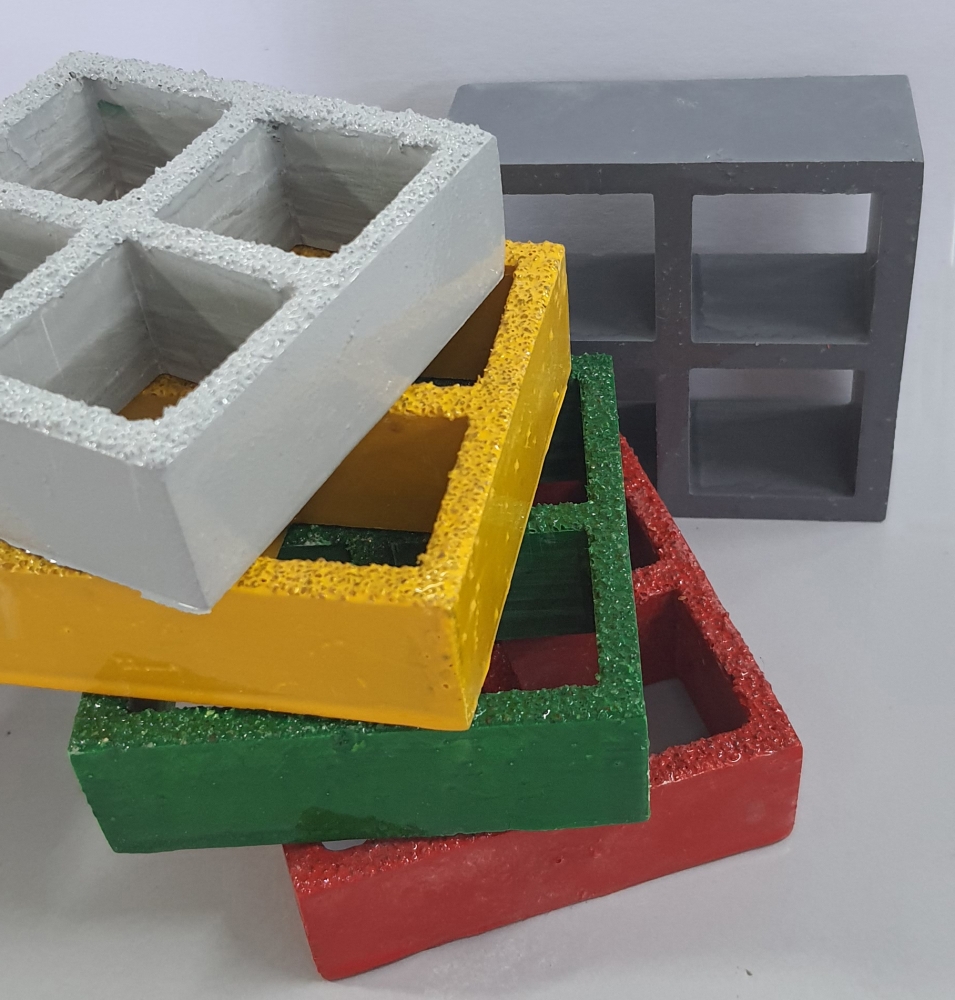

Colour	Yellow, green or other colours on request (grey is standard); pigment in the resin
Surface	Concave anti-slip top; gritted on request
Fixing	SS316 stainless steel clips (M clip or disc clip)
Standard	SIRIM product certification to BS 4592-6:2008, licence PC013894
Load use	Pedestrian traffic only (BS 4592)
Made by	Y.T. Fibreglass Industries Sdn Bhd, Port Klang

Support Span Guide (Pedestrian Use)

Load	Maximum support span
100 kg foot traffic	up to 914 mm
500 kg	up to 610 mm
1,000 kg	up to 457 mm

Span is the clear gap between supports. Static loads at 1% deflection, safety factor 2.0. Pedestrian traffic only (BS 4592), not vehicles.

Why FRP

One piece: no welds or joints, strong in both directions, easy to cut around pipes.
Light: 15.00 kg/m², easy to lift and fit by hand.
No rust, no scrap value: no corrosion in wet or salty areas, and nothing for thieves to sell.
Non-conductive: safe near electrical equipment.
Colour that lasts: the pigment is in the resin, so it does not peel like paint.

Where It Is Used

Yellow safety walkways and escape routes
Green grating in landscaped or water areas
Colour-coded zones in plants and factories

Questions and Answers

Which colours can you make?
Grey is standard. Yellow and green are regular colours; tell us any other colour you need.

Is the colour painted on?
No. The pigment is mixed into the resin, so the colour runs through the grating.

Does colour change the strength?
No. The colour version has the same thickness, mesh and span limits as grey MG 30-38.

Can cars or lorries drive on it?
No. MuiGrate FRP grating is designed for pedestrian traffic only, as BS 4592 sets out. For areas with vehicles, use a steel or concrete cover.

Berapa harga jeriji FRP MG 30-38?
Harga bergantung kepada saiz, kuantiti, warna dan resin. Hubungi Mui Fatt untuk sebut harga terkini.
