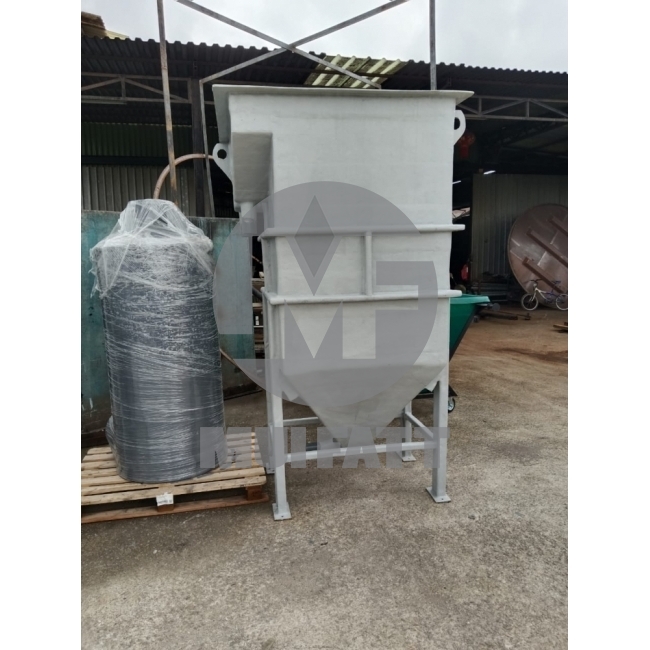

FRP Square Tank with Pyramid Base (Primary Clarifier)
Square open-top FRP tank with a pyramid bottom, used as a primary clarifier or settling tank. Width 1 m to 4 m and height under 4 m, hand laid up and built to your drawing.
FRP Square Tank with Pyramid Base - Compact Primary Clarifier
An FRP square open-top tank over a pyramid-shaped bottom. Solids settle into the point and leave through one outlet, which makes it a compact primary clarifier or settling tank for wastewater and sewage treatment plants. In Malay it is often searched as tangki penjernih FRP.
Ringkasan: Tangki penjernih FRP (gentian kaca) segi empat dengan dasar piramid, untuk penjernih primer dan pemendapan di loji rawatan air sisa. Lebar 1 m hingga 4 m, tinggi kurang daripada 4 m (3 m dicadangkan).
Key Features
- Pyramid bottom: solids settle to a single bottom outlet.
- Hand laid up: built on a wooden mould to your sizes.
- Support options: bare mild steel, mild steel laminated with FRP, or pultruded FRP.
- Resin matched to the liquid: GP, ISO or vinyl ester.
- Corrosion resistant: FRP does not rust like mild steel.
Specifications
| Model | FRP-ST-PB |
|---|---|
| Material | FRP (GRP), glass-fibre reinforced polyester or vinyl ester |
| Shape | Square, open top, pyramid base |
| Dimensions | Width 1 m to 4 m; height under 4 m for road transport, 3 m suggested |
| Support | Bare mild steel, FRP-laminated mild steel or pultruded FRP |
| Typical fittings | Outlet box, bottom outlet, lifting lugs |
| Construction | Hand lay-up on a wooden mould |
| Design standard | Designed to BS 4994 / BS EN 13121; engineering calculation on request |
| Corrosion barrier | Optional resin-rich inner layer with polyester veil, or hybrid build with vinyl ester inside and GP outside |
| Working temperature | GP resin 25°C to 40°C. Vinyl ester about 40°C to 75°C, depending on the chemical |
| Nozzle flanges | Standard off-the-shelf HDPE flanges; FRP flanges on request |
| Options | Cover, fiberglass ladder, railing |
| Quality checks | Barcol hardness test, thickness check and leak test on every tank before delivery |
| Warranty | 1 year standard; extended warranty on request |
Example Capacities
| Plan size | Straight wall | Volume above the pyramid |
|---|---|---|
| 1 m x 1 m | 1 m | about 1,000 L |
| 2 m x 2 m | 2 m | about 8,000 L |
| 3 m x 3 m | 2.5 m | about 22,500 L |
Volumes are approximate and for guidance only. Every tank is built to your sizes.
Applications
- Primary clarifier
- Settling tank
- Wastewater and sewage treatment plants
Resin Selection
- GP (orthophthalic polyester): for water and mild, non-aggressive liquids.
- ISO (isophthalic polyester): a premium polyester with good chemical resistance.
- Vinyl ester: for severe corrosion, including strong acids and alkalis. For solvents, tell us the chemical and we will confirm.
- Hybrid: vinyl ester inside for chemical resistance, GP outside for economy.
Laminate Strength
Test results for the GP laminate used in our Mui Tank range: 103.0 MPa tensile strength (limit 70 min), 182.4 MPa bending strength (limit 100 min) and 0.15% water absorption (limit 1.0 max). Chemical-grade laminate data is available on request.
Installation
- Sit the tank, or its stand, on a level concrete plinth at least 250 mm (10 in) above ground.
- Lift only when empty, using the lifting lugs.
- Support every connecting pipe and valve on its own footing.
What to Tell Us for a Quote
- The chemical or liquid, its concentration and its temperature
- Tank size or drawing, and nozzle positions
- Support type and options such as cover, ladder or railing
FAQ
What is a primary clarifier? The first settling stage in a treatment plant, where heavy solids settle out before further treatment.
Why a pyramid bottom? Solids slide down the four sloping sides to one outlet for easy draw-off.
How tall can it be? Under 4 m for road transport, with 3 m suggested.
Berapa harga tangki penjernih FRP? Harga bergantung kepada saiz, resin dan pilihan tambahan. Hubungi Mui Fatt untuk sebut harga terkini.
Adakah Mui Fatt menghantar ke seluruh Malaysia? Ya. Kami menghantar ke seluruh Semenanjung Malaysia, dan ke Sabah serta Sarawak melalui ejen penghantaran. Tempoh siap biasanya 7 hingga 14 hari bekerja.
Ordering and Delivery
Lead time is typically 7 to 14 working days, subject to the production schedule. We deliver across Peninsular Malaysia, and to Sabah and Sarawak through a freight agent. Manufactured by Y.T. Fibreglass Industries Sdn Bhd, a Mui Fatt subsidiary.
