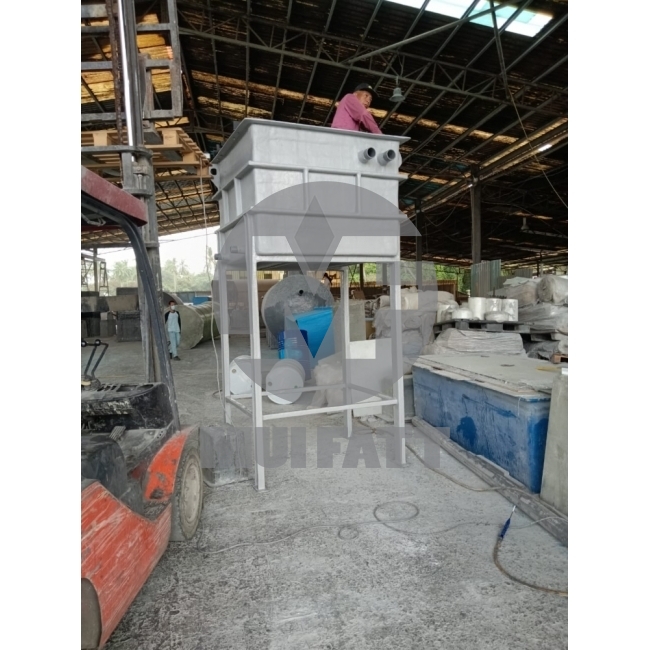

FRP Rectangular Open-Top Tank with Mild Steel Support and Partition
Rectangular open-top FRP tank with an internal FRP partition, raised on a mild steel stand. Popular as a PAC chemical holding tank. Width 1 m to 4 m and length up to 8 m, built to your drawing.
FRP Rectangular Open-Top Tank with Partition - PAC Chemical Holding Tank
An FRP rectangular open-top tank split into compartments by an FRP partition and raised on a steel stand. Customers often order it as a PAC chemical holding tank for water and wastewater treatment plants. In Malay it is often searched as tangki kimia FRP.
Ringkasan: Tangki kimia FRP (gentian kaca) segi empat tepat, atas terbuka, dengan sekatan dalaman dan rangka besi lembut. Sesuai sebagai tangki simpanan kimia PAC. Lebar 1 m hingga 4 m, panjang sehingga 8 m, tinggi kurang daripada 4 m.
Key Features
- Internal partition: divides the tank into compartments.
- Raised stand: mild steel, bare or laminated with FRP, or pultruded FRP.
- Hand laid up: built on a wooden mould to your sizes.
- Resin matched to the chemical: GP, ISO or vinyl ester.
- Corrosion resistant: FRP does not rust like mild steel.
Specifications
| Model | FRP-RECT-P |
|---|---|
| Material | FRP (GRP), glass-fibre reinforced polyester or vinyl ester |
| Shape | Rectangular, open top, internal partition |
| Dimensions | Width 1 m to 4 m, length up to 8 m; height under 4 m, 3 m suggested |
| Support | Mild steel stand, bare or FRP-laminated, or pultruded FRP |
| Typical fittings | Side nozzles, drain outlet |
| Construction | Hand lay-up on a wooden mould |
| Design standard | Designed to BS 4994 / BS EN 13121; engineering calculation on request |
| Corrosion barrier | Optional resin-rich inner layer with polyester veil, or hybrid build with vinyl ester inside and GP outside |
| Working temperature | GP resin 25°C to 40°C. Vinyl ester about 40°C to 75°C, depending on the chemical |
| Nozzle flanges | Standard off-the-shelf HDPE flanges; FRP flanges on request |
| Options | Cover, fiberglass ladder, railing |
| Quality checks | Barcol hardness test, thickness check and leak test on every tank before delivery |
| Warranty | 1 year standard; extended warranty on request |
Example Capacities
| Plan size | Height | Gross volume |
|---|---|---|
| 2 m x 1 m | 1.5 m | about 3,000 L |
| 4 m x 2 m | 2 m | about 16,000 L |
| 8 m x 4 m | 3 m | about 96,000 L |
Volumes are approximate and for guidance only. Every tank is built to your sizes.
Applications
- PAC chemical holding tank
- Compartment holding tank in water and wastewater treatment plants
Resin Selection
- GP (orthophthalic polyester): for water and mild, non-aggressive liquids.
- ISO (isophthalic polyester): a premium polyester with good chemical resistance.
- Vinyl ester: for severe corrosion, including strong acids and alkalis. For solvents, tell us the chemical and we will confirm.
- Hybrid: vinyl ester inside for chemical resistance, GP outside for economy.
Laminate Strength
Test results for the GP laminate used in our Mui Tank range: 103.0 MPa tensile strength (limit 70 min), 182.4 MPa bending strength (limit 100 min) and 0.15% water absorption (limit 1.0 max). Chemical-grade laminate data is available on request.
Installation
- Sit the tank, or its stand, on a level concrete plinth at least 250 mm (10 in) above ground.
- Lift only when empty, using the lifting lugs.
- Support every connecting pipe and valve on its own footing.
What to Tell Us for a Quote
- The chemical or liquid, its concentration and its temperature
- Tank size or drawing, and nozzle positions
- Support type and options such as cover, ladder or railing
FAQ
What is the partition for? It divides the tank into compartments, so each part can be filled or drained separately.
Can it hold PAC? Yes. It is often ordered as a PAC chemical holding tank.
How big can it be? Up to 4 m wide and 8 m long, with height under 4 m.
Berapa harga tangki kimia FRP segi empat? Harga bergantung kepada saiz, resin dan pilihan tambahan. Hubungi Mui Fatt untuk sebut harga terkini.
Adakah Mui Fatt menghantar ke seluruh Malaysia? Ya. Kami menghantar ke seluruh Semenanjung Malaysia, dan ke Sabah serta Sarawak melalui ejen penghantaran. Tempoh siap biasanya 7 hingga 14 hari bekerja.
Ordering and Delivery
Lead time is typically 7 to 14 working days, subject to the production schedule. We deliver across Peninsular Malaysia, and to Sabah and Sarawak through a freight agent. Manufactured by Y.T. Fibreglass Industries Sdn Bhd, a Mui Fatt subsidiary.
Contact Mui Fatt for a quotation: Get a Quote →.
