Mui Tank Closed Top Round FRP Water Tank 2.0 m Diameter, 700 to 3,460 Gallon
Closed-top round fiberglass water tank, 2.0 m diameter, 8 heights from 700 to 3,460 gallons (3,178 to 15,708 L). Made by Y.T. Fibreglass to MS 1241-1:2011, SIRIM certified, SPAN registered.
Mui Tank Closed Top Round FRP Water Tank 2.0 m Diameter, 700 to 3,460 Gallon
The Mui Tank closed-top round fiberglass (FRP) water tank in 2.0 m diameter comes in 8 heights, from 1,010 mm to 5,000 mm, holding 700 to 3,460 imperial gallons (3,178 to 15,708 litres). It is made by Y.T. Fibreglass Industries Sdn Bhd to MS 1241-1:2011, SIRIM certified and registered with SPAN, for cold water storage in buildings, factories and housing projects. Tanks of 3,000 gallons and above come with a level indicator and internal and external ladders.
Ringkasan: Tangki air fiberglass (FRP) Mui Tank bertutup, bulat, diameter 2.0 m, 700 hingga 3,460 gelen (3,178 hingga 15,708 liter). Mengikut MS 1241-1:2011, diperakui SIRIM dan berdaftar dengan SPAN. Sesuai untuk bangunan, kilang dan projek perumahan.

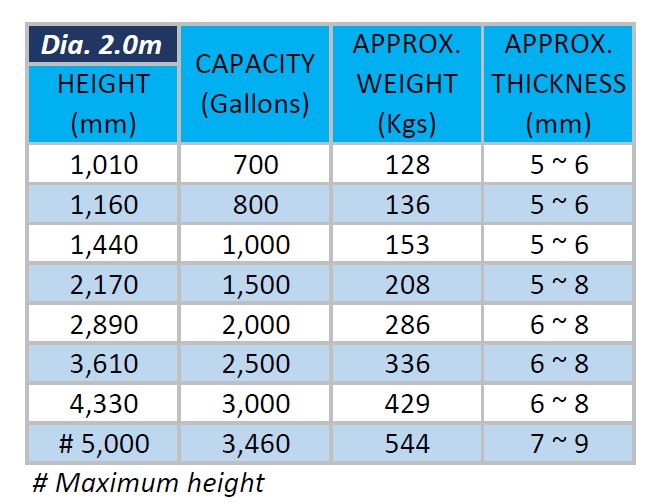

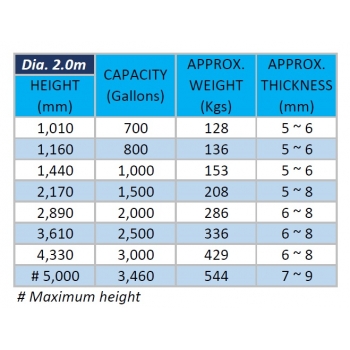

Sizes and Capacities
| Height (mm) | Capacity (gal) | Capacity (L) | Volume (m³) | Approx. weight (kg) | Wall thickness (mm) |
|---|---|---|---|---|---|
| 1,010 | 700 | 3,178 | 3.18 | 128 | 5-6 |
| 1,160 | 800 | 3,632 | 3.63 | 136 | 5-6 |
| 1,440 | 1,000 | 4,540 | 4.54 | 153 | 5-6 |
| 2,170 | 1,500 | 6,810 | 6.81 | 208 | 5-8 |
| 2,890 | 2,000 | 9,080 | 9.08 | 286 | 6-8 |
| 3,610 | 2,500 | 11,350 | 11.3 | 336 | 6-8 |
| 4,330 | 3,000 | 13,620 | 13.6 | 429 | 6-8 |
| 5,000 | 3,460 | 15,708 | 15.7 | 544 | 7-9 |
All dimensions are rounded to the nearest 10 mm. The tallest height listed is the maximum for this diameter. Litres are imperial gallons x 4.54.
Specifications
| Model | Mui Tank closed top, 2.0 m diameter (SKU FRP-MT-CT-2.0M) |
|---|---|
| Type | Closed top, round, vertical |
| Capacity range | 700 to 3,460 gal (3,178 to 15,708 L) |
| Diameter | 2.0 m |
| Height range | 1,010 to 5,000 mm |
| Material | Fiberglass reinforced unsaturated polyester (FRP), non-toxic, rust free, UV resistant |
| Standard | MS 1241-1:2011, SIRIM certified |
| Water authority | Registered with SPAN |

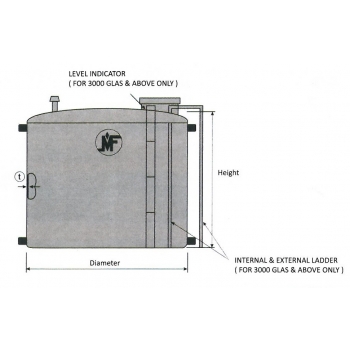

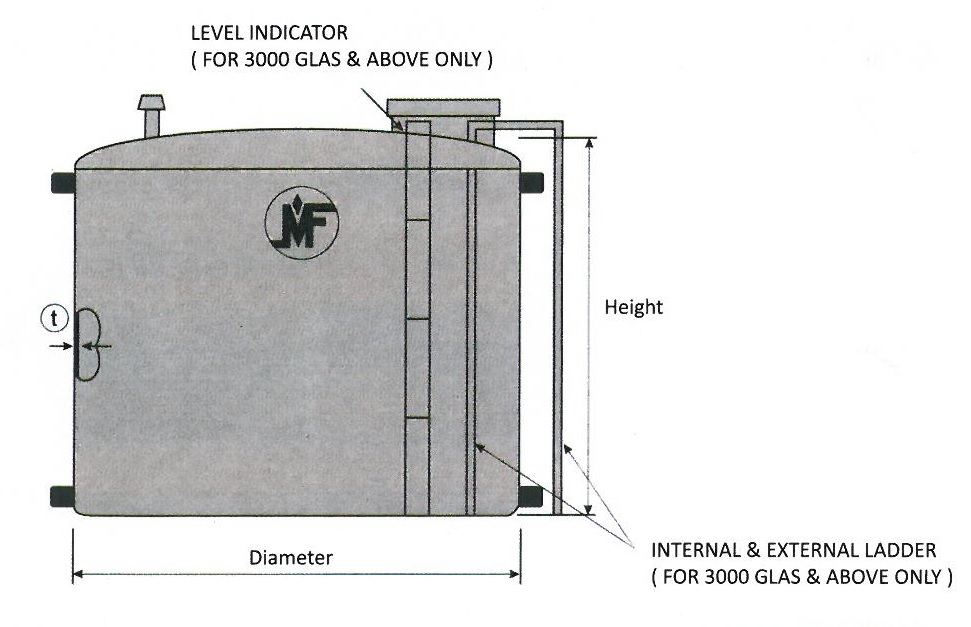

| Supplied with | Level indicator and internal/external ladder (3,000 gallons and above) |
| Warranty | 8 years outdoor, 10 years indoor (cold water storage) |
| Manufacturer | Y.T. Fibreglass Industries Sdn Bhd |
| Supplier | Mui Fatt Marketing Sdn Bhd (ISO 9001:2015 certified) |
Questions About This Tank
How do I choose the right height?
All 2.0 m tanks have the same footprint. Pick the capacity you need from the table; a taller tank holds more on the same floor space. The largest is 3,460 gallons at 5,000 mm high.
Does it come with a ladder and level indicator?
Yes for tanks of 3,000 gallons and above, which come with a level indicator and internal and external ladders. Smaller tanks do not include them as standard.
Can it be installed underground?
Closed-top Mui Tanks can be designed for underground use. Tell us the site conditions when you ask for a quote.
How is it delivered and installed?
Lift it only when empty, with a crane and rope or nylon slings on the lifting lugs, never by the pipe fittings. Place it on a level concrete platform at least 250 mm above ground, support all pipes on their own footings, keep it away from heat sources and fence the area.
Berapa harga tangki air fiberglass bertutup 2.0 m?
Harga bergantung kepada saiz, kuantiti, lokasi penghantaran dan aksesori yang diperlukan. Hubungi Mui Fatt untuk sebut harga terkini.
Other Closed Top Diameters
- Closed top 1.5 m diameter, 400 to 1,460 gallon →
- Closed top 2.4 m diameter, 1,000 to 5,980 gallon →
- Closed top custom sizes →
For installation, care and how to choose between round, square and closed-top tanks, see the full Fiberglass Mui Tank guide →. Certificates are on our certificate page →
Note on units: All gallons on this page are imperial (UK) gallons. 1 m³ = 1,000 litres = 220 imperial gallons. A US gallon is smaller: 1 m³ is about 264 US gallons.
