Closed Top Diameter 1.5m
Available in different height, please contact us for additional product details and pricing.
Size: 1500mm(Dia.) x Varies (HT)
SIRIM Certificate is available for this product, you may have it download from the below.
Model : FRP-CT-1.5m

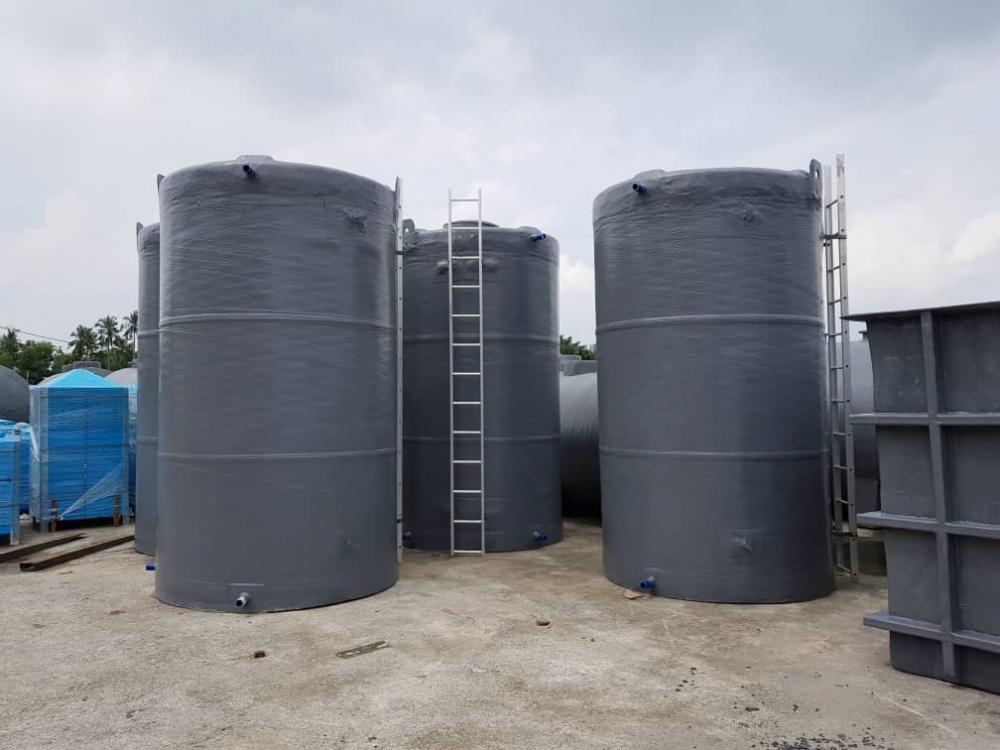

Product : FIBERGLASS WATER TANK - CLOSED TOP SERIES
Standard : Malaysia Standard MS1242:2011 – SIRIM QAS International
Brand : Mui Tank
Type : Closed Top/ CT Circular Series

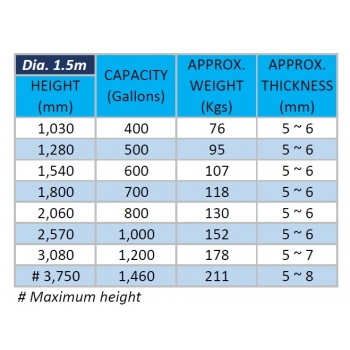

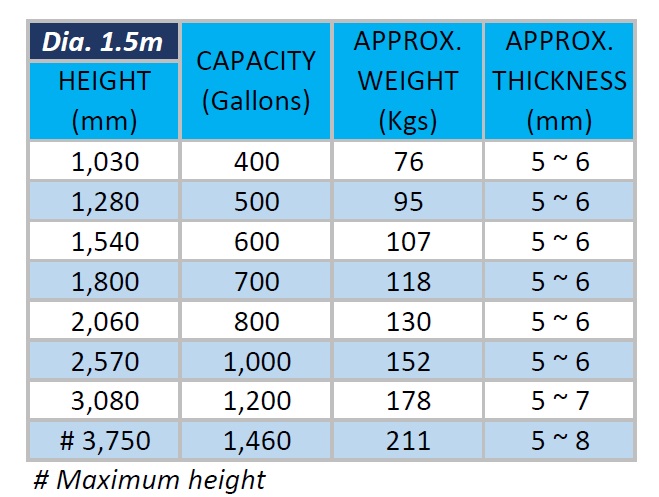

Nominal Capacity : Please refers to table below
Dimension :
Height : Please refers to table below
Approx. Weight : Please refers to table below
Approx. Thickness : Please refers to table below
Application : For large capacity application, heavy industries storage tank, chemical plant storage tank, factory rain collection tank, or other water storing tank.
Features : One piece tank, non-toxic, durable, rust free, and cost effective
Certification : SIRIM QAS International Product Certification License with SPAN Suruhanjaya Perkhidmatan Air Negara, Malaysia product listing for water supply.
Product warranty : 8 years outdoor & 10 year indoor subject to term & condition.
• Remark 220 Gallon-UK= 1000 Liter = 1m3

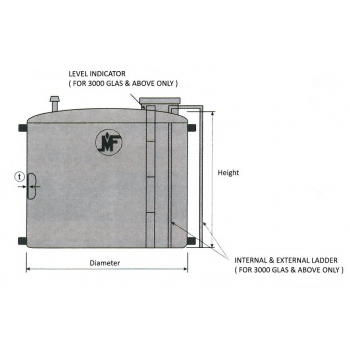

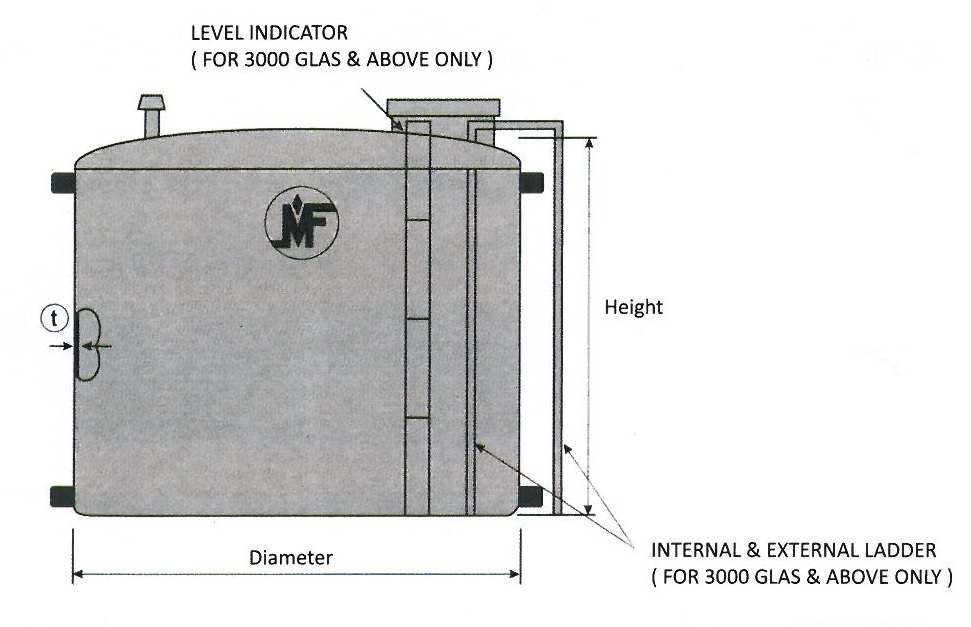

• Accessories such as external ladder, internal ladder & level indicator are optional.
• Inlet & outlet recommend to use PVC Tank connector with proper support to prevent leaking.
• All dimension are rounded-off to nearest 10mm or 0.5inch

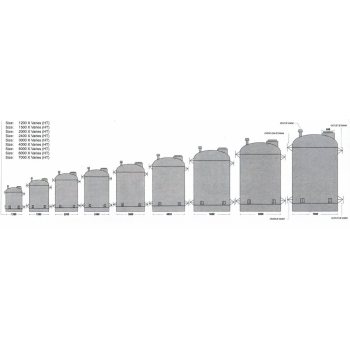

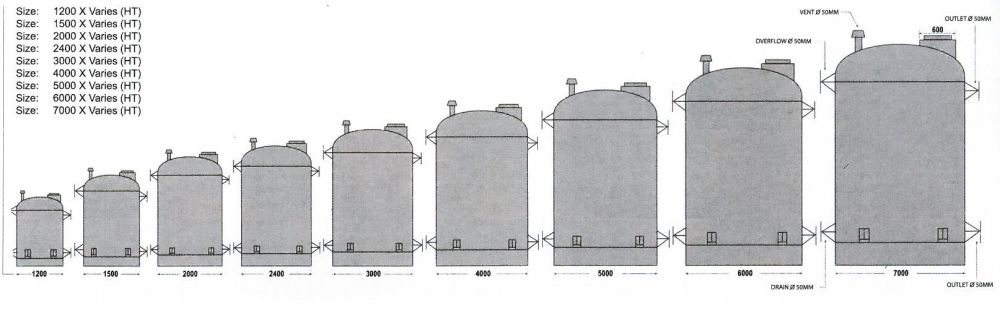

• Dimension given above are for space required for installation purpose only
• Please refer to us for latest drawing.
• Please contact us on delivery cost and unloading of water are not included.
Model: FRP-CT-1.5m
Produk: TANGKI AIR FIBERGLASS / TANGKI AIR GENTIAN KACA PLASTIC
Standard: Standard Malaysia MS1242:2011 - SIRIM QAS International
Jenama: Mui Tank
Jenis: Closed Top/ CT Seri Silinder
Kapasiti Nominal (Gelen) : Sila merujuk kepada gambar di bawah
Dimensi:
Ketinggian : Sila merujuk kepada gambar di bawah
Berat Kasar : Sila merujuk kepada gambar di bawah
Ketebalan Kasar : Sila merujuk kepada gambar di bawah
Aplikasi : Tangki simpanan air isi rumah, tangki simpanan air pertanian, tangki simpanan air industri kecil, tangki pengumpulan hujan, atau tangki penyimpanan air lain.
Ciri-ciri : Tangki Sebiji, durable, rust free and cost effective
Jaminan produk : 8 tahun luaran & 10 tahun dalaman tertakluk kepada terma & syarat.
Perakuan Penyeraian Pembekal utunk produck-produk kegunaan Industries perkhdimatan air serta SIRIM QAS International produk certification
• Catatan 220 Gelen-UK = 1000 seliter = 1m3
• Aksesori seperti tangga luaran, tangga dalaman & penunjuk tahap adalah pilihan.
• Inlet & outlet mengesyorkan untuk menggunakan penyambung Tangki PVC dengan sokongan yang betul untuk mengelakkan kebocoran.
• Semua dimensi dibundarkan hingga 10mm atau 0.5 inci terdekat
• Dimensi yang diberikan di atas adalah untuk ruang yang diperlukan untuk tujuan pemasangan sahaja
• Sila rujuk kami untuk gambar terkini.
• Sila hubungi kami mengenai biaya penghantaran dan tidak termasuk pemuatan air.
