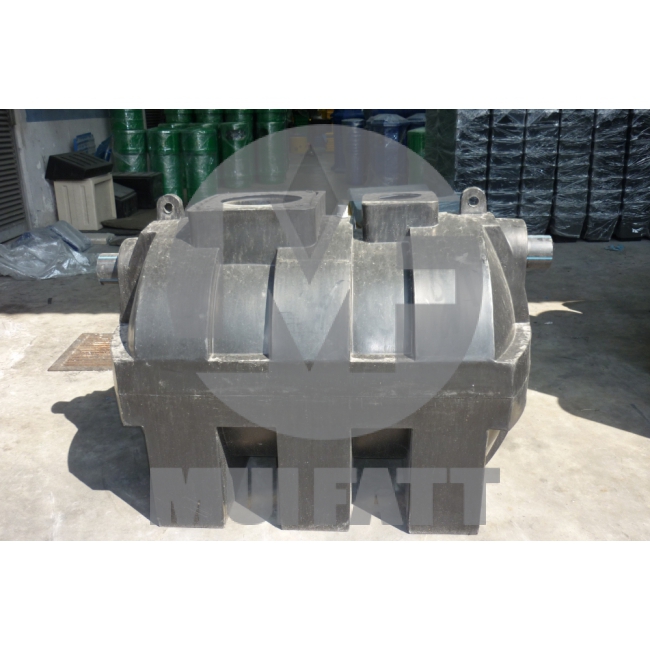

MFR 1 PE Septic Tank 3-5 PE, 680 L, Horizontal Low Profile
MFR 1 small horizontal septic tank for 3-5 PE: 680 litres, 1,474 mm long, 890 mm wide, 990 mm high. Rotomoulded LLDPE by Mui Fatt Industries, SIRIM MS 2441-1 certified, registered with SPAN.
MFR 1 PE Septic Tank 3-5 PE, 680 L, Horizontal Low Profile
The MFR 1 is the smallest Mui Fatt PE septic tank: a low, horizontal tank for 3-5 PE (a house of 3 to 5 people). It holds 680 litres and measures 1,474 mm long, 890 mm wide and only 990 mm high. It is rotomoulded in one piece from LLDPE by Mui Fatt Industries Sdn Bhd, SIRIM certified to MS 2441-1:2012 and registered with SPAN. Because it lies flat and is under 1 m high, it needs only a shallow pit, which saves digging where the ground is hard, rocky or the water table is high.
Ringkasan: Tangki septik PE MFR 1 untuk 3-5 PE, isi padu 680 liter, panjang 1,474 mm, lebar 890 mm, tinggi 990 mm. Tangki mendatar (horizontal) yang rendah, diperbuat daripada LLDPE, diperakui SIRIM (MS 2441-1:2012) dan berdaftar dengan SPAN. Sesuai untuk rumah kecil dan tapak yang sempit atau cetek.
Specifications
| Model | MFR 1 (SKU PE-IST-MFR1) |
|---|---|
| Population equivalent | 3-5 PE |
| Capacity | 680 litres |
| Length | 1,474 mm |
| Width | 890 mm |
| Overall height | 990 mm (to top of cover) |
| Inlet / outlet height | 775 mm / 725 mm from the base |
| Manhole | 405 mm square frame with round cover |
| Shape | Horizontal (lies flat), low profile |
| Material | LLDPE (linear low-density polyethylene), one-piece rotomoulded |
| Treatment | Septic tank with upflow anaerobic biofilter (bio-media), no electricity needed |
| Effluent | Standard B |
| Desludging | Once every 2 years |
| Standard | MS 2441-1:2012, SIRIM QAS certified |
| Water authority | Registered with SPAN |
| Manufacturer | Mui Fatt Industries Sdn Bhd |
How it works
Sewage enters at the inlet end and settles, so solids sink and break down. The water then passes upward through plastic bio-media, where bacteria clean it further before it leaves through the lower outlet at the far end. There are no pumps or blowers, so there is no power bill.
Questions About This Tank
How many people can use the MFR 1?
It is sized for 3-5 PE, which suits a small house of 3 to 5 people.
Why choose a horizontal septic tank?
At 990 mm high, the MFR 1 sits in a shallow pit. Choose it when you cannot dig deep, for example on rocky ground or where the water table is high.
Does it need electricity?
No. It treats sewage by settling and an anaerobic biofilter, with no pumps or blowers.
How often must it be desludged?
Once every 2 years, by IWK or a licensed desludging contractor.
Berapa harga tangki septik MFR 1?
Harga bergantung kepada kuantiti dan lokasi penghantaran. Hubungi Mui Fatt untuk sebut harga terkini.
