MF12-PE Biofilter Septic Tank 12 PE (Vertical, LLDPE)

MF12-PE vertical LLDPE biofilter septic tank for 12 PE, 1,585 x 2,240 mm. SIRIM MS 2441-1 certified, registered with SPAN, works by gravity with no electricity.

SKU :

MF12-PE

Quantity :
PDF download :
MF12-PE Biofilter Septic Tank 12 PE (Vertical, LLDPE) Download PDF

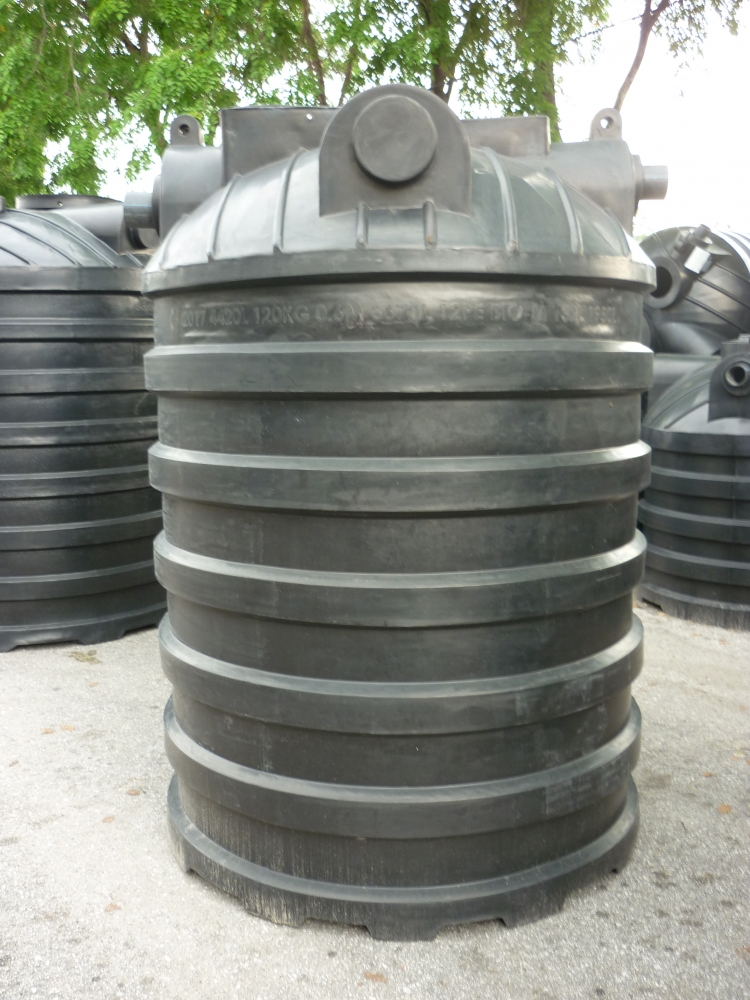

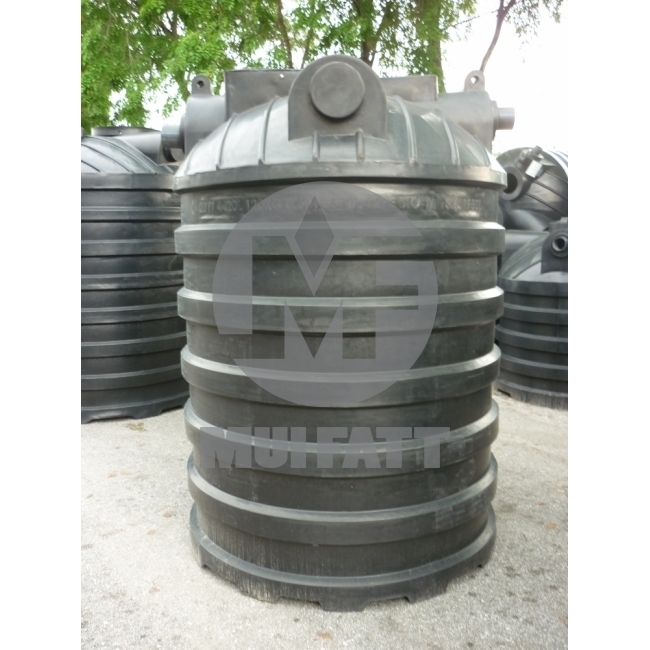

MF12-PE Biofilter Septic Tank 12 PE (Vertical, LLDPE)

The MF12-PE is a vertical biofilter septic tank for 12 PE (population equivalent; a typical house counts as 5 PE). It measures 1,585 mm diameter x 2,240 mm high. It is made in one piece from LLDPE (linear low-density polyethylene) by Mui Fatt Industries Sdn Bhd, SIRIM certified to MS 2441-1:2012 and registered with SPAN. It treats domestic sewage by gravity to Standard B effluent, with no electricity, pump or blower.

Ringkasan: MF12-PE ialah tangki septik biofilter PE (LLDPE) menegak untuk 12 PE, saiz 1,585 x 2,240 mm. Diperakui SIRIM (MS 2441-1:2012) dan berdaftar dengan SPAN, efluen Standard B, tidak memerlukan elektrik. Jaminan 5 tahun.

Specifications

Model MF12-PE
Population equivalent 12 PE
Tank type Vertical, one piece
Diameter 1,585 mm
Height (H1) 2,240 mm
Water level (H2) 1,950 mm
Inlet and outlet pipe 100 mm
Material LLDPE (linear low-density polyethylene), rotomoulded
Process Upflow anaerobic bio-media filter, domestic sewage
Effluent Standard B, Environmental Quality (Sewage) Regulations 2009
Power None: gravity flow, no pump or blower
Desludging Once every 2 years
Standard MS 2441-1:2012, SIRIM QAS product certification; designed to MS 1228:1991
Water authority Registered with SPAN; Malaysian Sewerage Industry Guidelines Vol. 5 (Septic Tanks)
Site conditions Coastal and high water table areas
Warranty 5 years against manufacturing defects
Manufacturer Mui Fatt Industries Sdn Bhd

How It Works

Solids settle and break down in the first chamber. The liquid then rises through plastic bio-media, where bacteria remove fine and dissolved matter, and leaves through the 100 mm outlet by gravity. The up-flow filter does not clog.

Why Choose the MF12-PE

  • Light and compact: easy to carry, transport and install where working space is tight.
  • Leakproof and rust-free: LLDPE resists rust and most chemicals found in soil and sewage.
  • No running cost: no moving parts, no pump and no power bill.
  • Easy desludging: direct access to the settling zone and a large outlet for the desludging pipe.
  • Small footprint: the upright tank needs only a 1,585 mm round base.

Where It Is Used

Terrace and bungalow houses, shop houses, light industrial factories, warehouses, site offices and other buildings not connected to a public sewer.

Installation and Submission

Mui Fatt supplies the tank; your contractor installs it on a reinforced concrete base with stainless steel anchor straps, as shown in the installation manual. We help with the IWK and SPAN paperwork and give free submission drawings: see our sewerage submission service →.

Frequently Asked Questions

How many people can the MF12-PE serve?

It is sized for 12 PE. A house counts as 5 PE, a factory worker as 0.3 PE and an office as 0.03 PE per m² of floor area. Add these up and choose a tank at or above the total. Need help counting? Use our PE calculation service →.

Is the MF12-PE registered with SPAN and accepted by IWK?

Yes. It is SIRIM certified to MS 2441-1:2012 and registered with SPAN, and it follows the Malaysian Sewerage Industry Guidelines Vol. 5 used for IWK submissions. Certificates are available on request.

Does it need electricity?

No. Sewage settles, then rises through the bio-media filter by gravity. There is no pump, blower or control panel.

How often must it be desludged?

Once every 2 years, by IWK or a licensed desludging contractor. Fill the tank with water to full capacity after each desludging.

Berapa harga tangki septik MF12-PE?

Harga bergantung kepada kuantiti dan lokasi penghantaran. Hubungi Mui Fatt untuk sebut harga terkini.

Other Sizes

Nearest sizes: MF3A-PE, 10 PE vertical → | MF3-PE, 15 PE vertical →.

See all models in the PE Biofilter Septic Tanks 6 to 18 PE → or the full Individual Septic Tanks (IST) 6 to 30 PE →. Size your site with the free septic tank selection guide →. Over 30 PE? See the Small Sewage Treatment System 40 to 150 PE →.
