MF3A-PE Biofilter Septic Tank 10 PE (Vertical, LLDPE)
MF3A-PE vertical LLDPE biofilter septic tank for 10 PE, 3,300 litres, 1,645 x 1,870 mm. SIRIM MS 2441-1 certified, registered with SPAN, works by gravity with no electricity.
MF3A-PE Biofilter Septic Tank 10 PE (Vertical, LLDPE)

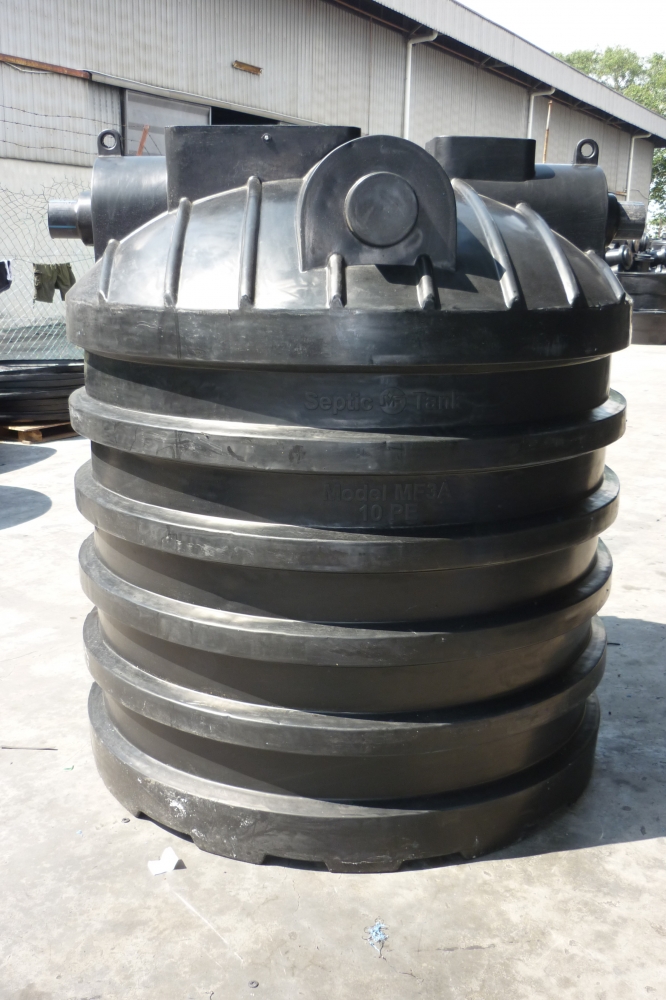

The MF3A-PE is a vertical biofilter septic tank for 10 PE (population equivalent; a typical house counts as 5 PE). It holds 3,300 litres (3,100 litres effective) and measures 1,645 mm diameter x 1,870 mm high. It is made in one piece from LLDPE (linear low-density polyethylene) by Mui Fatt Industries Sdn Bhd, SIRIM certified to MS 2441-1:2012 and registered with SPAN. It treats domestic sewage by gravity to Standard B effluent, with no electricity, pump or blower.
Ringkasan: MF3A-PE ialah tangki septik biofilter PE (LLDPE) menegak untuk 10 PE, isi padu 3,300 liter, saiz 1,645 x 1,870 mm. Diperakui SIRIM (MS 2441-1:2012) dan berdaftar dengan SPAN, efluen Standard B, tidak memerlukan elektrik. Jaminan 5 tahun.
Specifications
| Model | MF3A-PE |
|---|---|
| Population equivalent | 10 PE |
| Tank type | Vertical, one piece |
| Total volume | 3,300 litres (3.3 m³) |
| Effective volume | 3,100 litres |
| Diameter | 1,645 mm |
| Height (H1) | 1,870 mm |
| Water level (H2) | 1,535 mm |
| Inlet and outlet pipe | 100 mm |
| Material | LLDPE (linear low-density polyethylene), rotomoulded |
| Process | Upflow anaerobic bio-media filter, domestic sewage |
| Effluent | Standard B, Environmental Quality (Sewage) Regulations 2009 |
| Power | None: gravity flow, no pump or blower |
| Desludging | Once every 2 years |
| Standard | MS 2441-1:2012, SIRIM QAS product certification; designed to MS 1228:1991 |
| Water authority | Registered with SPAN; Malaysian Sewerage Industry Guidelines Vol. 5 (Septic Tanks) |
| Site conditions | Coastal and high water table areas |
| Warranty | 5 years against manufacturing defects |
| Manufacturer | Mui Fatt Industries Sdn Bhd |
How It Works
Solids settle and break down in the first chamber. The liquid then rises through plastic bio-media, where bacteria remove fine and dissolved matter, and leaves through the 100 mm outlet by gravity. The up-flow filter does not clog.
Why Choose the MF3A-PE
- Light and compact: easy to carry, transport and install where working space is tight.
- Leakproof and rust-free: LLDPE resists rust and most chemicals found in soil and sewage.
- No running cost: no moving parts, no pump and no power bill.
- Easy desludging: direct access to the settling zone and a large outlet for the desludging pipe.
- Small footprint: the upright tank needs only a 1,645 mm round base.
Where It Is Used
Terrace and bungalow houses, shop houses, light industrial factories, warehouses, site offices and other buildings not connected to a public sewer.
Installation and Submission
Mui Fatt supplies the tank; your contractor installs it on a reinforced concrete base with stainless steel anchor straps, as shown in the installation manual. We help with the IWK and SPAN paperwork and give free submission drawings: see our sewerage submission service →.
Frequently Asked Questions
How many people can the MF3A-PE serve?
It is sized for 10 PE. A house counts as 5 PE, a factory worker as 0.3 PE and an office as 0.03 PE per m² of floor area. Add these up and choose a tank at or above the total. Need help counting? Use our PE calculation service →.
Is the MF3A-PE registered with SPAN and accepted by IWK?
Yes. It is SIRIM certified to MS 2441-1:2012 and registered with SPAN, and it follows the Malaysian Sewerage Industry Guidelines Vol. 5 used for IWK submissions. Certificates are available on request.
Does it need electricity?
No. Sewage settles, then rises through the bio-media filter by gravity. There is no pump, blower or control panel.
How often must it be desludged?
Once every 2 years, by IWK or a licensed desludging contractor. Fill the tank with water to full capacity after each desludging.
Berapa harga tangki septik MF3A-PE?
Harga bergantung kepada kuantiti dan lokasi penghantaran. Hubungi Mui Fatt untuk sebut harga terkini.
Other Sizes
Nearest sizes: MF2-PE, 8 PE vertical → | MF12-PE, 12 PE vertical →.
See all models in the PE Biofilter Septic Tanks 6 to 18 PE → or the full Individual Septic Tanks (IST) 6 to 30 PE →. Size your site with the free septic tank selection guide →. Over 30 PE? See the Small Sewage Treatment System 40 to 150 PE →.
