GTTW-50(40) TruGrid FRP Pultruded Grating, 50 mm, 40% Open

GTTW-50(40) TruGrid FRP pultruded grating with 50.8 mm (2 in) I-shaped bearing bars and 40% open area. Rust-free and non-conductive, smooth or gritted, for walkways, platforms and trench covers.

SKU :

GTTW-50(40)

Quantity :

Send Whatapps

PDF download :

Download PDF

GTTW-50(40) TruGrid FRP Pultruded Grating, 50 mm, 40% Open

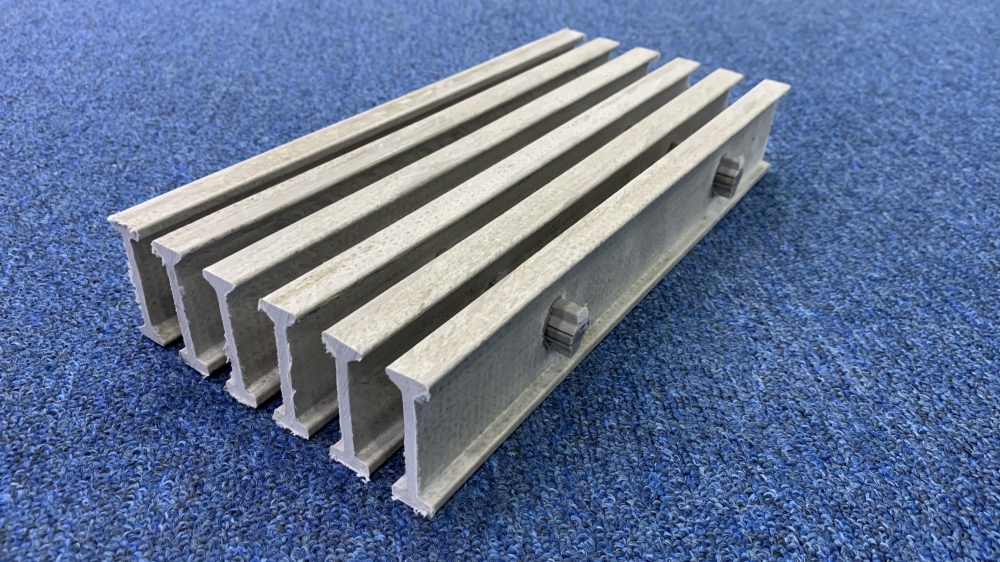

The GTTW-50(40) is a TRUGRID® FRP (fibreglass) pultruded grating with 50.8 mm (2 in) high I-shaped bearing bars and a 40% open area. TW is the TruGrid bearing bar series, 50 is the bar height and (40) is the open area in percent. The bars are locked by pultruded cross ties and bonded, giving a flush top.

The 40% open grating has the closest bar spacing, so small tools and heels do not drop through and the bars share load more evenly. The 50 mm depth is the deepest TW bar, for the longest spans and platforms with heavier foot traffic. Mui Fatt supplies TruGrid grating cut to your layout.

Ringkasan: GTTW-50(40) ialah jeriji FRP (gentian kaca) pultrusi TruGrid, bar galas setinggi 50.8 mm, kawasan terbuka 40%. Tidak berkarat, tidak mengalirkan elektrik, permukaan licin atau berpasir anti-gelincir.

Specifications

Model	GTTW-50(40), TruGrid TW series
Type	FRP pultruded grating (TRUGRID®)
Bearing bar height	50.8 mm (2 in)
Open area	40%
Weight	On request (see the TRUGRID load chart)
Construction	I-shaped pultruded bearing bars locked by a two-piece pultruded cross tie and bonded with structural adhesive; flush top
Resin and colour	Isophthalic polyester (grey), fire-retardant isophthalic (yellow) or vinyl ester (green); UV absorbers and surface veil in all resins
Surface	Smooth (GTTW-50(40)) or gritted quartz anti-slip (GTTW(G)-50(40))
Panel size	Standard TRUGRID panels; cut to size or other panel sizes on request
Stair treads	Grating only (stair treads are made in 25 and 38 mm)
Fixing	SS316 stainless steel M clips for TW grating
Load use	Pedestrian walkways and platforms; load tables in the TRUGRID catalogue

Why FRP

No rust: pultruded glass fibre (up to 70% glass) in polyester or vinyl ester resin does not corrode in wet, salty or chemical areas.
Light: a fraction of the weight of steel grating, so panels are carried and fitted by hand.
Non-conductive: safe near electrical equipment and cable routes.
Easy to cut: panels are cut on site with ordinary power tools; seal cut edges with the resin supplied.

Where It Is Used

Walkways and platforms in water and wastewater plants
Chemical, oil and gas plants
Offshore and coastal access ramps
Trench covers and cooling tower access

Questions and Answers

What does GTTW-50(40) mean?
GT is TruGrid grating, TW is the bearing bar series, 50 is the bar height in mm and 40 is the open area in percent.

Which resin should I choose?
Grey isophthalic for general use, yellow fire-retardant isophthalic where fire rating matters, and green vinyl ester for strong acids, alkalis and solvents.

How far can it span?
It depends on your load. Tell us the span and the load, and we check it against the TRUGRID load table for the 50 mm TW bar.

Is it slippery when wet?
Choose the gritted version, GTTW(G)-50(40), which has quartz grit bonded on top of the bars.

Berapa harga jeriji FRP GTTW-50(40)?
Harga bergantung kepada saiz panel, kuantiti dan resin. Hubungi Mui Fatt untuk sebut harga terkini.
