GTTW-38(50) TruGrid FRP Pultruded Grating, 38 mm, 50% Open

GTTW-38(50) TruGrid FRP pultruded grating with 38.1 mm (1.5 in) I-shaped bearing bars and 50% open area. Rust-free and non-conductive, smooth or gritted, for walkways, platforms and trench covers.

SKU :

GTTW-38(50)

Quantity :

Send Whatapps

PDF download :

Download PDF

GTTW-38(50) TruGrid FRP Pultruded Grating, 38 mm, 50% Open

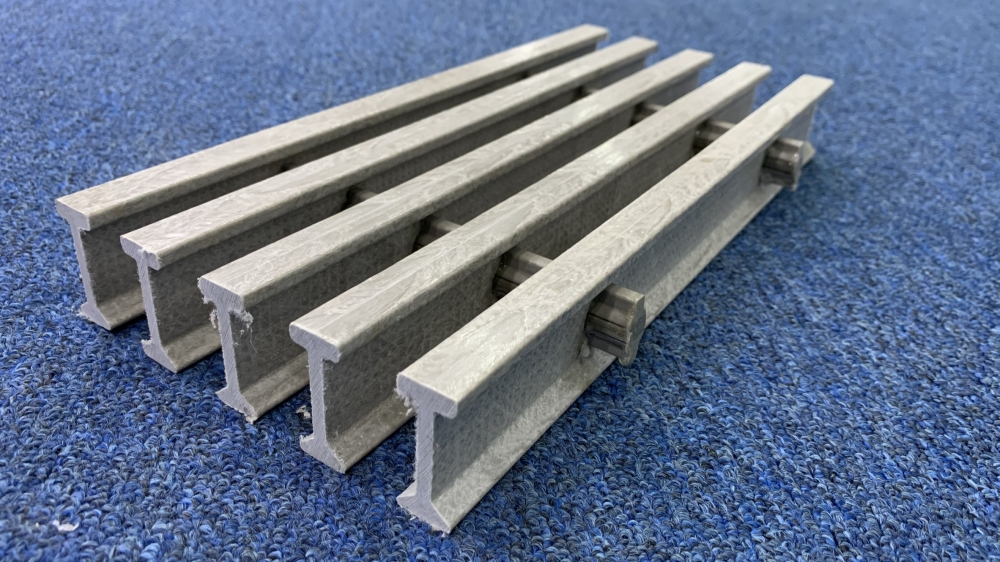

The GTTW-38(50) is a TRUGRID® FRP (fibreglass) pultruded grating with 38.1 mm (1.5 in) high I-shaped bearing bars and a 50% open area. TW is the TruGrid bearing bar series, 38 is the bar height and (50) is the open area in percent. The bars are locked by pultruded cross ties and bonded, giving a flush top.

The 50% open grating is the middle choice between bar spacing and drainage. The 38 mm depth spans further than 25 mm between supports, for platforms and wider trenches. Mui Fatt supplies TruGrid grating cut to your layout.

Ringkasan: GTTW-38(50) ialah jeriji FRP (gentian kaca) pultrusi TruGrid, bar galas setinggi 38.1 mm, kawasan terbuka 50%. Tidak berkarat, tidak mengalirkan elektrik, permukaan licin atau berpasir anti-gelincir.

Specifications

Model	GTTW-38(50), TruGrid TW series
Type	FRP pultruded grating (TRUGRID®)
Bearing bar height	38.1 mm (1.5 in)
Open area	50%
Weight	On request (see the TRUGRID load chart)
Construction	I-shaped pultruded bearing bars locked by a two-piece pultruded cross tie and bonded with structural adhesive; flush top
Resin and colour	Isophthalic polyester (grey), fire-retardant isophthalic (yellow) or vinyl ester (green); UV absorbers and surface veil in all resins
Surface	Smooth (GTTW-38(50)) or gritted quartz anti-slip (GTTW(G)-38(50))
Panel size	Standard TRUGRID panels; cut to size or other panel sizes on request
Stair treads	Also made as stair treads at this depth
Fixing	SS316 stainless steel M clips for TW grating
Load use	Pedestrian walkways and platforms; load tables in the TRUGRID catalogue

Why FRP

No rust: pultruded glass fibre (up to 70% glass) in polyester or vinyl ester resin does not corrode in wet, salty or chemical areas.
Light: a fraction of the weight of steel grating, so panels are carried and fitted by hand.
Non-conductive: safe near electrical equipment and cable routes.
Easy to cut: panels are cut on site with ordinary power tools; seal cut edges with the resin supplied.

Where It Is Used

Walkways and platforms in water and wastewater plants
Chemical, oil and gas plants
Offshore and coastal access ramps
Trench covers and cooling tower access

Questions and Answers

What does GTTW-38(50) mean?
GT is TruGrid grating, TW is the bearing bar series, 38 is the bar height in mm and 50 is the open area in percent.

Which resin should I choose?
Grey isophthalic for general use, yellow fire-retardant isophthalic where fire rating matters, and green vinyl ester for strong acids, alkalis and solvents.

How far can it span?
It depends on your load. Tell us the span and the load, and we check it against the TRUGRID load table for the 38 mm TW bar.

Is it slippery when wet?
Choose the gritted version, GTTW(G)-38(50), which has quartz grit bonded on top of the bars.

Berapa harga jeriji FRP GTTW-38(50)?
Harga bergantung kepada saiz panel, kuantiti dan resin. Hubungi Mui Fatt untuk sebut harga terkini.
