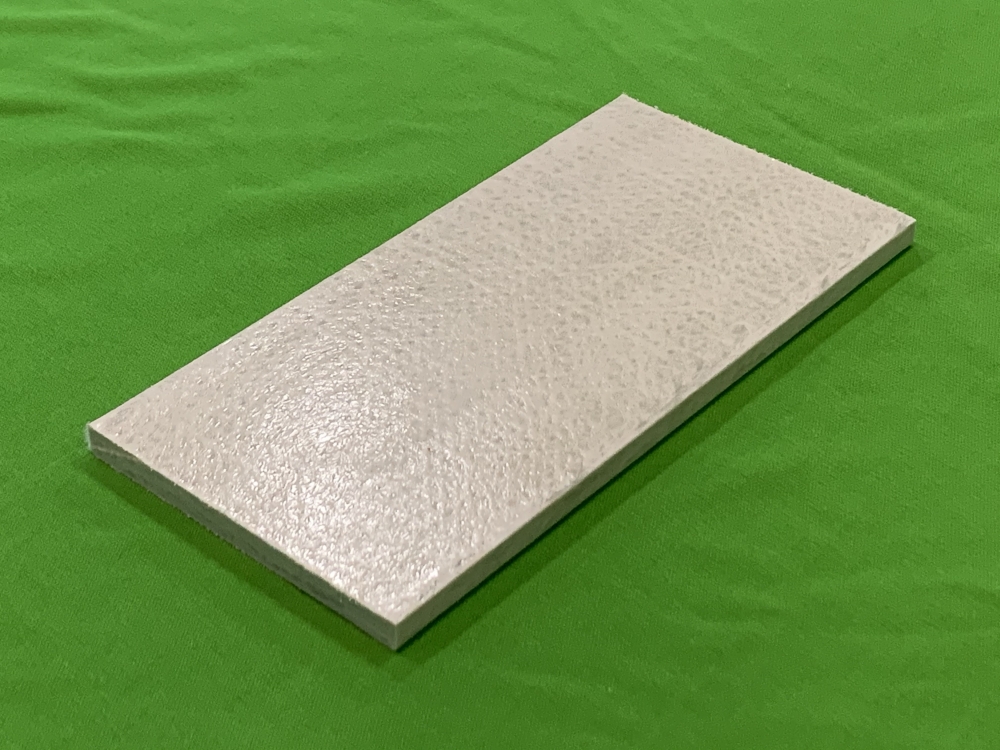

FRP Flat Bar FB 76.2 x 6.35 mm (3 in Wide, 1/4 in Thick)
Pultruded FRP flat bar, 76.2 mm (3 in) wide and 6.35 mm (1/4 in) thick. The narrowest flat bar we list, for straps, bracing, packers and small stair parts. Rust free, non-conductive, RAL 7035 grey.
FRP Flat Bar FB 76.2 x 6.35 mm (3 in Wide, 1/4 in Thick)
The FB 76.2 x 6.35 is a pultruded fiberglass (FRP) flat bar: width 76.2 mm (3 in); thickness 6.35 mm (1/4 in). It is the narrowest flat bar in our list. It is made in Malaysia by Hexagon MF Composite Sdn Bhd, Mui Fatt's pultrusion sister company, in isophthalic polyester resin with a surface veil, in RAL 7035 light grey, and supplied by Mui Fatt.
Ringkasan: Bar rata FRP 76.2 mm (3 inci) lebar, tebal 6.35 mm, untuk tali pengikat, pendakap dan bahagian tangga. Tidak berkarat.
Specifications
| Model code | FB - 76.2 x 6.35 |
|---|---|
| SKU | FB3-6 |
| Profile | Flat bar |
| Width | 76.2 mm (3 in) |
| Thickness | 6.35 mm (1/4 in) |
| Standard length | TBA (cut to length on request) |
| Weight per metre | TBA |
| Process | Pultrusion: E-glass rovings and mat with a surface veil |
| Resin | Isophthalic polyester (standard); vinyl ester on request |
| Fire-retardant option | Fire-retardant resin to ASTM E84 on request |
| Colour | RAL 7035 light grey; other colours on request |
| Made by | Hexagon MF Composite Sdn Bhd, Malaysia |
| Supplied by | Mui Fatt |
Material and Features
- Rust free: does not corrode in water, salt air or most chemicals
- Non-conductive: does not conduct electricity, safer near cables and electrical plant
- Light: much lighter than steel, so it is easy to carry and fit by hand
- Surface veil: keeps glass fibres below the surface and improves UV and corrosion resistance
- Easy to work: cut and drilled with standard power tools; seal cut edges with resin
Where It Is Used
- Straps and bracing
- Splice plates on small sections
- Packers and edge strips
- Stair and walkway parts in offshore and oil and gas areas
- Platform supports and bracing
Choosing This Size
The 3 inch bar in 1/4 inch thickness is light and easy to cut and drill. It is used for straps, bracing, packers, splice plates on small sections and edge strips.
Frequently Asked Questions
What is FB 76.2 x 6.35 used for?
Straps, bracing, packers, splice plates and small stair and walkway parts where a light, rust-free strip is needed.
Is a thicker 3 inch bar available?
Yes: FB 76.2 x 12.7 is the same width in 12.7 mm (1/2 in) thickness.
Can it be cut and drilled on site?
Yes, with standard power tools. Wear a dust mask and seal cut edges and holes with resin to protect the fibres.
What length can I order?
The standard stock length is TBA. Tell us the length and quantity you need and we will confirm; we can also cut profiles to size.
Berapa harga bar rata FRP FB 76.2 x 6.35?
Hubungi kami untuk harga terkini. Harga bergantung kepada saiz, panjang dan kuantiti.
Related Sizes and Products

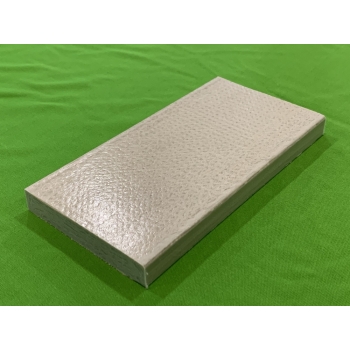

Nearest sizes and related items: FB 76.2 x 12.7, 3 in x 1/2 in →, FB 101.6 x 6.35, 4 in x 1/4 in →.
See every size in FRP Flat Bars →.
