FRP Flat Bar FB 127 x 6.35 mm (5 in Wide, 1/4 in Thick)
Pultruded FRP flat bar, 127 mm (5 in) wide and 6.35 mm (1/4 in) thick. A wider strip for plates, toe strips, covers and walkway parts in wet and corrosive sites. Rust free, RAL 7035 grey.
FRP Flat Bar FB 127 x 6.35 mm (5 in Wide, 1/4 in Thick)

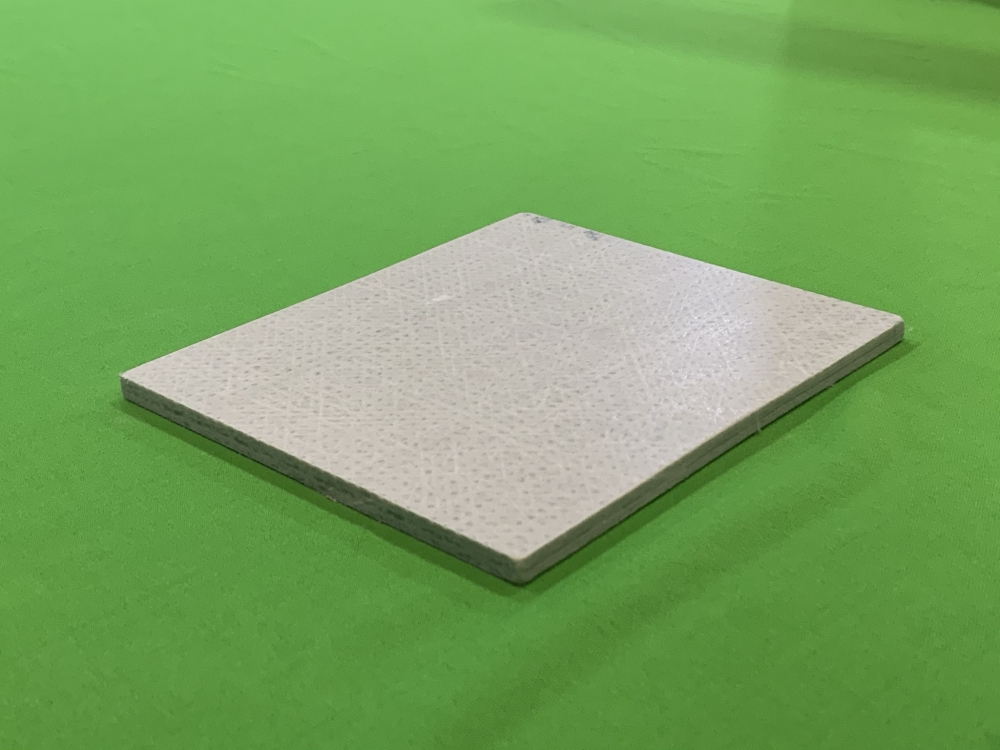

The FB 127 x 6.35 is a pultruded fiberglass (FRP) flat bar: width 127 mm (5 in); thickness 6.35 mm (1/4 in). It is a 5 inch strip in the lighter 1/4 inch thickness. It is made in Malaysia by Hexagon MF Composite Sdn Bhd, Mui Fatt's pultrusion sister company, in isophthalic polyester resin with a surface veil, in RAL 7035 light grey, and supplied by Mui Fatt.
Ringkasan: Bar rata FRP 127 mm (5 inci) lebar, tebal 6.35 mm, untuk plat, jalur kaki dan bahagian laluan. Tidak berkarat.
Specifications
| Model code | FB - 127 x 6.35 |
|---|---|
| SKU | FB5-6 |
| Profile | Flat bar |
| Width | 127 mm (5 in) |
| Thickness | 6.35 mm (1/4 in) |
| Standard length | TBA (cut to length on request) |
| Weight per metre | TBA |
| Process | Pultrusion: E-glass rovings and mat with a surface veil |
| Resin | Isophthalic polyester (standard); vinyl ester on request |
| Fire-retardant option | Fire-retardant resin to ASTM E84 on request |
| Colour | RAL 7035 light grey; other colours on request |
| Made by | Hexagon MF Composite Sdn Bhd, Malaysia |
| Supplied by | Mui Fatt |
Material and Features
- Rust free: does not corrode in water, salt air or most chemicals
- Non-conductive: does not conduct electricity, safer near cables and electrical plant
- Light: much lighter than steel, so it is easy to carry and fit by hand
- Surface veil: keeps glass fibres below the surface and improves UV and corrosion resistance
- Easy to work: cut and drilled with standard power tools; seal cut edges with resin
Where It Is Used
- Toe strips and cover strips
- Larger connection plates
- Covers over joints and gaps
- Stair and walkway parts in offshore and oil and gas areas
- Platform supports and bracing
Choosing This Size
The 5 inch bar is wide enough to act as a toe strip or a cover strip over joints, and to be cut into larger plates. In 6.35 mm it stays light for long runs.
Frequently Asked Questions
Can this bar be used as a toe board?
It can be used as a low toe strip. For a standard handrail toe board, see our FRP kick plate KP 150 x 15 x 3.
Is a 12.7 mm version available?
Yes: FB 127 x 12.7 is the same width in 12.7 mm thickness.
Is a fire-retardant version available?
Yes. Profiles in fire-retardant resin to ASTM E84 are made on request. Vinyl ester resin is also available on request for stronger chemicals.
Why use FRP instead of steel?
FRP is much lighter than steel, does not rust, does not conduct electricity and resists many chemicals and salt air, so it needs little maintenance in wet or corrosive sites.
Berapa harga bar rata FRP FB 127 x 6.35?
Hubungi kami untuk harga terkini. Harga bergantung kepada saiz, panjang dan kuantiti.
Related Sizes and Products
Nearest sizes and related items: FB 127 x 12.7, 5 in x 1/2 in →, FB 101.6 x 6.35, 4 in →, FB 152.4 x 6.35, 6 in →.
See every size in FRP Flat Bars →.
