FRP Flat Bar FB 76.2 x 12.7 mm (3 in Wide, 1/2 in Thick)
Pultruded FRP flat bar, 76.2 mm (3 in) wide and 12.7 mm (1/2 in) thick. A thick, narrow bar for packers, spacers, bearing strips and bolted plates. Rust free, non-conductive, RAL 7035 grey.
FRP Flat Bar FB 76.2 x 12.7 mm (3 in Wide, 1/2 in Thick)

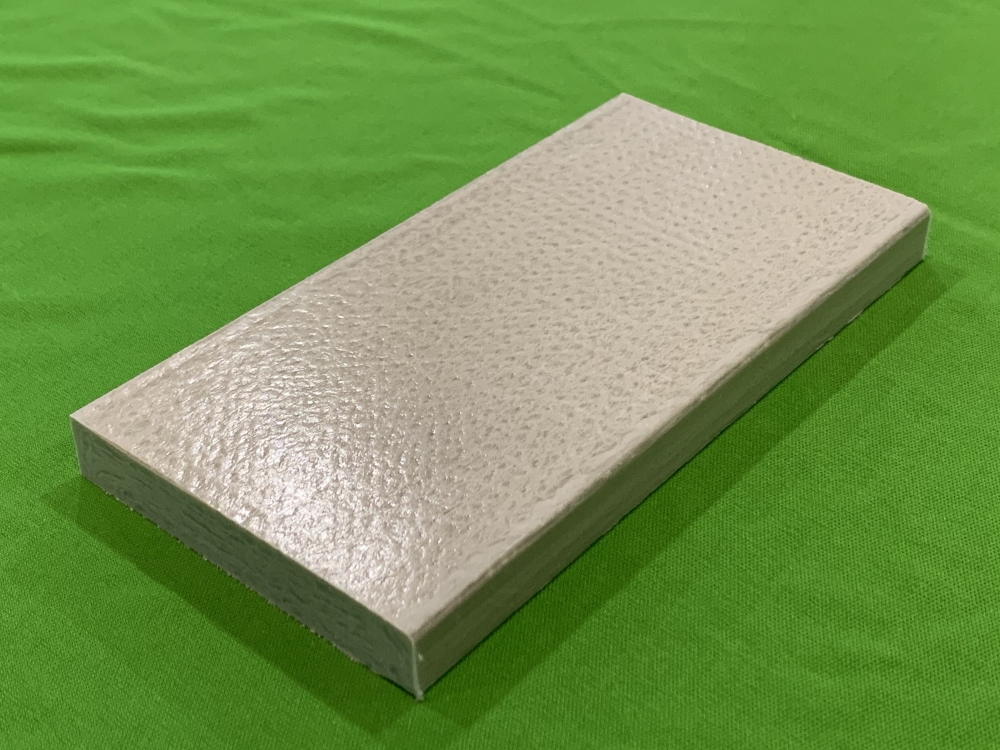

The FB 76.2 x 12.7 is a pultruded fiberglass (FRP) flat bar: width 76.2 mm (3 in); thickness 12.7 mm (1/2 in). It is a thick, narrow bar in 1/2 inch thickness. It is made in Malaysia by Hexagon MF Composite Sdn Bhd, Mui Fatt's pultrusion sister company, in isophthalic polyester resin with a surface veil, in RAL 7035 light grey, and supplied by Mui Fatt.
Ringkasan: Bar rata FRP 76.2 mm (3 inci) lebar, tebal 12.7 mm, untuk pelapik, penjarak dan plat bolt. Tidak berkarat.
Specifications
| Model code | FB - 76.2 x 12.7 |
|---|---|
| SKU | FB3-12 |
| Profile | Flat bar |
| Width | 76.2 mm (3 in) |
| Thickness | 12.7 mm (1/2 in) |
| Standard length | TBA (cut to length on request) |
| Weight per metre | TBA |
| Process | Pultrusion: E-glass rovings and mat with a surface veil |
| Resin | Isophthalic polyester (standard); vinyl ester on request |
| Fire-retardant option | Fire-retardant resin to ASTM E84 on request |
| Colour | RAL 7035 light grey; other colours on request |
| Made by | Hexagon MF Composite Sdn Bhd, Malaysia |
| Supplied by | Mui Fatt |
Material and Features
- Rust free: does not corrode in water, salt air or most chemicals
- Non-conductive: does not conduct electricity, safer near cables and electrical plant
- Light: much lighter than steel, so it is easy to carry and fit by hand
- Surface veil: keeps glass fibres below the surface and improves UV and corrosion resistance
- Easy to work: cut and drilled with standard power tools; seal cut edges with resin
Where It Is Used
- Packers and spacers under beams
- Bearing strips
- Bolted plates with higher loads
- Stair and walkway parts in offshore and oil and gas areas
- Platform supports and bracing
Choosing This Size
Twice the thickness of the 6.35 mm bar, the 3 inch x 1/2 inch bar is used where a strip must take bolt loads or act as a packer, spacer or bearing strip under other members.
Frequently Asked Questions
Why choose 12.7 mm instead of 6.35 mm?
It is stiffer and holds bolts better, so it suits packers, bearing strips and loaded plates.
Can it insulate between steel and another metal?
FRP does not conduct electricity, so it is often used as an insulating packer. Check the load with us.
What colour is it?
RAL 7035 light grey as standard. Other colours are made on request, subject to quantity.
Can you fabricate it into frames or supports?
Yes. We can cut and fabricate profiles into frames, supports and handrails. Send us a drawing or sketch.
Berapa harga bar rata FRP FB 76.2 x 12.7?
Hubungi kami untuk harga terkini. Harga bergantung kepada saiz, panjang dan kuantiti.
Related Sizes and Products
Nearest sizes and related items: FB 76.2 x 6.35, 3 in x 1/4 in →, FB 101.6 x 12.7, 4 in x 1/2 in →.
See every size in FRP Flat Bars →.
