FRP Flat Bar FB 101.6 x 6.35 mm (4 in Wide, 1/4 in Thick)
Pultruded FRP flat bar, 101.6 mm (4 in) wide and 6.35 mm (1/4 in) thick. A general-purpose strip for connection plates, bracing, kick strips and walkway parts. Rust free, non-conductive, RAL 7035 grey.
FRP Flat Bar FB 101.6 x 6.35 mm (4 in Wide, 1/4 in Thick)

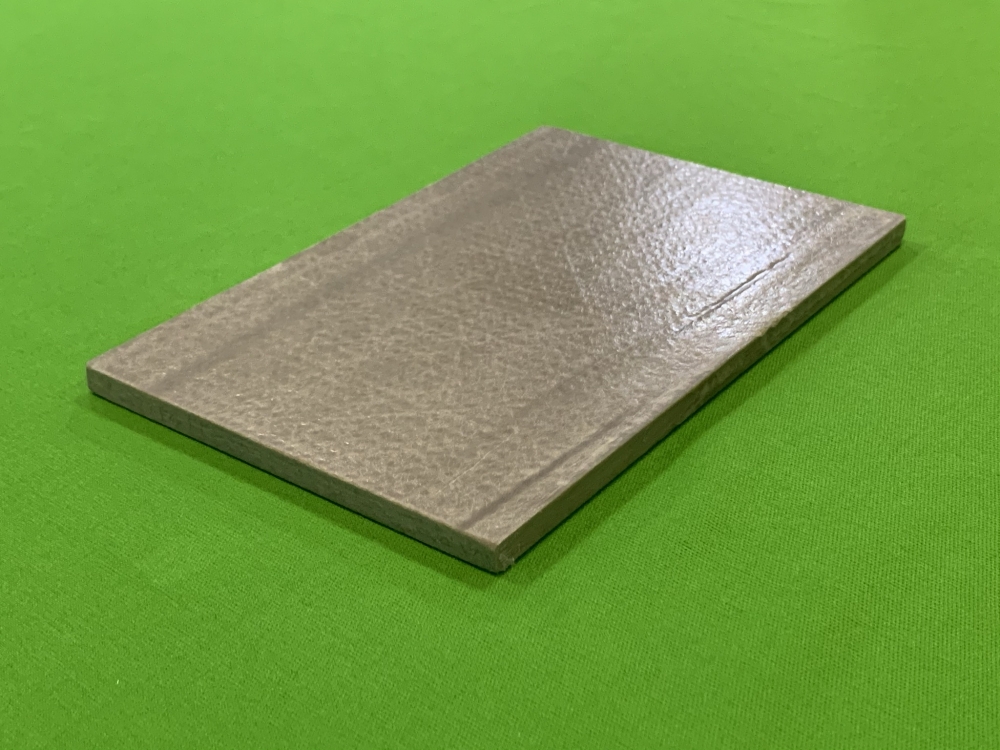

The FB 101.6 x 6.35 is a pultruded fiberglass (FRP) flat bar: width 101.6 mm (4 in); thickness 6.35 mm (1/4 in). It is a general-purpose 4 inch strip. It is made in Malaysia by Hexagon MF Composite Sdn Bhd, Mui Fatt's pultrusion sister company, in isophthalic polyester resin with a surface veil, in RAL 7035 light grey, and supplied by Mui Fatt.
Ringkasan: Bar rata FRP 101.6 mm (4 inci) lebar, tebal 6.35 mm, untuk plat penyambung, pendakap dan bahagian laluan. Ringan dan tidak berkarat.
Specifications
| Model code | FB - 101.6 x 6.35 |
|---|---|
| SKU | FB4-6 |
| Profile | Flat bar |
| Width | 101.6 mm (4 in) |
| Thickness | 6.35 mm (1/4 in) |
| Standard length | TBA (cut to length on request) |
| Weight per metre | TBA |
| Process | Pultrusion: E-glass rovings and mat with a surface veil |
| Resin | Isophthalic polyester (standard); vinyl ester on request |
| Fire-retardant option | Fire-retardant resin to ASTM E84 on request |
| Colour | RAL 7035 light grey; other colours on request |
| Made by | Hexagon MF Composite Sdn Bhd, Malaysia |
| Supplied by | Mui Fatt |
Material and Features
- Rust free: does not corrode in water, salt air or most chemicals
- Non-conductive: does not conduct electricity, safer near cables and electrical plant
- Light: much lighter than steel, so it is easy to carry and fit by hand
- Surface veil: keeps glass fibres below the surface and improves UV and corrosion resistance
- Easy to work: cut and drilled with standard power tools; seal cut edges with resin
Where It Is Used
- Connection plates and gussets
- Low edge strips and trims
- Bracing on frames
- Stair and walkway parts in offshore and oil and gas areas
- Platform supports and bracing
Choosing This Size
The 4 inch width leaves room for two bolts side by side, so this bar is often cut into connection plates and gussets. It is also used as low edge strips and as bracing on frames.
Frequently Asked Questions
Can I cut connection plates from this bar?
Yes. Cut and drill it with standard power tools, then seal the cut edges with resin.
4 in bar in 6.35 mm or 12.7 mm?
The 12.7 mm (FB 101.6 x 12.7) is twice as thick for heavier plates and bolted joints; 6.35 mm is lighter.
What length can I order?
The standard stock length is TBA. Tell us the length and quantity you need and we will confirm; we can also cut profiles to size.
Is a fire-retardant version available?
Yes. Profiles in fire-retardant resin to ASTM E84 are made on request. Vinyl ester resin is also available on request for stronger chemicals.
Berapa harga bar rata FRP FB 101.6 x 6.35?
Hubungi kami untuk harga terkini. Harga bergantung kepada saiz, panjang dan kuantiti.
