CT 600-700 Closed Top PE Water Tank 700 Gallon (3,178 L)
700 gallon (3,178 L) CT round closed-top PE water tank, 1,400 mm diameter, 2,295 mm high. Rotomoulded from food-grade LLDPE by Mui Fatt Industries, SIRIM certified to MS 1225-1:2014 and registered with SPAN.
CT 600-700 Closed Top PE Water Tank 700 Gallon (3,178 L)

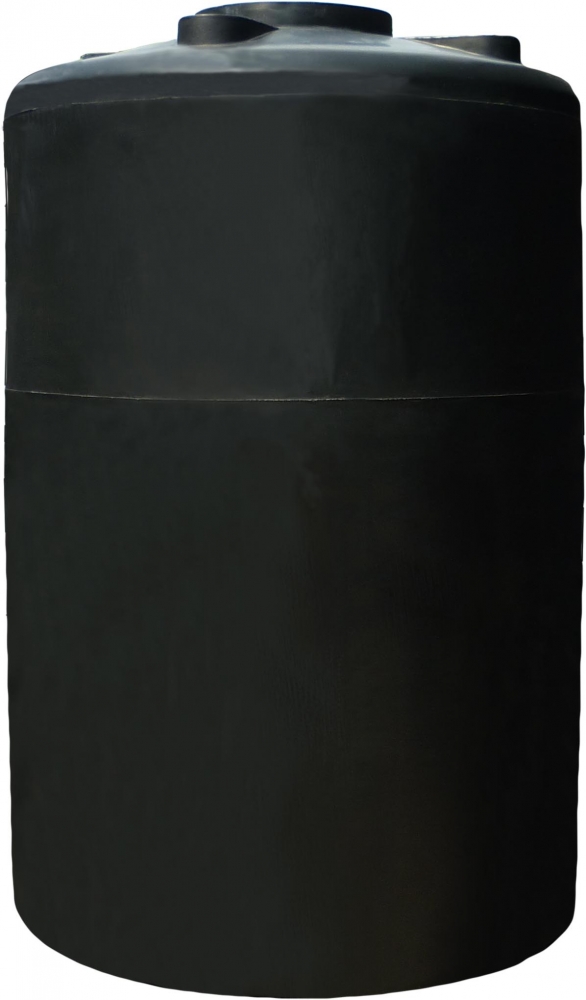

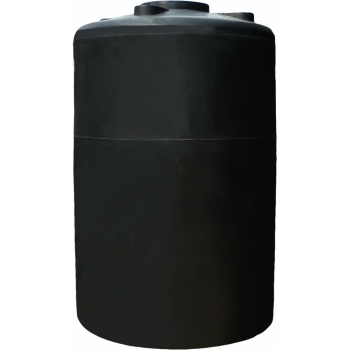

The CT 600-700 is a round closed-top polyethylene water tank that holds 700 imperial gallons (3,178 litres) nominal and 600 gallons (2,724 litres) effective. It is 1,400 mm in diameter and 2,295 mm high. It is rotationally moulded in one piece from food-grade LLDPE by Mui Fatt Industries Sdn Bhd, SIRIM QAS certified to MS 1225-1:2014 and registered with SPAN.
Ringkasan: Tangki air PE (poly tank) CT 600-700, 700 gelen (3,178 liter), bentuk bulat bertutup (siri CT). Diperbuat daripada LLDPE gred makanan, diperakui SIRIM (MS 1225-1:2014) dan berdaftar dengan SPAN. Sesuai untuk rumah, bangunan, sekolah dan kilang.

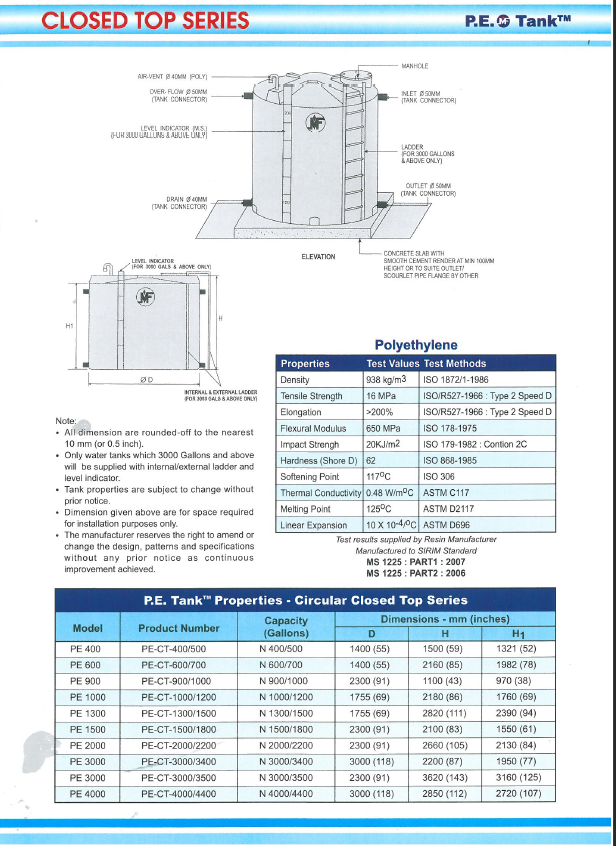

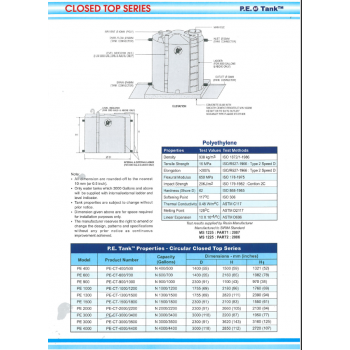

Specifications
| Model | CT 600-700 (SKU PE-CT-600-700) |
|---|---|
| Series | CT, round, closed top |
| Capacity | 700 gal (3,178 L) nominal; 600 gal (2,724 L) effective |
| Diameter (D) | 1,400 mm |
| Height (H) | 2,295 mm |
| Material | 100% virgin food-grade LLDPE, UV-stabilised |
| Process | One-piece rotational moulding |
| Standard | MS 1225-1:2014, SIRIM QAS certified |
| Water authority | Registered with SPAN |
| Warranty | 8 years outdoor, 10 years indoor |
| Manufacturer | Mui Fatt Industries Sdn Bhd |
| Supplier | Mui Fatt Marketing Sdn Bhd (ISO 9001:2015 certified) |
Polyethylene Properties
| Density | 938 kg/m³ |
|---|---|
| Tensile strength | 16 MPa |
| Elongation | More than 200% |
| Flexural modulus | 650 MPa |
| Hardness (Shore D) | 62 |
| Softening point | 117 °C |
Questions About This Tank
What do 600 and 700 mean in CT 600-700?
600 gallons is the effective capacity you can use. 700 gallons is the nominal capacity.
How heavy is it when full?
About 3,178 kg of water at nominal capacity, plus the tank itself. The base must be flat and support the whole bottom of the tank evenly.
Is it safe for drinking water?
Yes. It is made from food-grade LLDPE and SIRIM QAS certified to MS 1225-1:2014 for cold water storage, and registered with SPAN.
Berapa harga tangki air 700 gelen CT 600-700?
Harga bergantung kepada kuantiti, lokasi penghantaran dan aksesori yang diperlukan. Hubungi Mui Fatt untuk sebut harga terkini.
How should it be installed?
Place it on a level base that supports the whole bottom, join pipes with flexible couplings, keep it away from heaters and other heat sources, and always fit the cover.
Nearby Closed Top Sizes
- CT 400-500, 500 gallon (2,270 L) →
- CT 800-900, 900 gallon (4,086 L) →
- CT 900-1000, 1,000 gallon (4,540 L) →
For installation, care and how to choose a size, see the full PE water tank guide →. Certificates are on our certificate page →
Note on units: All gallons on this page are imperial (UK) gallons. 1 m³ = 1,000 litres = 220 imperial gallons. A US gallon is smaller: 1 m³ is about 264 US gallons.
