CT 3000-3500 Closed Top PE Water Tank 3,500 Gallon (15,890 L)
3,500 gallon (15,890 L) CT round closed-top PE water tank, 2,300 mm diameter, 3,620 mm high. Rotomoulded from food-grade LLDPE by Mui Fatt Industries, SIRIM certified to MS 1225-2:2006 and registered with SPAN.
CT 3000-3500 Closed Top PE Water Tank 3,500 Gallon (15,890 L)

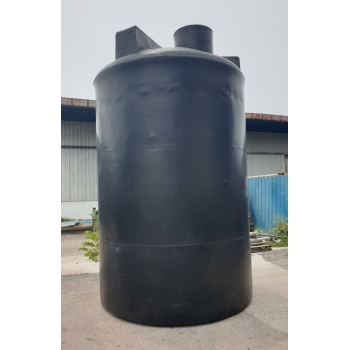

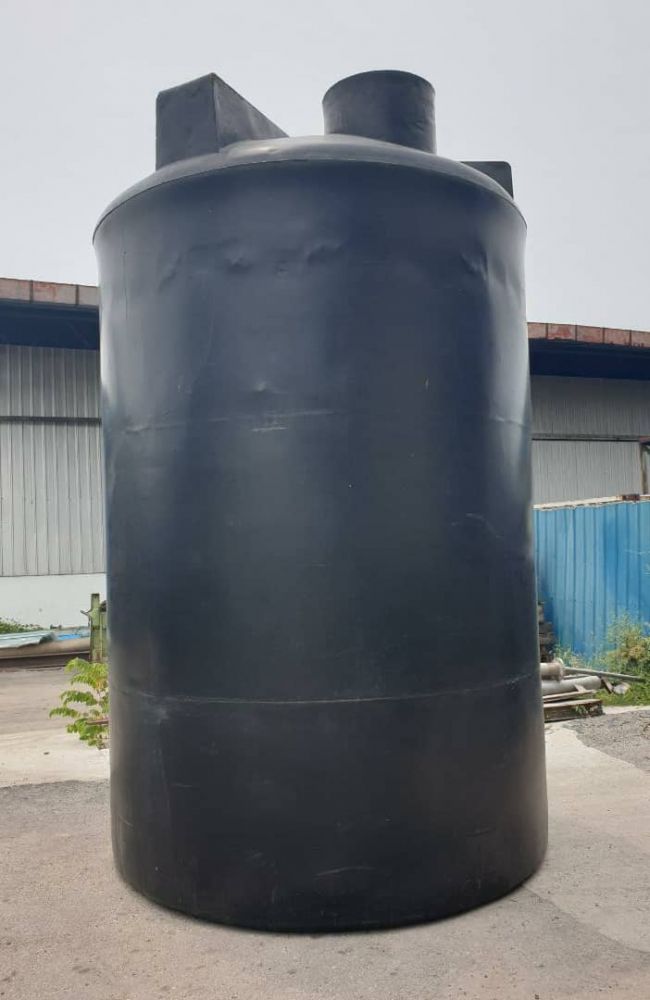

The CT 3000-3500 is a round closed-top polyethylene water tank that holds 3,500 imperial gallons (15,890 litres) nominal and 3,000 gallons (13,620 litres) effective. It is 2,300 mm in diameter and 3,620 mm high. It is rotationally moulded in one piece from food-grade LLDPE by Mui Fatt Industries Sdn Bhd, SIRIM QAS certified to MS 1225-2:2006 (Amd. 1:2011) and registered with SPAN.
Ringkasan: Tangki air PE (poly tank) CT 3000-3500, 3,500 gelen (15,890 liter), bentuk bulat bertutup (siri CT). Diperbuat daripada LLDPE gred makanan, diperakui SIRIM (MS 1225-2:2006 (Amd. 1:2011)) dan berdaftar dengan SPAN. Sesuai untuk rumah, bangunan, sekolah dan kilang.
Specifications
| Model | CT 3000-3500 (SKU PE-CT-3000-3500) |
|---|---|
| Series | CT, round, closed top |
| Capacity | 3,500 gal (15,890 L) nominal; 3,000 gal (13,620 L) effective |
| Diameter (D) | 2,300 mm |
| Height (H) | 3,620 mm |
| Material | 100% virgin food-grade LLDPE, UV-stabilised |
| Process | One-piece rotational moulding |
| Standard | MS 1225-2:2006 (Amd. 1:2011), SIRIM QAS certified |
| Water authority | Registered with SPAN |

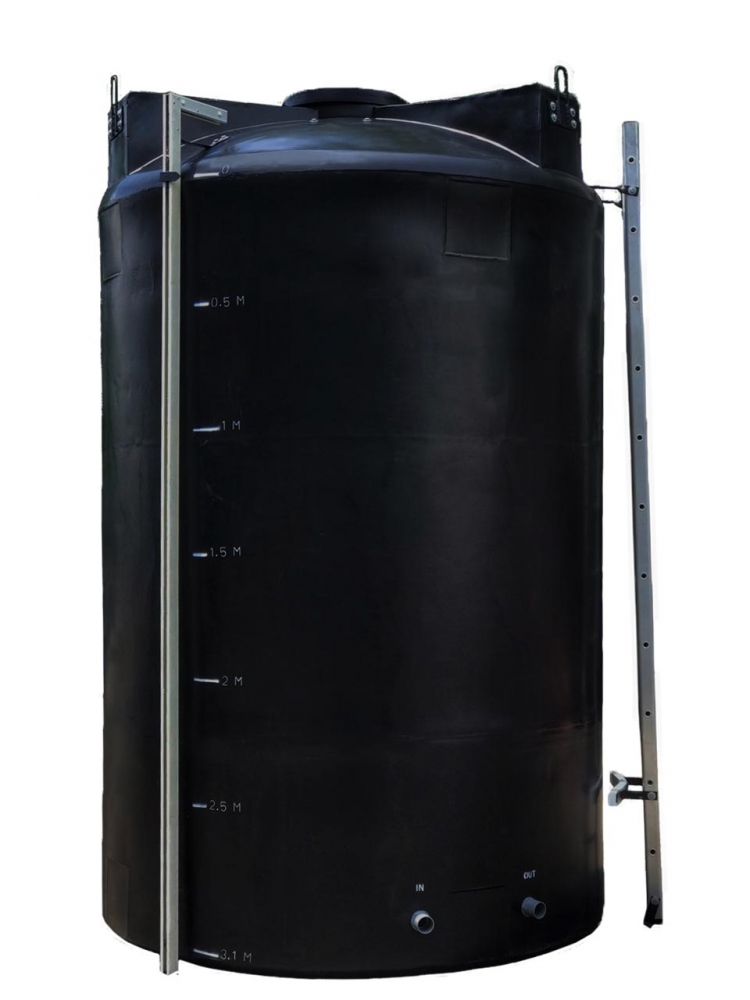

| Supplied with | Level indicator, internal and external ladder |
| Warranty | 8 years outdoor, 10 years indoor |
| Manufacturer | Mui Fatt Industries Sdn Bhd |
| Supplier | Mui Fatt Marketing Sdn Bhd (ISO 9001:2015 certified) |

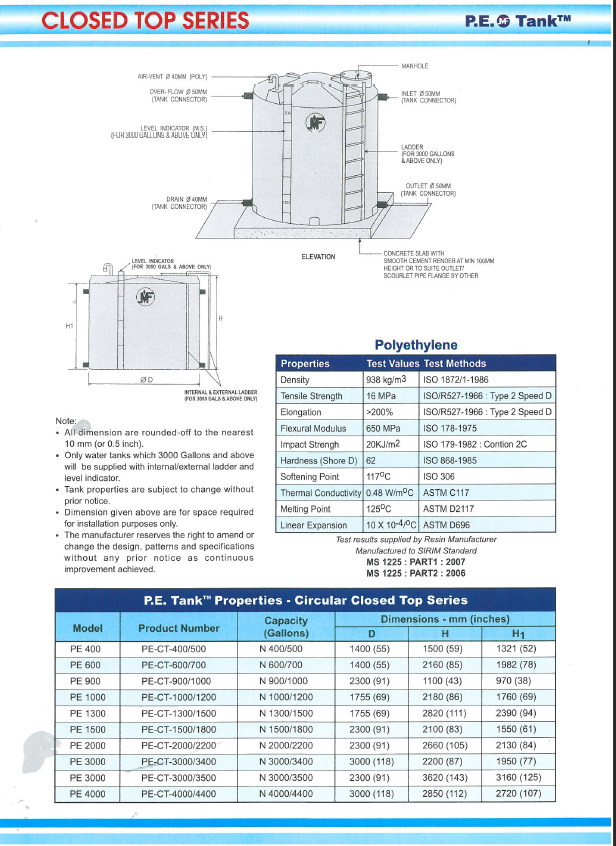

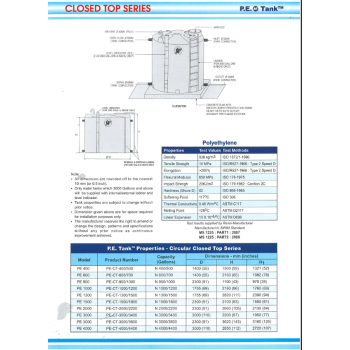

Polyethylene Properties
| Density | 938 kg/m³ |
|---|---|
| Tensile strength | 16 MPa |
| Elongation | More than 200% |
| Flexural modulus | 650 MPa |
| Hardness (Shore D) | 62 |
| Softening point | 117 °C |
Questions About This Tank
What do 3,000 and 3,500 mean in CT 3000-3500?
3,000 gallons is the effective capacity you can use. 3,500 gallons is the nominal capacity.
How heavy is it when full?
About 15,890 kg of water at nominal capacity, plus the tank itself. The base must be flat and support the whole bottom of the tank evenly.
Is it safe for drinking water?
Yes. It is made from food-grade LLDPE and SIRIM QAS certified to MS 1225-2:2006 (Amd. 1:2011) for cold water storage, and registered with SPAN.
Berapa harga tangki air 3,500 gelen CT 3000-3500?
Harga bergantung kepada kuantiti, lokasi penghantaran dan aksesori yang diperlukan. Hubungi Mui Fatt untuk sebut harga terkini.
How should it be installed?
Place it on a level base that supports the whole bottom, join pipes with flexible couplings, keep it away from heaters and other heat sources, and always fit the cover.
Nearby Closed Top Sizes
- CT 2000-2200, 2,200 gallon (9,988 L) →
- CT 3000-3400, 3,400 gallon (15,436 L) →
- CT 4000-4400, 4,400 gallon (19,976 L) →
For installation, care and how to choose a size, see the full PE water tank guide →. Certificates are on our certificate page →
Note on units: All gallons on this page are imperial (UK) gallons. 1 m³ = 1,000 litres = 220 imperial gallons. A US gallon is smaller: 1 m³ is about 264 US gallons.
