FRP Square Tube SQ 63.5 x 63.5 x 6.35 mm (2.5 x 2.5 in)
Pultruded FRP square tube, 63.5 x 63.5 mm (2.5 x 2.5 in) with a 6.35 mm wall. A mid-size hollow section between our 2 in and 3 in tubes, for posts, frames and supports. Rust free, RAL 7035 grey.
FRP Square Tube SQ 63.5 x 63.5 x 6.35 mm (2.5 x 2.5 in)

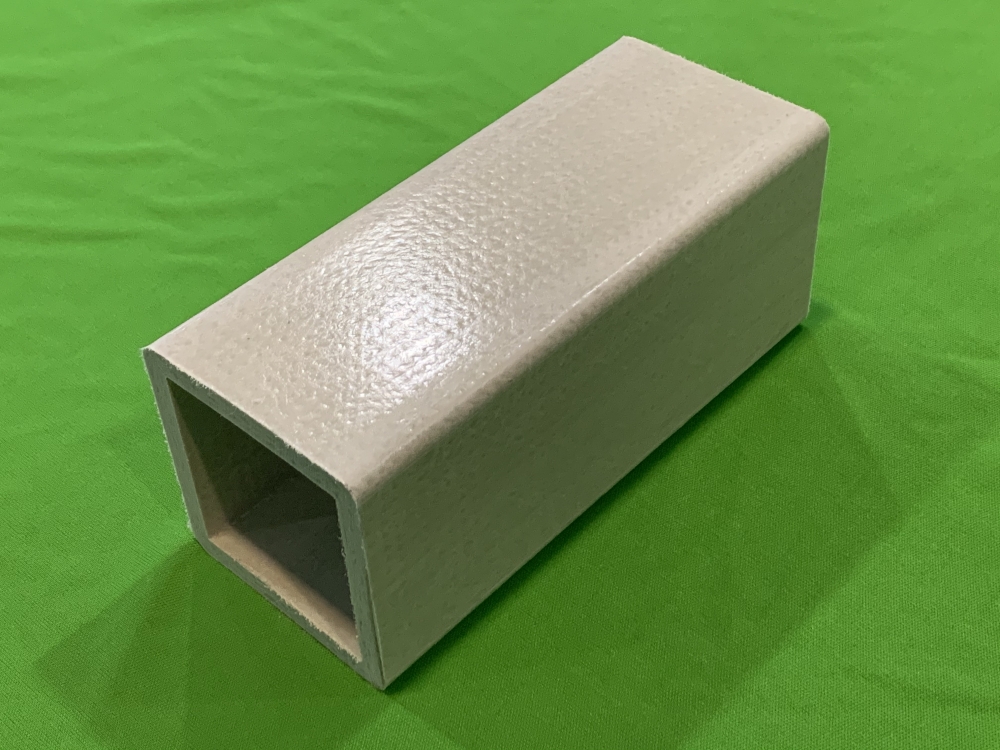

The SQ 63.5 x 63.5 x 6.35 is a pultruded fiberglass (FRP) square hollow section (square tube): outside size 63.5 x 63.5 mm (2.5 x 2.5 in); wall thickness 6.35 mm (1/4 in). It sits between the 2 inch and 3 inch tubes when one is too small and the other too big. It is made in Malaysia by Hexagon MF Composite Sdn Bhd, Mui Fatt's pultrusion sister company, in isophthalic polyester resin with a surface veil, in RAL 7035 light grey, and supplied by Mui Fatt.
Ringkasan: Tiub segi empat FRP 63.5 x 63.5 mm (2.5 x 2.5 inci), dinding 6.35 mm, untuk tiang, rangka dan penyokong. Ringan dan tidak berkarat.
Specifications
| Model code | SQ - 63.5 x 63.5 x 6.35 |
|---|---|
| SKU | SQ25-6 |
| Profile | Square hollow section (square tube) |
| Outside size | 63.5 x 63.5 mm (2.5 x 2.5 in) |
| Wall thickness | 6.35 mm (1/4 in) |
| Standard length | TBA (cut to length on request) |
| Weight per metre | TBA |
| Process | Pultrusion: E-glass rovings and mat with a surface veil |
| Resin | Isophthalic polyester (standard); vinyl ester on request |
| Fire-retardant option | Fire-retardant resin to ASTM E84 on request |
| Colour | RAL 7035 light grey; other colours on request |
| Made by | Hexagon MF Composite Sdn Bhd, Malaysia |
| Supplied by | Mui Fatt |
Material and Features
- Rust free: does not corrode in water, salt air or most chemicals
- Non-conductive: does not conduct electricity, safer near cables and electrical plant
- Light: much lighter than steel, so it is easy to carry and fit by hand
- Surface veil: keeps glass fibres below the surface and improves UV and corrosion resistance
- Easy to work: cut and drilled with standard power tools; seal cut edges with resin
Where It Is Used
- Posts and columns for walkways and canopies
- Frames for platforms and equipment skids
- Handrail posts where a larger post is wanted
- Support frames for pipes and cable trays
- Gate and fence frames
Choosing This Size
The 2.5 inch tube fills the gap between the 2 inch and 3 inch sizes. It gives more stiffness than the 50.8 mm tube without the bulk of the 76.2 mm tube, which helps when a post must match a bracket or base plate made for 63.5 mm sections.
Frequently Asked Questions
Is the 63.5 mm tube a standard size?
It is one of the seven square tube sizes we list. Supply, lead time and lengths depend on stock; ask us before you design around it.
Can I bolt FRP angles to this tube?
Yes. FRP angles and stainless steel bolts are the usual way to joint square tubes. Drill holes, then seal cut edges with resin.
Why use FRP instead of steel?
FRP is much lighter than steel, does not rust, does not conduct electricity and resists many chemicals and salt air, so it needs little maintenance in wet or corrosive sites.
What colour is it?
RAL 7035 light grey as standard. Other colours are made on request, subject to quantity.
Berapa harga tiub segi empat FRP SQ 63.5 x 63.5 x 6.35?
Hubungi kami untuk harga terkini. Harga bergantung kepada saiz, panjang dan kuantiti.
Related Sizes and Products
Nearest sizes and related items: SQ 50.8 x 50.8 x 6.35, 2 x 2 in →, SQ 76.2 x 76.2 x 6.35, 3 x 3 in →.
See every size in FRP Square Hollow Sections →.
