FRP Square Tube SQ 101.6 x 101.6 x 6.35 mm (4 x 4 in)
Pultruded FRP square tube, 101.6 x 101.6 mm (4 x 4 in) with a 6.35 mm (1/4 in) wall. The widest square tube we list, for columns, frames and large supports. Rust free, RAL 7035 grey.
FRP Square Tube SQ 101.6 x 101.6 x 6.35 mm (4 x 4 in)

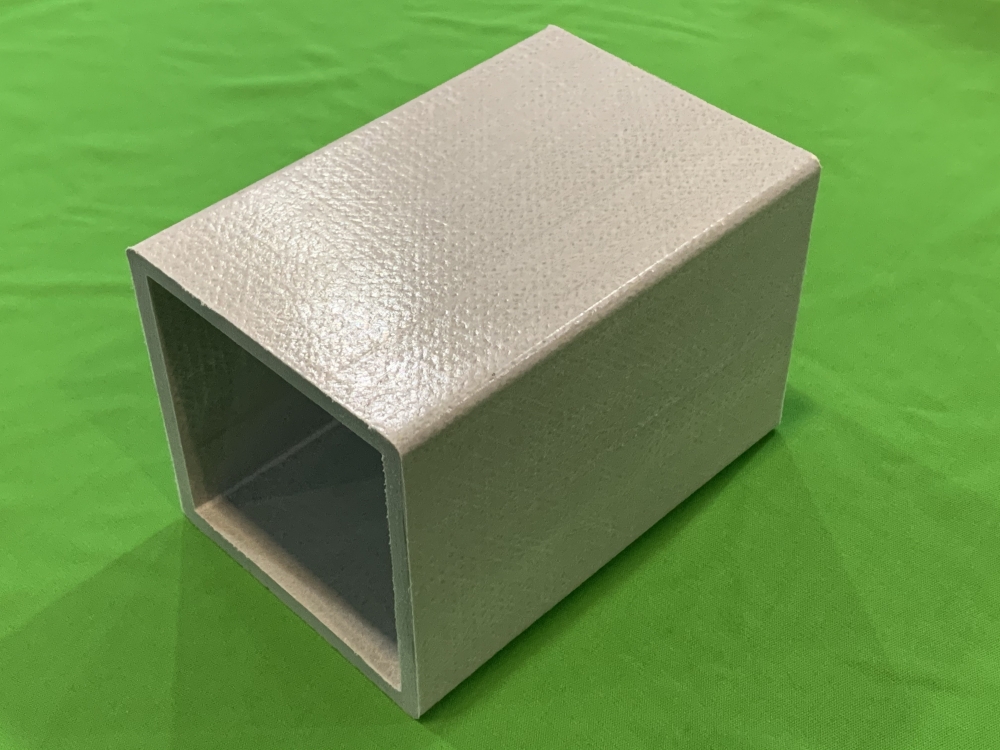

The SQ 101.6 x 101.6 x 6.35 is a pultruded fiberglass (FRP) square hollow section (square tube): outside size 101.6 x 101.6 mm (4 x 4 in); wall thickness 6.35 mm (1/4 in). It is the widest square hollow section in our list. It is made in Malaysia by Hexagon MF Composite Sdn Bhd, Mui Fatt's pultrusion sister company, in isophthalic polyester resin with a surface veil, in RAL 7035 light grey, and supplied by Mui Fatt.
Ringkasan: Tiub segi empat FRP 101.6 x 101.6 mm (4 x 4 inci), dinding 6.35 mm, saiz terbesar dalam senarai kami, untuk tiang dan rangka besar. Tidak berkarat.
Specifications
| Model code | SQ - 101.6 x 101.6 x 6.35 |
|---|---|
| SKU | SQ4-6 |
| Profile | Square hollow section (square tube) |
| Outside size | 101.6 x 101.6 mm (4 x 4 in) |
| Wall thickness | 6.35 mm (1/4 in) |
| Standard length | TBA (cut to length on request) |
| Weight per metre | TBA |
| Process | Pultrusion: E-glass rovings and mat with a surface veil |
| Resin | Isophthalic polyester (standard); vinyl ester on request |
| Fire-retardant option | Fire-retardant resin to ASTM E84 on request |
| Colour | RAL 7035 light grey; other colours on request |
| Made by | Hexagon MF Composite Sdn Bhd, Malaysia |
| Supplied by | Mui Fatt |
Material and Features
- Rust free: does not corrode in water, salt air or most chemicals
- Non-conductive: does not conduct electricity, safer near cables and electrical plant
- Light: much lighter than steel, so it is easy to carry and fit by hand
- Surface veil: keeps glass fibres below the surface and improves UV and corrosion resistance
- Easy to work: cut and drilled with standard power tools; seal cut edges with resin
Where It Is Used
- Columns for platforms, canopies and walkways
- Large equipment and skid frames
- Bases and posts for signage
- Frames for covers and enclosures
- Structural members in wastewater and chemical plants
Choosing This Size
The 4 inch tube gives a wide, stable section for columns and frames. Its wall is 6.35 mm, so for very heavy local loads or many bolts in one spot, compare it with the 3.5 inch tube that has a 9.53 mm wall.
Frequently Asked Questions
Is this the largest FRP square tube you supply?
It is the largest of the seven square tube sizes listed. Larger sections may be possible; tell us the size you need.
4 x 4 in with 6.35 mm wall or 3.5 x 3.5 in with 9.53 mm wall?
The 4 inch tube is wider and better against buckling over height; the 3.5 inch tube has a thicker wall for bolted joints. We can help you choose from your loads.
What length can I order?
The standard stock length is TBA. Tell us the length and quantity you need and we will confirm; we can also cut profiles to size.
Is a fire-retardant version available?
Yes. Profiles in fire-retardant resin to ASTM E84 are made on request. Vinyl ester resin is also available on request for stronger chemicals.
Berapa harga tiub segi empat FRP SQ 101.6 x 101.6 x 6.35?
Hubungi kami untuk harga terkini. Harga bergantung kepada saiz, panjang dan kuantiti.
Related Sizes and Products
Nearest sizes and related items: SQ 88.9 x 88.9 x 9.53, 3.5 x 3.5 in →, SQ 76.2 x 76.2 x 6.35, 3 x 3 in →.
See every size in FRP Square Hollow Sections →.
