FRP Square Tube SQ 50.8 x 50.8 x 6.35 mm (2 x 2 in, 1/4 in Wall)
Pultruded FRP square tube, 50.8 x 50.8 mm (2 x 2 in) with a 6.35 mm (1/4 in) wall. A compact, stiff section for handrail uprights, posts and frames. Rust free, non-conductive, RAL 7035 grey.
FRP Square Tube SQ 50.8 x 50.8 x 6.35 mm (2 x 2 in, 1/4 in Wall)

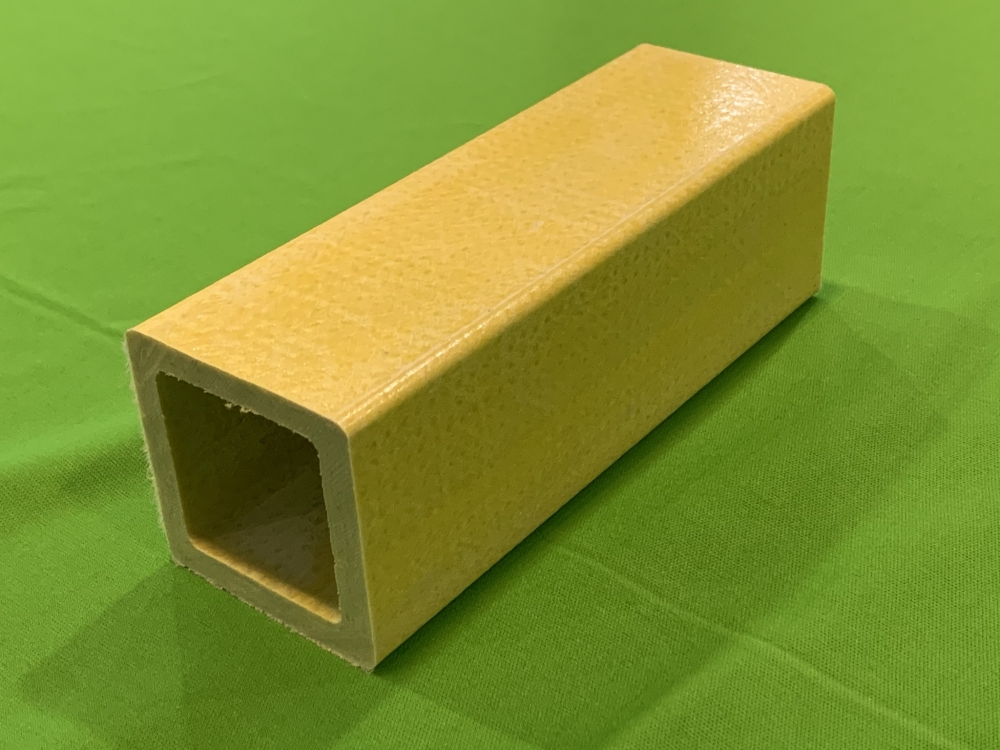

The SQ 50.8 x 50.8 x 6.35 is a pultruded fiberglass (FRP) square hollow section (square tube): outside size 50.8 x 50.8 mm (2 x 2 in); wall thickness 6.35 mm (1/4 in). It is the heavy-wall 2 inch tube, a compact section often used for uprights and frames. It is made in Malaysia by Hexagon MF Composite Sdn Bhd, Mui Fatt's pultrusion sister company, in isophthalic polyester resin with a surface veil, in RAL 7035 light grey, and supplied by Mui Fatt.
Ringkasan: Tiub segi empat FRP 50.8 x 50.8 mm (2 x 2 inci), dinding 6.35 mm, untuk tiang, tiang pagar tangan dan rangka. Tidak berkarat dan tidak mengalirkan elektrik.
Specifications
| Model code | SQ - 50.8 x 50.8 x 6.35 |
|---|---|
| SKU | SQ2-6 |
| Profile | Square hollow section (square tube) |
| Outside size | 50.8 x 50.8 mm (2 x 2 in) |
| Wall thickness | 6.35 mm (1/4 in) |
| Standard length | TBA (cut to length on request) |
| Weight per metre | TBA |
| Process | Pultrusion: E-glass rovings and mat with a surface veil |
| Resin | Isophthalic polyester (standard); vinyl ester on request |
| Fire-retardant option | Fire-retardant resin to ASTM E84 on request |
| Colour | RAL 7035 light grey; other colours on request |
| Made by | Hexagon MF Composite Sdn Bhd, Malaysia |
| Supplied by | Mui Fatt |
Material and Features
- Rust free: does not corrode in water, salt air or most chemicals
- Non-conductive: does not conduct electricity, safer near cables and electrical plant
- Light: much lighter than steel, so it is easy to carry and fit by hand
- Surface veil: keeps glass fibres below the surface and improves UV and corrosion resistance
- Easy to work: cut and drilled with standard power tools; seal cut edges with resin
Where It Is Used
- Handrail and guardrail uprights
- Short posts and columns
- Platform and equipment frames
- Pipe and cable support frames
- Fence posts in wet or salty areas
Choosing This Size
This is the 2 inch tube with the thicker 1/4 in wall. It keeps the small 50.8 mm footprint but is about twice as thick as the 3.18 mm version, so it suits uprights, short posts and frames that carry a load.
Frequently Asked Questions
Is this tube 2 x 2 in or 3 x 3 in?
It is 2 x 2 in (50.8 x 50.8 mm) with a 6.35 mm wall. The 3 x 3 in tubes are SQ 76.2 x 76.2 x 6.35 and SQ 76.2 x 76.2 x 9.53.
Why choose the 6.35 mm wall over the 3.18 mm wall?
The thicker wall carries more load and resists denting at bolt holes, so it is the better choice for posts and load-bearing frames.
Is a fire-retardant version available?
Yes. Profiles in fire-retardant resin to ASTM E84 are made on request. Vinyl ester resin is also available on request for stronger chemicals.
Why use FRP instead of steel?
FRP is much lighter than steel, does not rust, does not conduct electricity and resists many chemicals and salt air, so it needs little maintenance in wet or corrosive sites.
Berapa harga tiub segi empat FRP SQ 50.8 x 50.8 x 6.35?
Hubungi kami untuk harga terkini. Harga bergantung kepada saiz, panjang dan kuantiti.
