SG 70-100 B Special Size SEGI Rectangular Open Top PE Water Tank 100 Gallon (454 L)
100 gallon (454 L) SEGI rectangular open-top PE water tank, 1,490 x 785 mm top, 525 mm high with cover. Rotomoulded from food-grade LLDPE by Mui Fatt Industries, SIRIM certified to MS 1225-1:2014 and registered with SPAN.
SG 70-100 B Special Size SEGI Rectangular Open Top PE Water Tank 100 Gallon (454 L)
The SG 70-100 B is a rectangular open-top polyethylene water tank that holds 100 imperial gallons (454 litres) nominal and 70 gallons (318 litres) effective. It measures 1,490 x 785 mm across the top and 525 mm high with the cover on. It is rotationally moulded in one piece from food-grade LLDPE by Mui Fatt Industries Sdn Bhd, SIRIM QAS certified to MS 1225-1:2014 and registered with SPAN. It is a special size: the same capacity as the standard SG 70-100, in a different shape, for spaces where a standard tank does not fit.
Ringkasan: Tangki air PE (poly tank) SG 70-100 B, 100 gelen (454 liter), bentuk segi empat dengan penutup (siri SEGI). Diperbuat daripada LLDPE gred makanan, diperakui SIRIM (MS 1225-1:2014) dan berdaftar dengan SPAN. Sesuai untuk tangki air rumah, kedai dan pejabat.

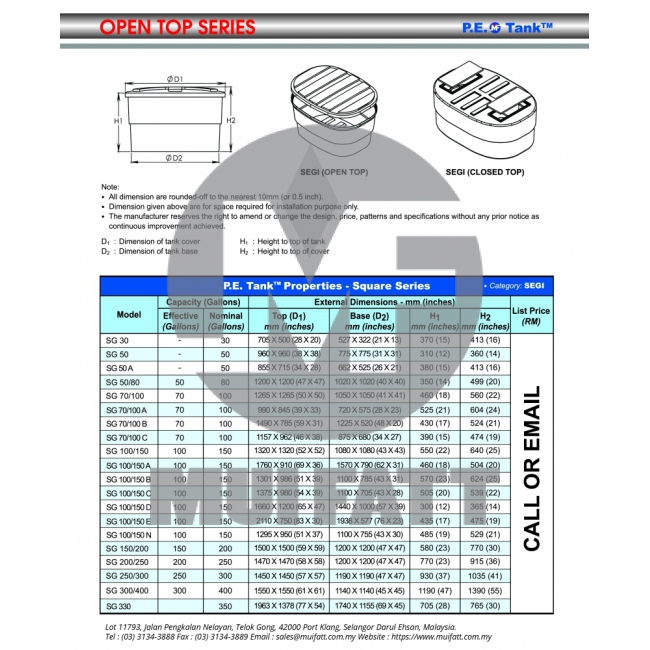

Specifications
| Model | SG 70-100 B (SKU PE-SG-70-100-B) |
|---|---|
| Series | SEGI, rectangular, open top |
| Capacity | 100 gal (454 L) nominal; 70 gal (318 L) effective |
| Top size (D1) | 1,490 x 785 mm |
| Base size (D2) | 1,225 x 520 mm |
| Height to top of tank (H1) | 430 mm |
| Height to top of cover (H2) | 525 mm |
| Material | 100% virgin food-grade LLDPE, UV-stabilised |
| Process | One-piece rotational moulding |
| Standard | MS 1225-1:2014, SIRIM QAS certified |
| Water authority | Registered with SPAN |
| Warranty | 8 years outdoor, 10 years indoor |
| Manufacturer | Mui Fatt Industries Sdn Bhd |
| Supplier | Mui Fatt Marketing Sdn Bhd (ISO 9001:2015 certified) |
Polyethylene Properties
| Density | 938 kg/m³ |
|---|---|
| Tensile strength | 16 MPa |
| Elongation | More than 200% |
| Flexural modulus | 650 MPa |
| Hardness (Shore D) | 62 |
| Softening point | 117 °C |
Questions About This Tank
How is the SG 70-100 B different from the SG 70-100?
It holds the same 100 gallons as the standard SG 70-100, but in a different shape: 1,490 x 785 mm across the top and 525 mm high. Choose it when the standard tank does not fit your space.
How heavy is it when full?
About 454 kg of water at nominal capacity, plus the tank itself. The base must be flat and support the whole bottom of the tank evenly.
Is it safe for drinking water?
Yes. It is made from food-grade LLDPE and SIRIM QAS certified to MS 1225-1:2014 for cold water storage, and registered with SPAN.
Berapa harga tangki air 100 gelen SG 70-100 B?
Harga bergantung kepada kuantiti, lokasi penghantaran dan aksesori yang diperlukan. Hubungi Mui Fatt untuk sebut harga terkini.
How should it be installed?
Place it on a level base that supports the whole bottom, join pipes with flexible couplings, keep it away from heaters and other heat sources, and always fit the cover.
Nearby SEGI Sizes
For installation, care and how to choose a size, see the full PE water tank guide →. Certificates are on our certificate page →
Note on units: All gallons on this page are imperial (UK) gallons. 1 m³ = 1,000 litres = 220 imperial gallons. A US gallon is smaller: 1 m³ is about 264 US gallons.
Want to know more about this range? Our free water tank selection guide shows every PE and fiberglass tank at a glance, in seconds, with no details needed: Open the water tank selection guide →
Contact Mui Fatt for a quotation: Get a Quote →
