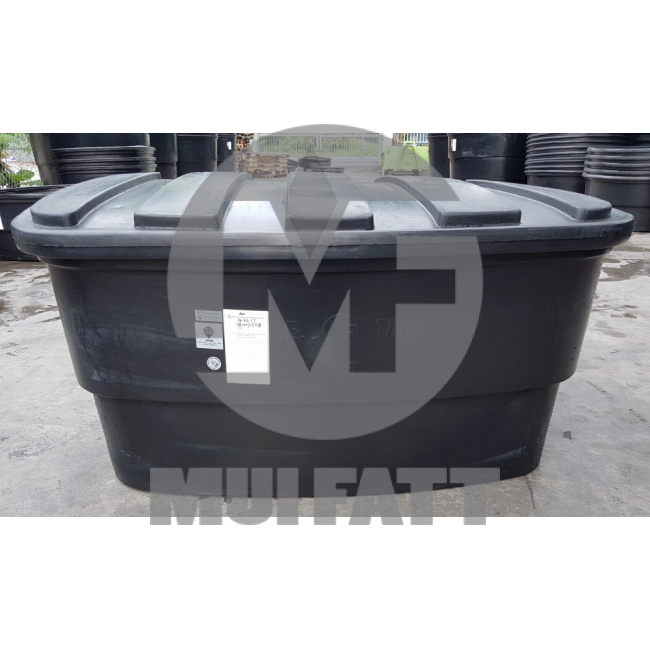

SG 100-150 B Special Size SEGI Rectangular Open Top PE Water Tank 150 Gallon (681 L)
150 gallon (681 L) SEGI rectangular open-top PE water tank, 1,301 x 986 mm top, 624 mm high with cover. Rotomoulded from food-grade LLDPE by Mui Fatt Industries, SIRIM certified to MS 1225-1:2014 and registered with SPAN.
SG 100-150 B Special Size SEGI Rectangular Open Top PE Water Tank 150 Gallon (681 L)
The SG 100-150 B is a rectangular open-top polyethylene water tank that holds 150 imperial gallons (681 litres) nominal and 100 gallons (454 litres) effective. It measures 1,301 x 986 mm across the top and 624 mm high with the cover on. It is rotationally moulded in one piece from food-grade LLDPE by Mui Fatt Industries Sdn Bhd, SIRIM QAS certified to MS 1225-1:2014 and registered with SPAN. It is a special size: the same capacity as the standard SG 100-150, in a different shape, for spaces where a standard tank does not fit.
Ringkasan: Tangki air PE (poly tank) SG 100-150 B, 150 gelen (681 liter), bentuk segi empat dengan penutup (siri SEGI). Diperbuat daripada LLDPE gred makanan, diperakui SIRIM (MS 1225-1:2014) dan berdaftar dengan SPAN. Sesuai untuk tangki air rumah, kedai dan pejabat.

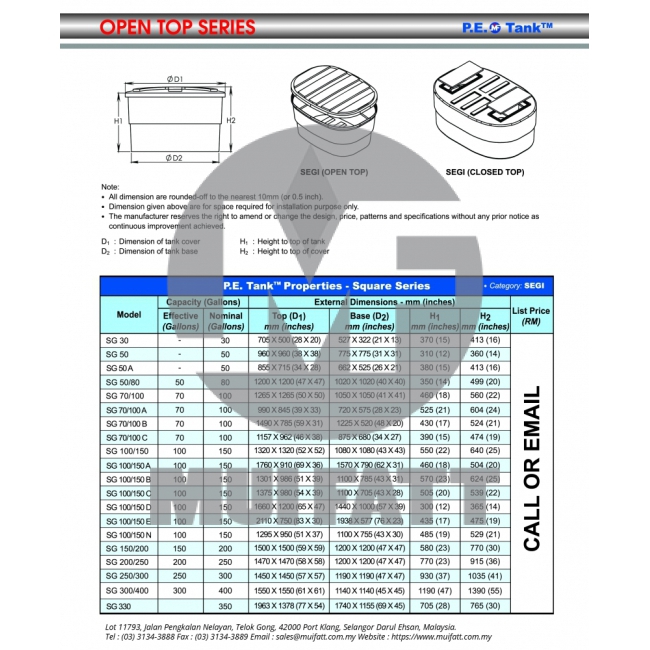

Specifications
| Model | SG 100-150 B (SKU PE-SG-100-150-B) |
|---|---|
| Series | SEGI, rectangular, open top |
| Capacity | 150 gal (681 L) nominal; 100 gal (454 L) effective |
| Top size (D1) | 1,301 x 986 mm |
| Base size (D2) | 1,100 x 785 mm |
| Height to top of tank (H1) | 570 mm |
| Height to top of cover (H2) | 624 mm |
| Material | 100% virgin food-grade LLDPE, UV-stabilised |
| Process | One-piece rotational moulding |
| Standard | MS 1225-1:2014, SIRIM QAS certified |
| Water authority | Registered with SPAN |
| Warranty | 8 years outdoor, 10 years indoor |
| Manufacturer | Mui Fatt Industries Sdn Bhd |
| Supplier | Mui Fatt Marketing Sdn Bhd (ISO 9001:2015 certified) |
Polyethylene Properties
| Density | 938 kg/m³ |
|---|---|
| Tensile strength | 16 MPa |
| Elongation | More than 200% |
| Flexural modulus | 650 MPa |
| Hardness (Shore D) | 62 |
| Softening point | 117 °C |
Questions About This Tank
How is the SG 100-150 B different from the SG 100-150?
It holds the same 150 gallons as the standard SG 100-150, but in a different shape: 1,301 x 986 mm across the top and 624 mm high. Choose it when the standard tank does not fit your space.
How heavy is it when full?
About 681 kg of water at nominal capacity, plus the tank itself. The base must be flat and support the whole bottom of the tank evenly.
Is it safe for drinking water?
Yes. It is made from food-grade LLDPE and SIRIM QAS certified to MS 1225-1:2014 for cold water storage, and registered with SPAN.
Berapa harga tangki air 150 gelen SG 100-150 B?
Harga bergantung kepada kuantiti, lokasi penghantaran dan aksesori yang diperlukan. Hubungi Mui Fatt untuk sebut harga terkini.
How should it be installed?
Place it on a level base that supports the whole bottom, join pipes with flexible couplings, keep it away from heaters and other heat sources, and always fit the cover.
Nearby SEGI Sizes
For installation, care and how to choose a size, see the full PE water tank guide →. Certificates are on our certificate page →
Contact Mui Fatt for a quotation: Get a Quote →
