MTD-150 Mui Tank Open Top Rectangular FRP Water Tank 150 Gallon (680 L)

150 gallon (680 L) MTD-150 one-piece open-top rectangular fiberglass water tank with lid, 48 in long x 36 in wide x 24 in high inside. Made by Y.T. Fibreglass to MS 1241-1:2011, SIRIM certified and SPAN registered.

SKU :

FRP-MTD-150

Quantity :
PDF download :
MTD-150 Mui Tank Open Top Rectangular FRP Water Tank 150 Gallon (680 L) Download PDF

MTD-150 Mui Tank Open Top Rectangular FRP Water Tank 150 Gallon (680 L)

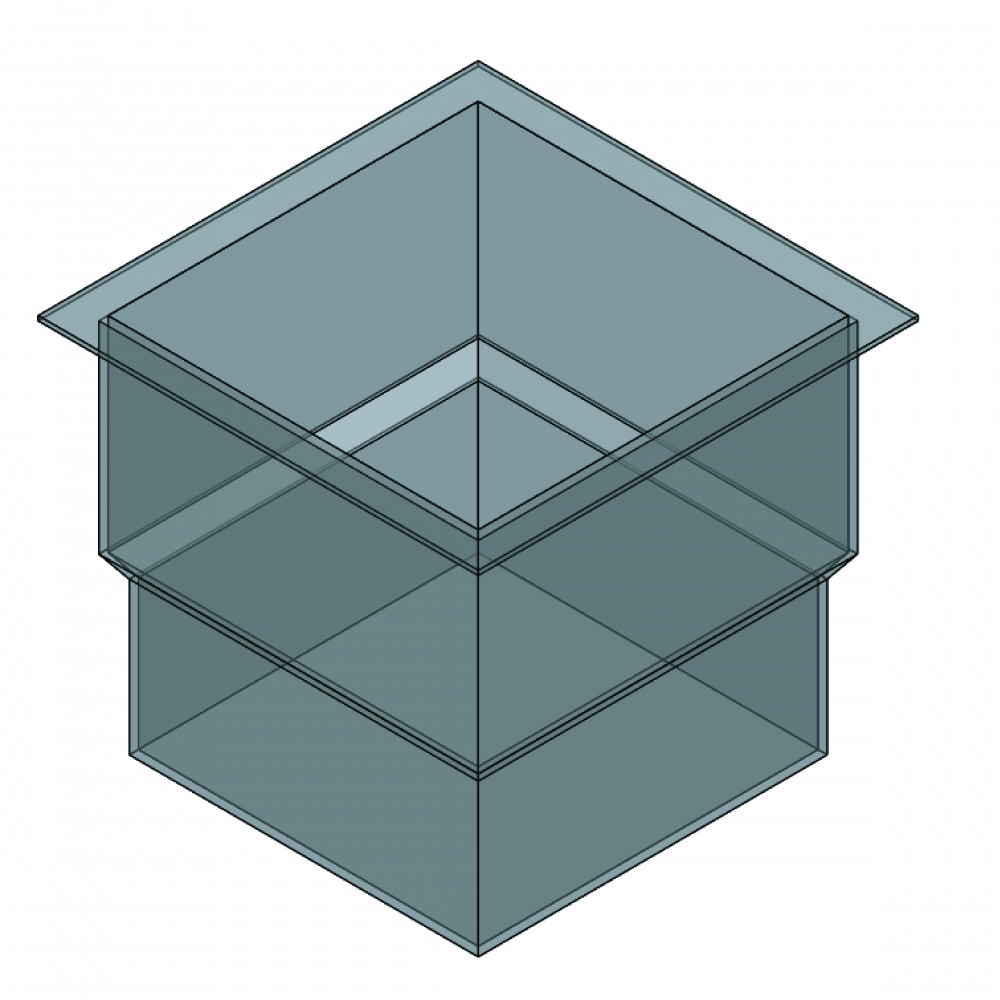

The MTD-150 is a one-piece rectangular open-top fiberglass (FRP) water tank with a lid. It holds 150 imperial gallons (680 litres) and its internal size is 48 in long x 36 in wide x 24 in high. It is made by Y.T. Fibreglass Industries Sdn Bhd to MS 1241-1:2011, SIRIM certified and registered with SPAN, for cold water storage in houses, shops and buildings. MTD models are the low, wide versions, only 24 inches high, for roof spaces with little headroom.

Ringkasan: Tangki air fiberglass (FRP) Mui Tank MTD-150, 150 gelen (680 liter), bentuk segi empat tepat terbuka dengan penutup. Satu keping tanpa sambungan, mengikut MS 1241-1:2011, diperakui SIRIM dan berdaftar dengan SPAN. Sesuai untuk tangki air rumah, kedai dan bangunan.

Specifications

Model MTD-150 (SKU FRP-MTD-150)
Type Open top, rectangular, with lid
Capacity 150 gal (680 L, 0.68 m³)
Internal size (L x W x H) 48 x 36 x 24 in (about 1,220 x 910 x 610 mm)
Material Fiberglass reinforced unsaturated polyester (FRP), non-toxic, rust free, UV resistant
Construction One piece, seamless
Standard MS 1241-1:2011, SIRIM certified
Water authority Registered with SPAN
Warranty 8 years outdoor, 10 years indoor (cold water storage)
Manufacturer Y.T. Fibreglass Industries Sdn Bhd
Supplier Mui Fatt Marketing Sdn Bhd (ISO 9001:2015 certified)

FRP Properties

Tensile strength 103 MN/m² (standard minimum 70)
Bending strength 182.4 MN/m² (standard minimum 100)
Elastic modulus in bending 7,906 MN/m² (standard minimum 6,000)
Barcol hardness 50
Water absorption 0.15% (standard maximum 1.0%)

Questions About This Tank

What does MTD-150 mean?

MT stands for Mui Tank and 150 is the capacity in imperial gallons: the MTD-150 holds 150 gallons, or 680 litres. The D in MTD marks the low, wide version.

How heavy is it when full?

About 680 kg of water when full, plus the tank itself. The support must be flat and level and carry the whole base evenly.

Is it safe for drinking water?

Yes. It is made to MS 1241-1:2011 for cold water storage and SIRIM certified, and registered with SPAN. The FRP is non-toxic and does not rust.

Can it be buried underground?

No. Open-top Mui Tanks are for above-ground use on a flat, level support. Closed-top Mui Tanks can be designed for underground use; ask us.

How should it be installed?

Place it on a flat, level support such as plywood or concrete that carries the whole base. Fit a backing plate outside the tank at the ball valve, use plastic or rubber washers and PTFE tape (no putty or jointing compound), cut pipe holes with a hole saw or sharp punch, support all pipes, and keep the tank away from heaters and lamps.

Berapa harga tangki air fiberglass 150 gelen MTD-150?

Harga bergantung kepada saiz, kuantiti, lokasi penghantaran dan aksesori yang diperlukan. Hubungi Mui Fatt untuk sebut harga terkini.

Nearby Square Mui Tank Sizes

For installation, care and how to choose between round, square and closed-top tanks, see the full Fiberglass Mui Tank guide →. Certificates are on our certificate page →

Note on units: All gallons on this page are imperial (UK) gallons. 1 m³ = 1,000 litres = 220 imperial gallons. A US gallon is smaller: 1 m³ is about 264 US gallons.

Want to know more about this range? Our free water tank selection guide shows every PE and fiberglass tank at a glance, in seconds, with no details needed: Open the water tank selection guide →

Contact Mui Fatt for a quotation: Get a Quote →
