MT-80 Mui Tank Open Top Rectangular FRP Water Tank 80 Gallon (360 L)
80 gallon (360 L) MT-80 one-piece open-top rectangular fiberglass water tank with lid, 39 in long x 31 in wide x 20 in high inside. Made by Y.T. Fibreglass to MS 1241-1:2011, SIRIM certified and SPAN registered.
MT-80 Mui Tank Open Top Rectangular FRP Water Tank 80 Gallon (360 L)

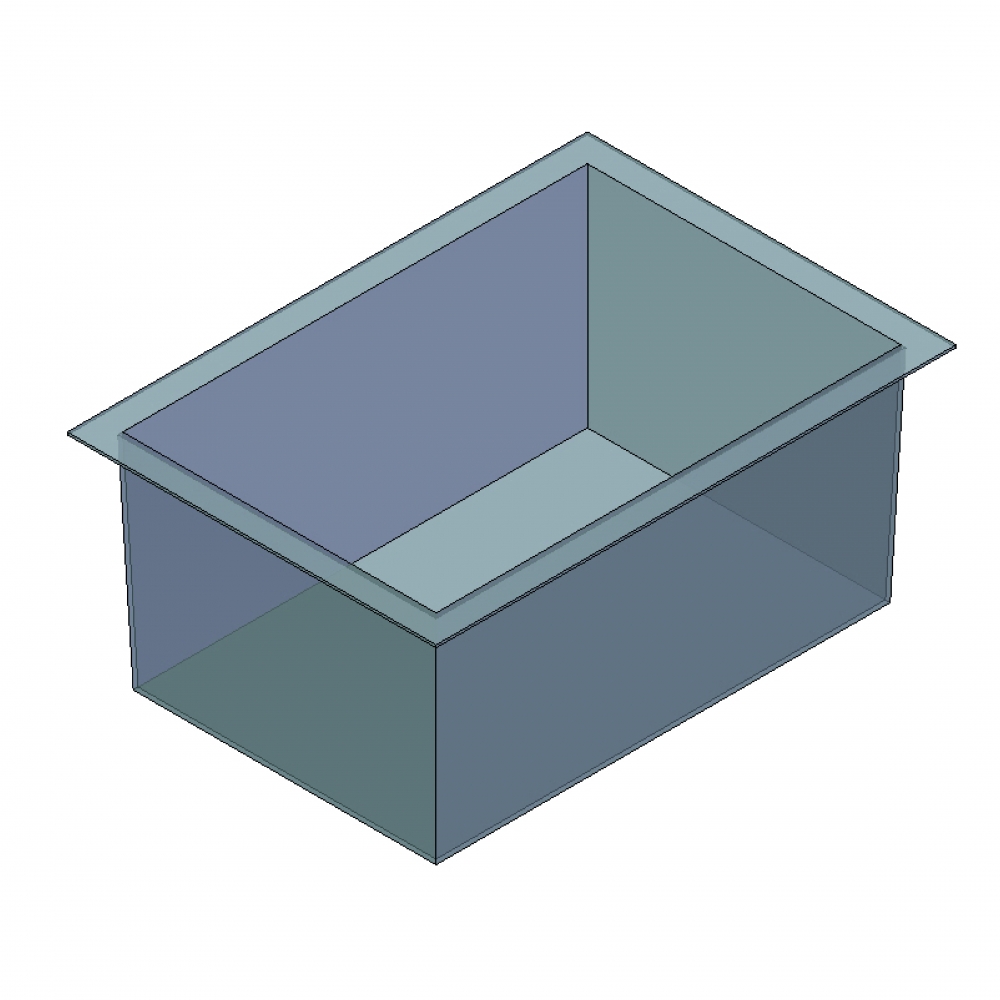

The MT-80 is a one-piece rectangular open-top fiberglass (FRP) water tank with a lid. It holds 80 imperial gallons (360 litres) and its internal size is 39 in long x 31 in wide x 20 in high. It is made by Y.T. Fibreglass Industries Sdn Bhd to MS 1241-1:2011, SIRIM certified and registered with SPAN, for cold water storage in houses, shops and buildings.
Ringkasan: Tangki air fiberglass (FRP) Mui Tank MT-80, 80 gelen (360 liter), bentuk segi empat tepat terbuka dengan penutup. Satu keping tanpa sambungan, mengikut MS 1241-1:2011, diperakui SIRIM dan berdaftar dengan SPAN. Sesuai untuk tangki air rumah, kedai dan bangunan.
Specifications
| Model | MT-80 (SKU FRP-MT-80) |
|---|---|
| Type | Open top, rectangular, with lid |
| Capacity | 80 gal (360 L, 0.36 m³) |
| Internal size (L x W x H) | 39 x 31 x 20 in (about 990 x 790 x 510 mm) |
| Material | Fiberglass reinforced unsaturated polyester (FRP), non-toxic, rust free, UV resistant |
| Construction | One piece, seamless |
| Standard | MS 1241-1:2011, SIRIM certified |
| Water authority | Registered with SPAN |
| Warranty | 8 years outdoor, 10 years indoor (cold water storage) |
| Manufacturer | Y.T. Fibreglass Industries Sdn Bhd |
| Supplier | Mui Fatt Marketing Sdn Bhd (ISO 9001:2015 certified) |
FRP Properties
| Tensile strength | 103 MN/m² (standard minimum 70) |
|---|---|
| Bending strength | 182.4 MN/m² (standard minimum 100) |
| Elastic modulus in bending | 7,906 MN/m² (standard minimum 6,000) |
| Barcol hardness | 50 |
| Water absorption | 0.15% (standard maximum 1.0%) |
Questions About This Tank
What does MT-80 mean?
MT stands for Mui Tank and 80 is the capacity in imperial gallons: the MT-80 holds 80 gallons, or 360 litres.
How heavy is it when full?
About 360 kg of water when full, plus the tank itself. The support must be flat and level and carry the whole base evenly.
Is it safe for drinking water?
Yes. It is made to MS 1241-1:2011 for cold water storage and SIRIM certified, and registered with SPAN. The FRP is non-toxic and does not rust.
Can it be buried underground?
No. Open-top Mui Tanks are for above-ground use on a flat, level support. Closed-top Mui Tanks can be designed for underground use; ask us.
How should it be installed?
Place it on a flat, level support such as plywood or concrete that carries the whole base. Fit a backing plate outside the tank at the ball valve, use plastic or rubber washers and PTFE tape (no putty or jointing compound), cut pipe holes with a hole saw or sharp punch, support all pipes, and keep the tank away from heaters and lamps.
Berapa harga tangki air fiberglass 80 gelen MT-80?
Harga bergantung kepada saiz, kuantiti, lokasi penghantaran dan aksesori yang diperlukan. Hubungi Mui Fatt untuk sebut harga terkini.
Nearby Square Mui Tank Sizes
For installation, care and how to choose between round, square and closed-top tanks, see the full Fiberglass Mui Tank guide →. Certificates are on our certificate page →
Note on units: All gallons on this page are imperial (UK) gallons. 1 m³ = 1,000 litres = 220 imperial gallons. A US gallon is smaller: 1 m³ is about 264 US gallons.
